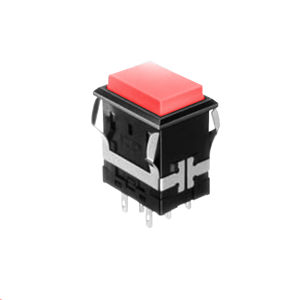

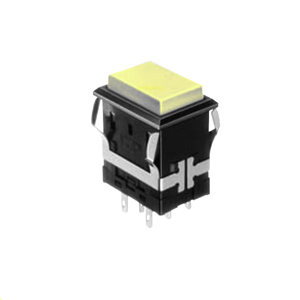

This Miniature Illuminated Push Button Switch features a rectangular plastic actuator with full-face LED illumination. It has a momentary or latching function and a precision snap action. Accessories also available.
Key Features:
| Function | Plastic Push Button Switch, Momentary Switch, Latching Switch |
|---|---|
| Illumination | |
| Single LED options | |
| Terminal Options | |
| Switch Circuit | |
| Depth (mm) | |
| Electrical Operations | |
| Mechanical Operations | |
| Product Series |

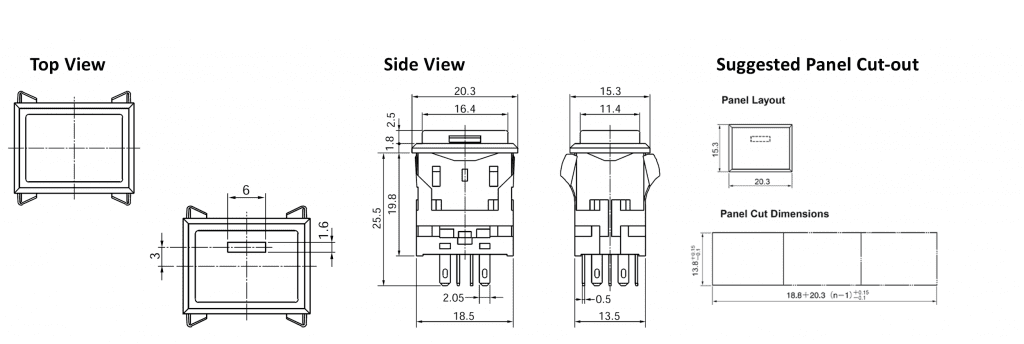

FH Series specifications
| Contact | Silver contact (gold-plated) | Cross-bar contact |
| Electrical rating | AC 125V, 250V 3A (resistive) | AC125V 0.1A, DC30V 0.1A (resistive) |
| Insulation resistance | More than 100MΩ at 500V DC | |
| Dielectric strength | 1 000V AC RMS between NC and NO terminal
1500V AC RMS between terminals and ground 50/60Hz for 60sec. at normal ambient temperature and humidity |
600V AC RMS between NC and NO terminal
1500V AC RMS between terminals and ground 50/60Hz for 60sec. at normal ambient temperature and humidity |
| Contact resistance | Less than 30mΩ (initial) at DC6V 1A | Less than 50mΩ (initial) at DC6V 0.1A |
| Mechanical life | Momentary Action: more than 500,000 operations
Alternate Action: more than 200,000 operations |
|
| Electrical life | More than 30,000 operations at max. rated load | |
| Ambient temperature | -15°C~+50°C | |
| Ambient humidity | 80% RH (max) | |
