RJS-TL Touchless Switch

show blocks helper

IP Rating
IP Rating Dust & Water Proof Rating / Ingress Rating

  • IP40 (front)
  • IP68 (front)

Panel Cut-out

  • Ø 28mm

# of NO Contacts

# of NC Contacts

The Infrared touchless switch is a combination of infrared technology and LED illumination, along with IP rating. See the range of panel mount, Infrared switch / Exit Buttons & Devices. Our no touch, infrared buttons are available as momentary push button and IP rated switches ideal for door entry/exits for a range of public and private commercial spaces. Metal panels for the RJS-TLS switch are available in a range of sizes and shapes.

What are Infrared touchless switches?

Infrared Touchless switches are switches which can be activated without contact/touching. The TLS touchless switch uses a proximity sensor switch, an example of infrared technology, to detect heat radiation from 800nm – 1mm.

RJS-TLSW-0 / RJS-TLSW-68

RJS-TLSW-0/RJS-TLSW-68 - no touch LED switch with ring LED illumination, IP RATED, voltage and Amps. RJS Electronics Ltd.

The RJS TLSW-0 is no touch button/ infrared switch which has multiple functions to enable this. Our RJS-TLSW-0 is a combination of the infrared proximity switch with a momentary or delay timer feature. The no-touch button is ø28mm, select from 8 – 24VDC.

LED Illumination

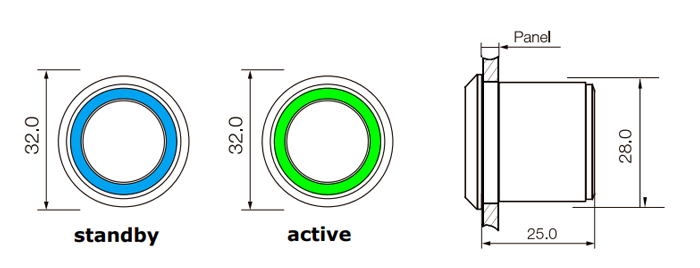

RJS-TLS RANGE - LED illumination options, standby v. active. RJS Electronics Ltd.



These no-touch LED switches use ring LED illumination to indicate their status. Blue LED illumination indicates when the switch/device/operation is in standby mode (drawing 30mA) and Green LED illumination will indicate when active (drawing 50mA).

IP Rating

The RJS-TLS-0 switch is IP rated, complies with standard IP40/ IP68.

IP Ratings explained by rjs electronics Lt. IP 67, IP68.

RJS-TL1/3/4/5/6 (RJS-TLS switch with plate).

Our RJS-TL1/3/4/5/6 is the combination of the (Infrared switch) no touch button with the plate. Select from the following dimensions and styles and then select from switch function from momentary OR Adjustable Delay Version.

All the RJS-TL[X] plates are available in two options:

  • 1.7mm Stainless steel (S)
  • 4mm Aluminium (A) plate

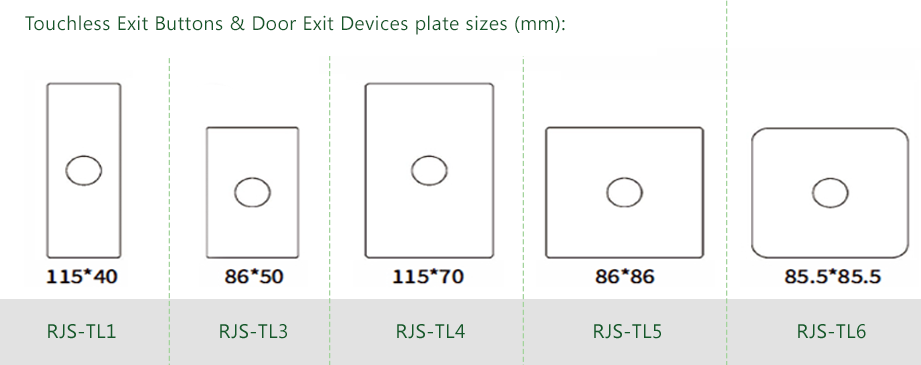

RJS-TLS SWITCH - PLATE PANELS SIZING MM



Key features:

  • Infrared Switch
  • Timer delay
  • Momentary function
  • Proximity Switch
  • No touch button
  • Bi-colour LED illumination to signal use.
  • Easy to install with no programming required.
