RJS-2M-M6-SPDT

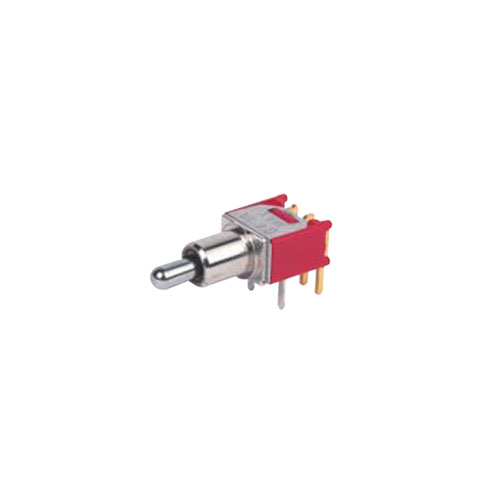

This Sub-Miniature PCB Toggle Switch has right angle mounting and SPDT terminals. It can have 2 or 3 positions and is available with bushing options.

Key Features:

Sub-Miniature PCB toggle switch
Right angle mounting
2 position or 3 position
SPDT
Contact rating up to 3A
Full 2M Series

Additional information

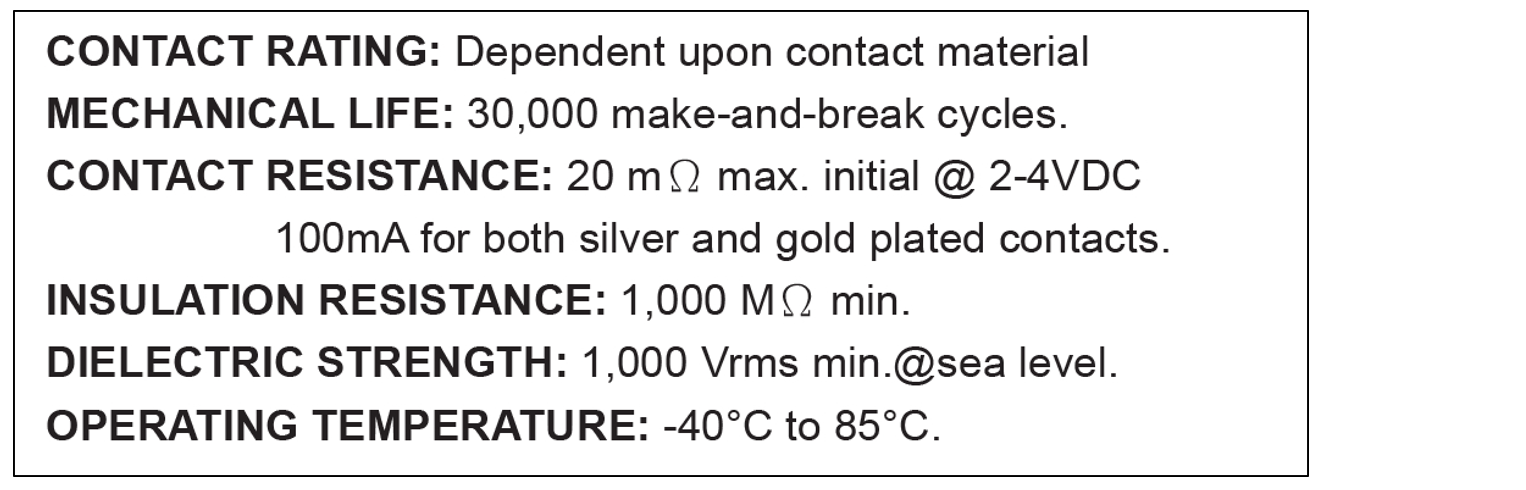

Specifications

Function	Toggle Switch
Mechanical Operations	30,000 cycles
Contact Resistance	20 m Ω max. initial @ 2-4VDC 1 00mA for both silver and gold plated contacts.
Dielectric Strength	1,000 Vrms min.@sea level.
Insulation Resistance	1,000 MΩ min.
Product Series	Toggle Switches: 2M

Contact Rating	Dependent upon contact material
Mechanical Life	30,000 cycles
Contact Resistance	20 m Ω max. initial @ 2-4VDC 100mA
Insulation Resistance	1000 m Ω min.
Dielectric Strength	1000 vrms min. @ sea level
Operating Temperature	-40°C to 85°C
