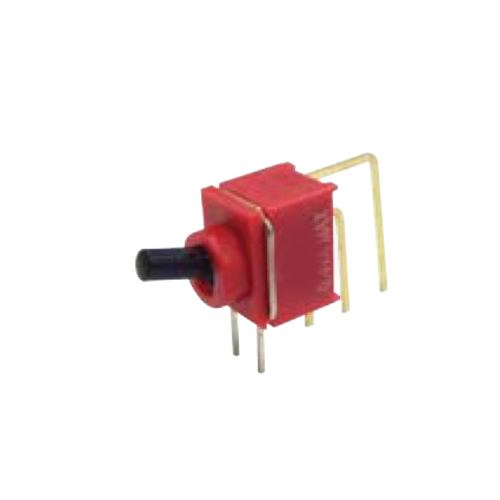

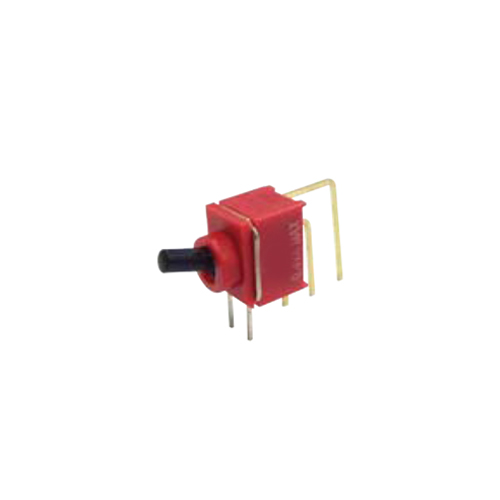

This Ultra-miniature PCB Toggle Switch has a vertical right-angle configuration and can have 2 or 3 positions. It is IP67 rated for resistance to water and dust.
Key Features:
| Function | |
|---|---|
| IP Rating | |
| Illumination | |
| Dielectric Strength | 500 Vrms min. @ sea level. |
| Insulation resistance: | 500 mΩ min. |
| Contact Resistance | Below 100m Ω typ. initial @2-4V DC, 100 mA |
| Contact Rating | 0.4 VA max. @20V AC or DC max. |
| Mechanical Operations | |
| Product Series |
|
Mechanical Life |
40,000 cycles |
|
Contact Rating |
0.4 VA max. @ 20 V AC or DC max. |
|
Contact Resistance |
Below 100 m Ω typ. Initial @ 2-4 V DC, 100 mA |
|
Insulation Resistance |
500 M Ω min. |
|
Dielectric Strength |
500 vrms min. @ sea level |
|
Operating Temperature |
-30°C to 85°C |
|
Degree of Protection |
IP67 rated |
