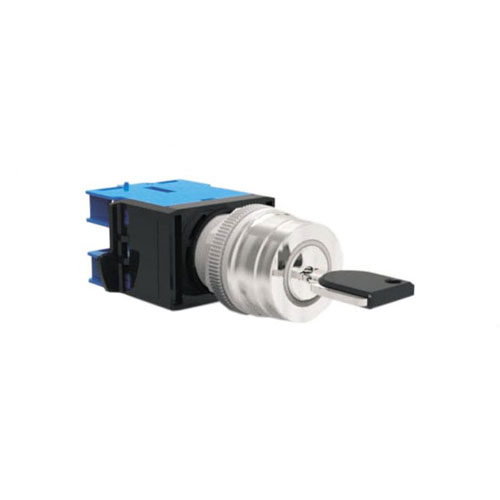

This stainless steel panel mount Key Lock Switch features a round cap that is non-illuminated. It has a 22mm panel cut out and a terminal block.
| Terminal Options | |
|---|---|
| Illumination | |
| Cap / Actuator Shape | |
| Function |
| Operating Temperature | -20°C to +55°C |
| Operating Humidity | 45-85% |
| Store Temperature | -45°C to +80°C |
| Store Humidity | 95% RH |
| Insulation Resistance | 100MΩ
500VDC |
| Dielectric Strength | 2,500VAC/1
2,000VAC/1 |
| Vibration Resistance | 10-500Hz 0.35mm 50m/s2
5-55Hz 0.5mm 30Hz 1.5mm |
| Shock Resistance | 150m/s2
1000m/s2 100m/s2 |
| Mechanical Life | 100,000 / 250,000 / 1,000,000 / 5,000,000 |
| Electrical Life | 50,000 / 100,000 |
