Ø22mm Antivandal Switch with No LED Illumination
Key Features:
- Ø 22mm Panel cut out
- Momentary
- Non-illuminated
- 3V-24V DC LED
- IP67 rated (from the front)
- SPDT
Applications:
- Automotive
- Boat building & Marine
- Security
- Door entry
- Medical
SKU: 16220 Categories: 22mm, Metal Pushbutton Switches

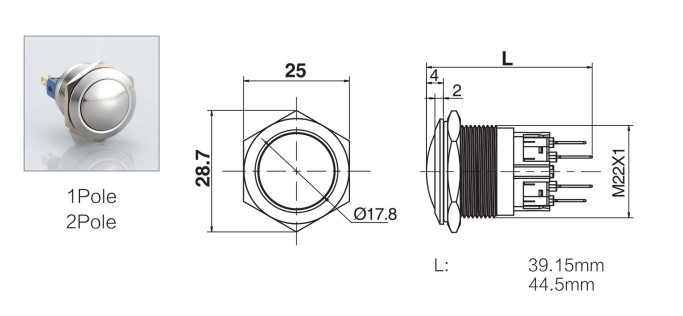

Drawing

Example Part Numbers
RJS103-22-H-BS-67J
RJS103-22-H-BLK-67J
RJS103-22A-H-BS-67J
RJS103-22A-H-BLK-67J
