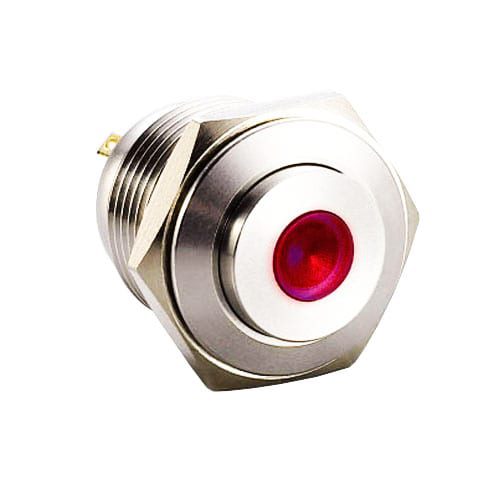

RJS1N1-19L-H-D~67J

19mm antivandal switch with dot LED illumination.

Key Features:

  • Ø 19mm Panel cut out
  • Momentary
  • Dot LED illumination
  • Single/ Bi-colour LED options
  • IP67 rated (from the front)
  • SPDT
  • 3V-24V DC LED

Applications

  • Automotive
  • Boat building & Marine
  • Security
  • Door entry
  • Medical

SKU: 409 Categories: ,
Configuration

Terminal Options

Illumination

Cap / Actuator Shape

,

Function

Panel Cut-Out Diameter

IP Rating

Product Series

Switch Action

# NO Contacts

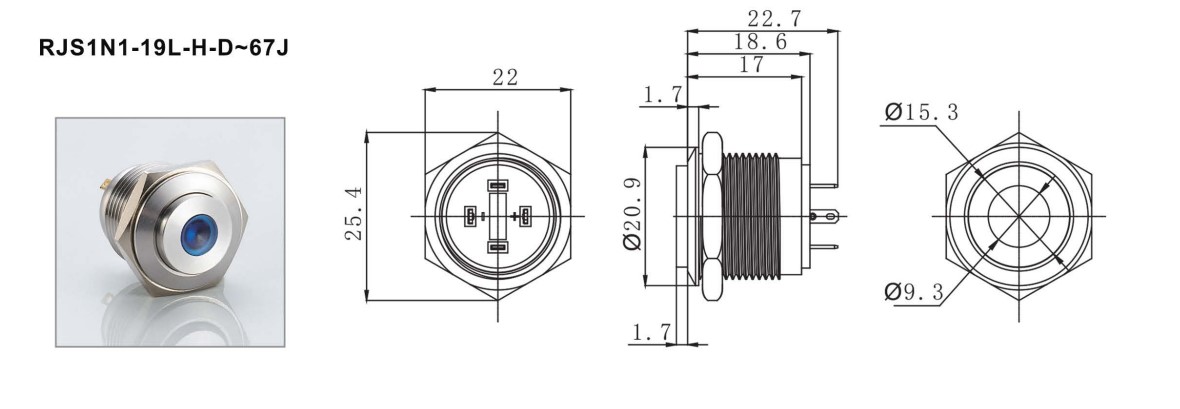

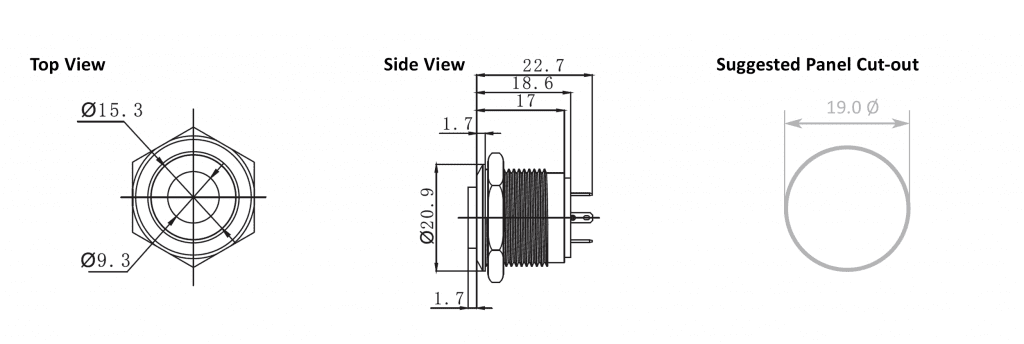

Drawing

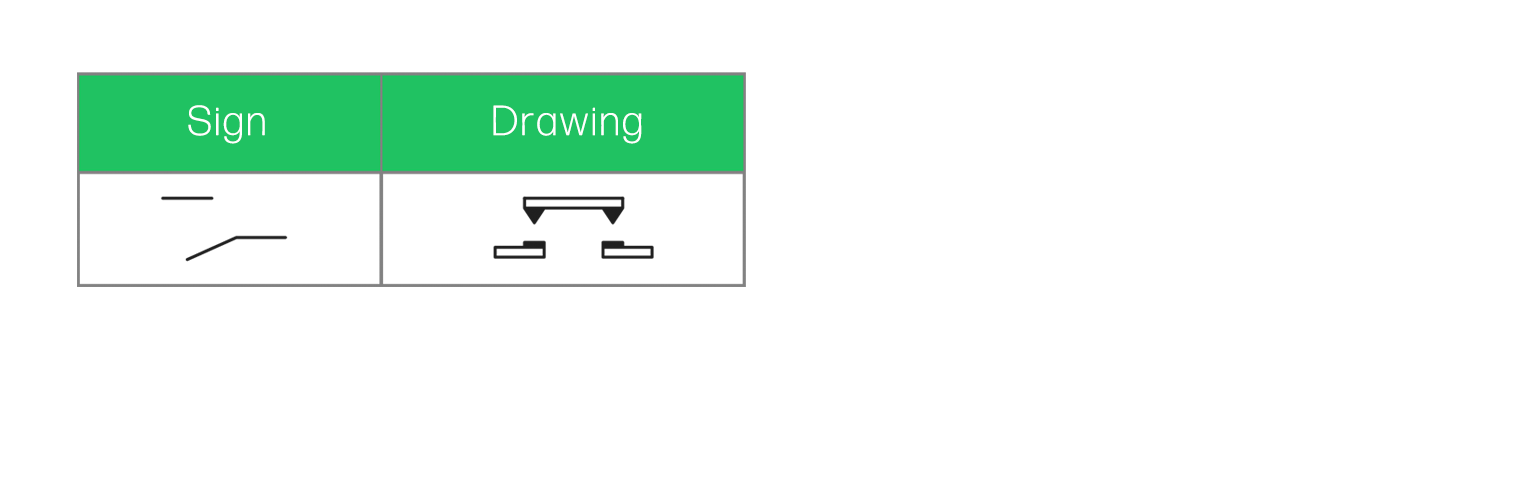

Circuit

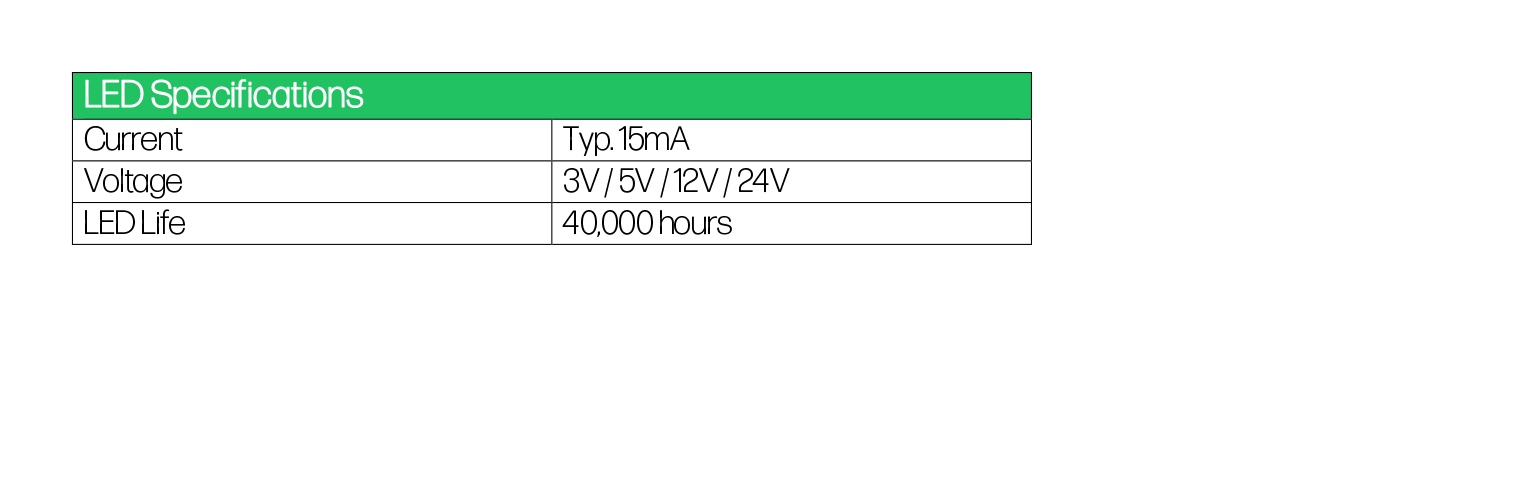

Mechanical & Electrical Specs
