Products

RJS-TL6

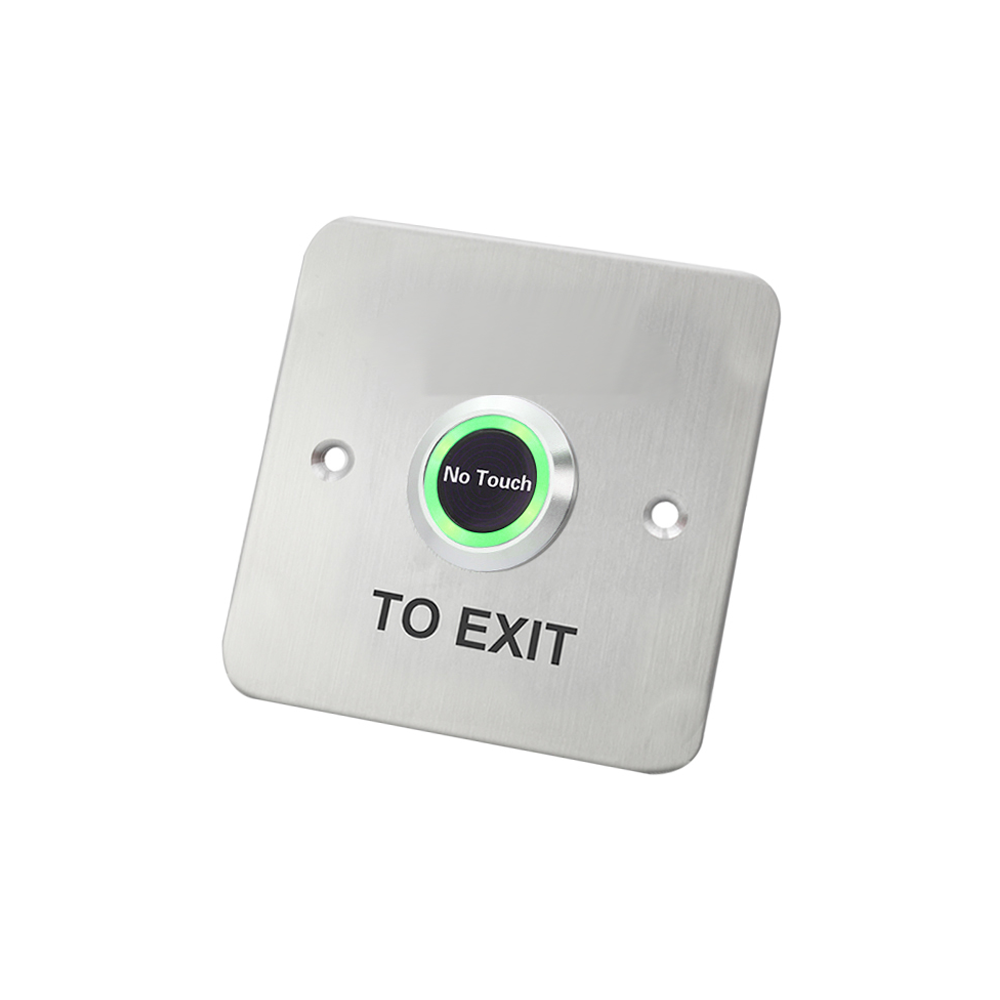

Touchless, infrared switch with a panel

  • Infrared Switch
  • Illuminated Touchless exit switch with Plate 85.5*85.5*25mm
  • Momentary OR Adjustable Delay Version
  • Supplied with 1.7mm Stainless steel (S) or 4mm Aluminium (A) plate
  • Standard sensing distance 0-10cm
  • “Sensitive” sensing distance 3-15cm
RJS-TLSW-0Switch Only Version Click Here
RJS-TL6-S/AMomentary Version
RJS-TL6D-S/AMomentary Version “Sensitive Distance”
RJS-TL6T-S/AAdjustable Delay Version

Applications:

  • Door Entry and Security
  • Medical Environments
  • Industrial Controls
  • Retail Spaces
Product Series

,

Function

, , , ,

Dimensions

85.5*85.5*25mm

Product Material Options

,

Current

DC12~24V 500mA

Configuration

,

Operating Temperature

10‐55℃ (14-131F)

Operating Humidity

0-95% (non-condensing)

Electrical Operations

IP Rating

,

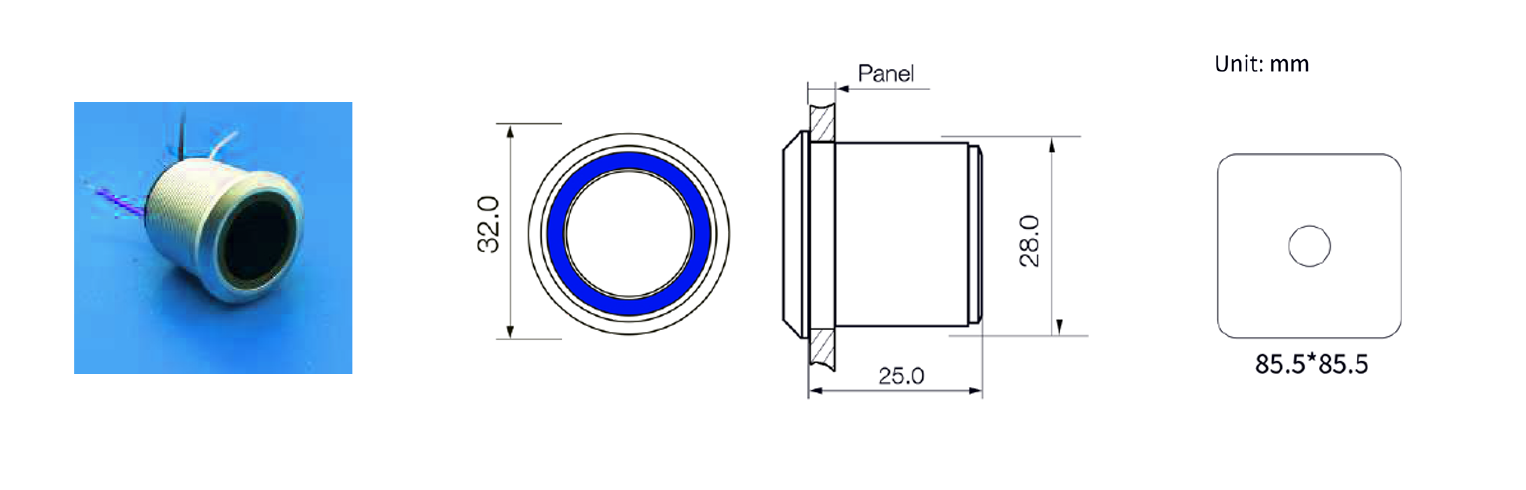

Drawing

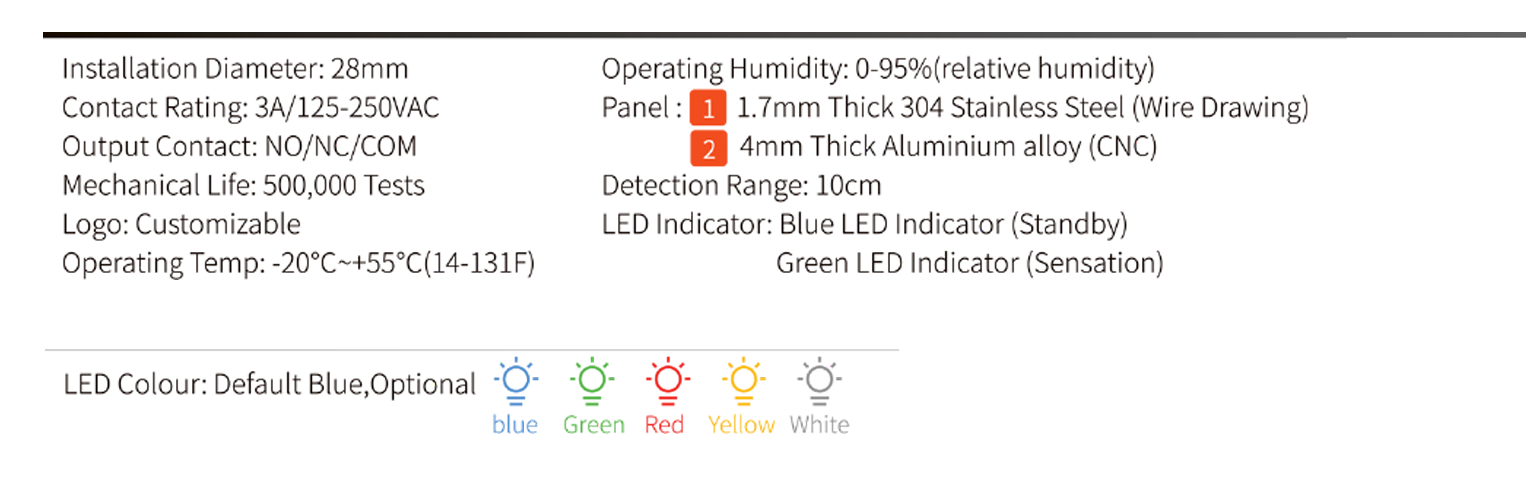

Mechanical & Electrical Specs
