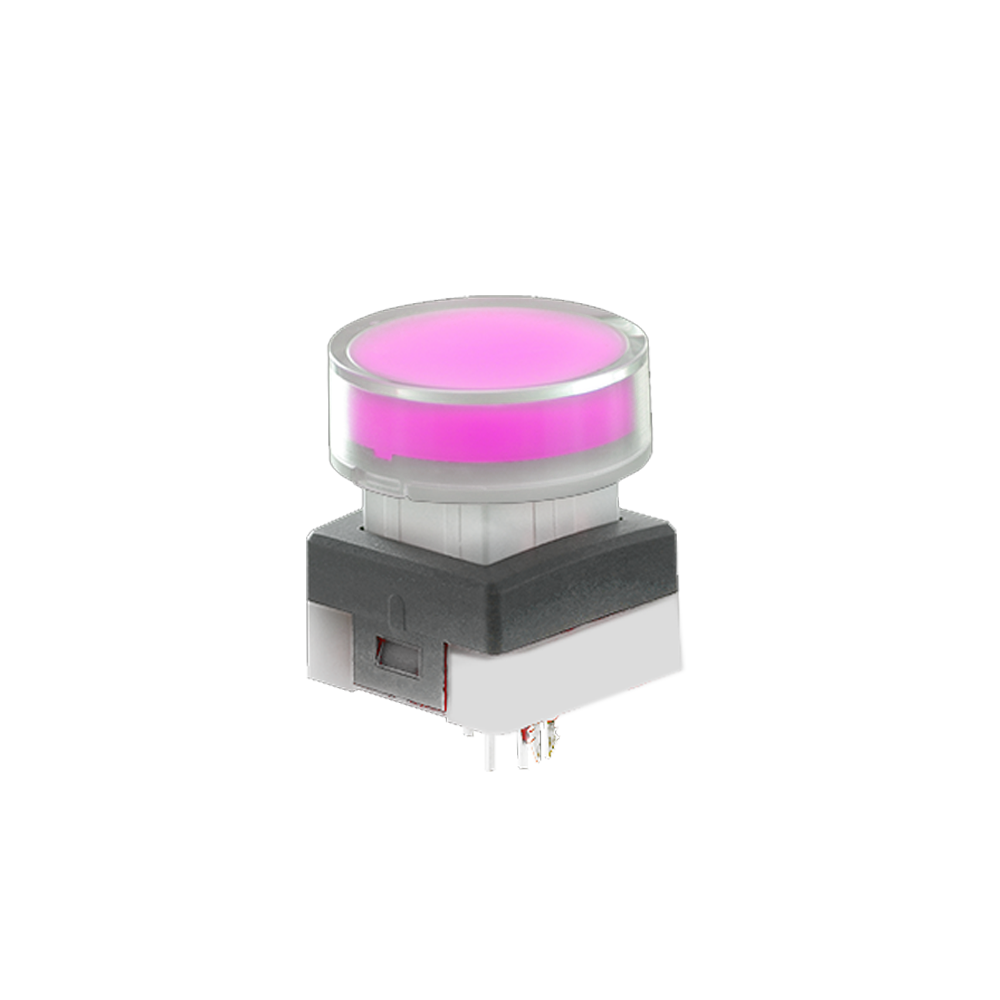

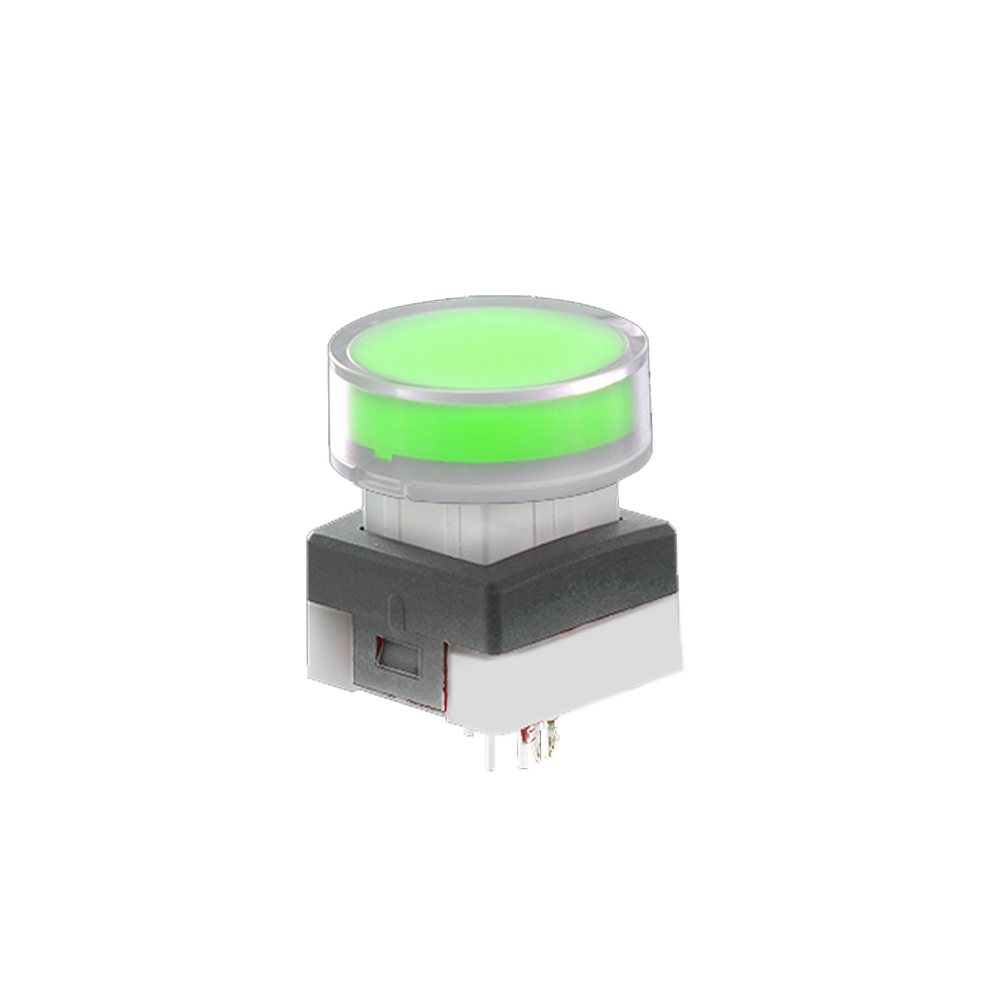

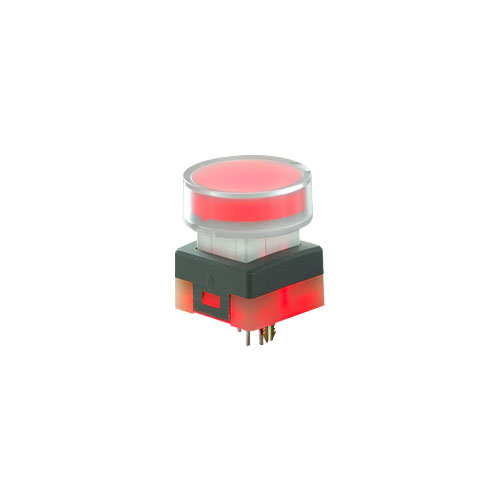

SPG4 Round

This PCB Push Button Broadcast Switch features full face LED illumination, momentary function and a silent push. Choose single, bi-colour or RGB illumination. Compatible with Smart Caps.

Key Features:

  • LED illuminated broadcast switch
  • Momentary function
  • Single/Dual/RGB LED illumination
  • 18.5mm round cap
  • Silent push

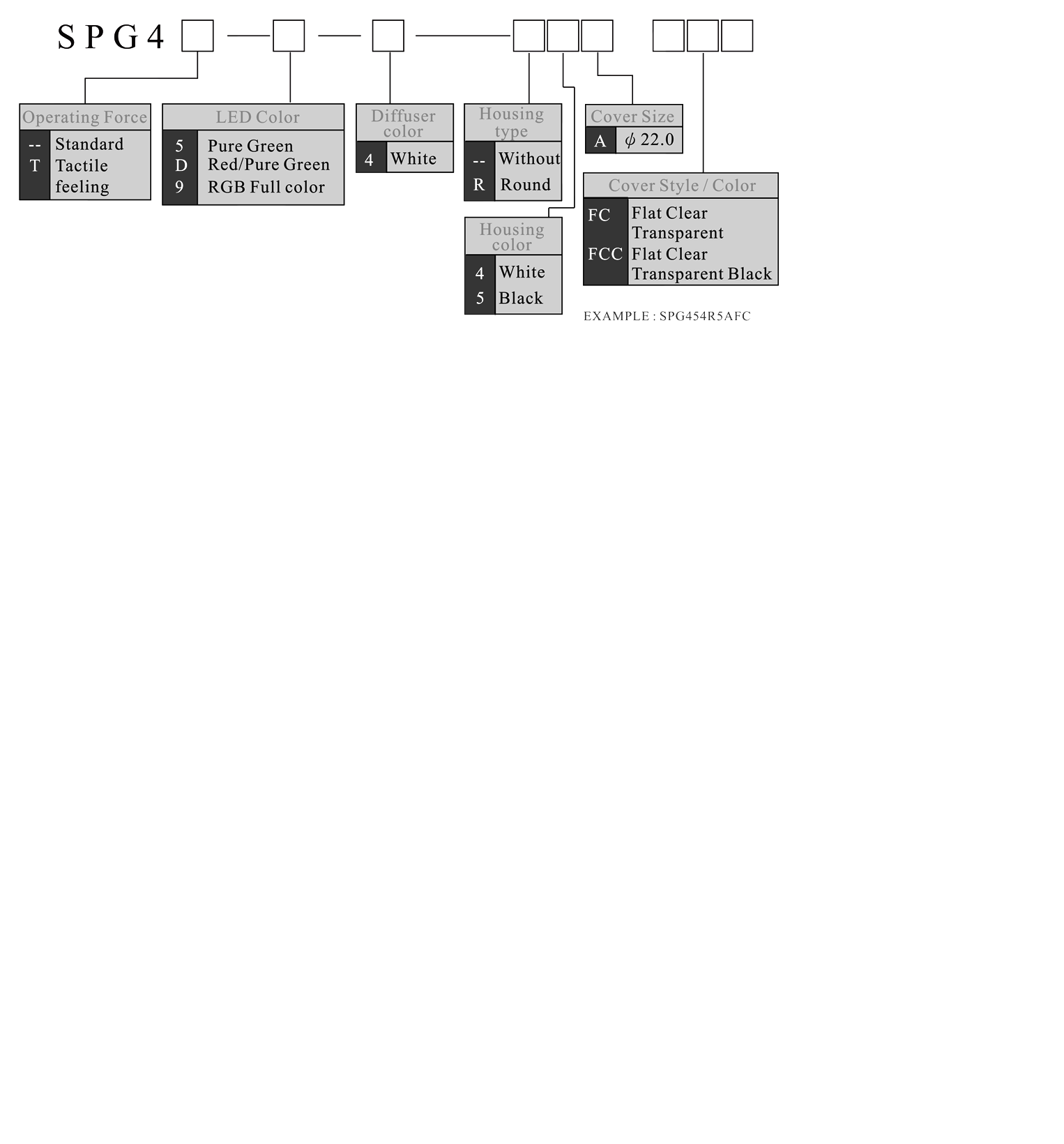

Product Series

Configuration

Single LED options

, , , ,

Cap Dimensions (mm)

Function

Multi-Colour LED Options

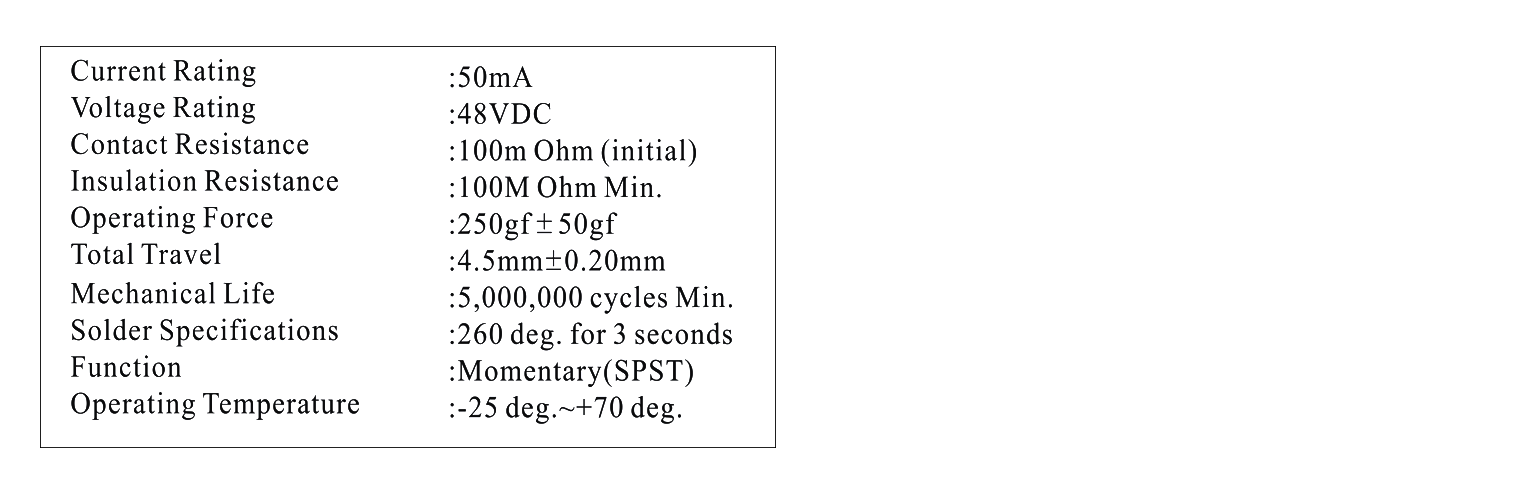

SPG-Z Series Specification



Current rating 50mA
Voltage rating 48VDC
Contact resistance 100mOhm max.(initial)
Insulation resistance 100MOhm min
Operating force 250gf + 50gf (S1~4)
Total travel 4.5mm + 0.20mm
Mechanical life 5,000,000 cycles min
Solder specifications 260 deg for 3 seconds

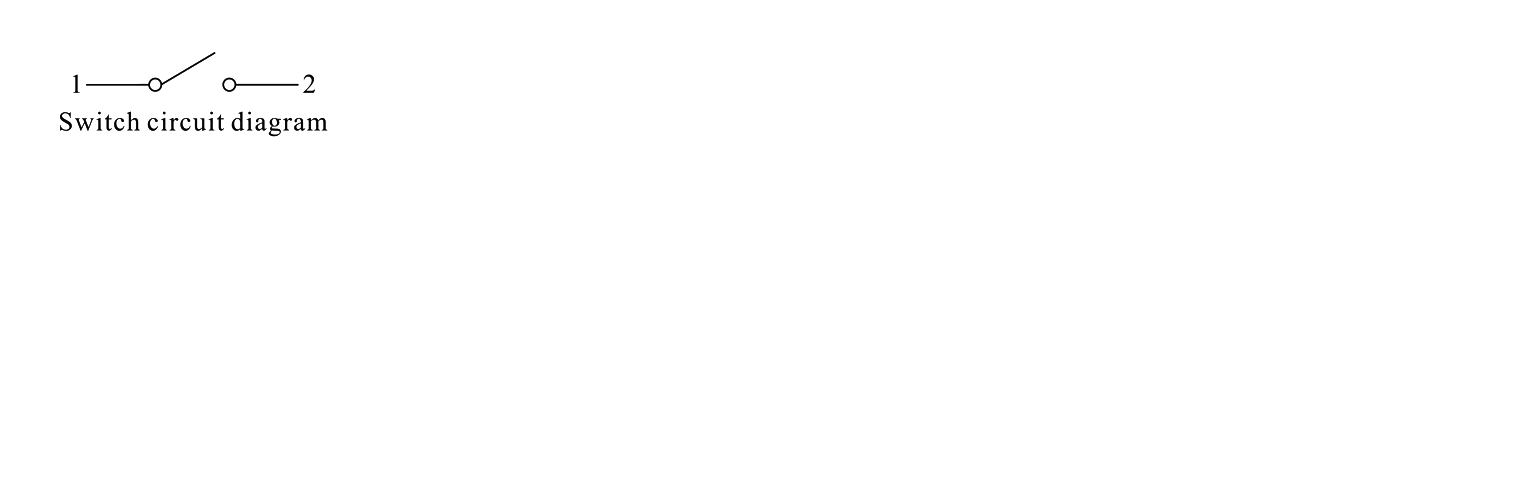

Function Momentary (SPST)
Operating temperature -25deg~+70deg

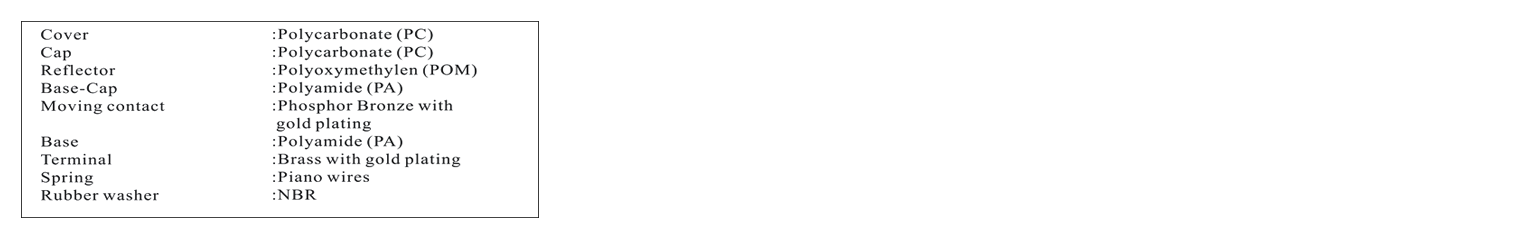

SPG-Z Series Materials



Cover Polycarbonate (PC)
Cap Polycarbonate (PC)
Reflector Polyoxymethylene (POM)
Base cap Polyamide (PA)
Moving contact Phosphor bronze with gold plating
Base Polyamide (PA)
Terminal Brass with gold plating
Spring Piano wires
Rubber washer NBR

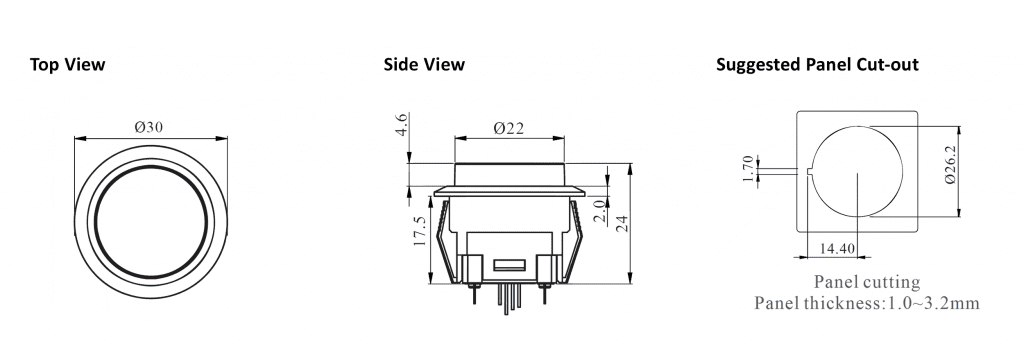

Broadcast switch with led illuminated button, technical drawing, rjs electronics ltd
