15mm², 17.4mm², 22mm SPDG Push button switch

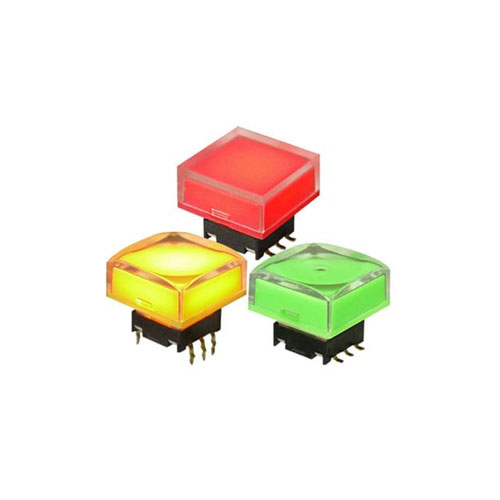

This PCB Push Button Switch is available in 15mm, 17.4mm or 22mm and features a tactile click. Choose single, bi-colour or RGB LED illumination. This switch has a momentary function and is compatible with Smart Caps.

Key Features:

  • LED illuminated tact switch
  • SMT mount push button switch
  • Momentary function
  • 15mm,17mm and 22mm
  • Single/bi-colour/ RGB LED illumination
  • Compatible with Smart Caps.
  • Tactile switch
Product Series

Single LED options

, , , , ,

Illumination

, , ,

Configuration

Terminal Options

,

Orientation

Function

,

Multi-Colour LED Options



SPD-Z Series Specification



Circuit SPST
Current rating 50mA @ 12VDC
Contact resistance 100mOhm max.(initial)
Insulation resistance 100MOhm min
Operating force 220gf + 50gf (S1~4)
Total travel 0.3mm + 0.1mm
Mechanical life 1,000,000 cycles min
Operating temperature -25deg~+60deg
Solder specifications 250 deg


SPD-Z Series Materials



Cover Polycarbonate (PC)
reflector Polyamide (PA)
Base LCP
Action dome Stainless steel with silver plating
Terminal Phosphor bronze (PBS) with gold plating

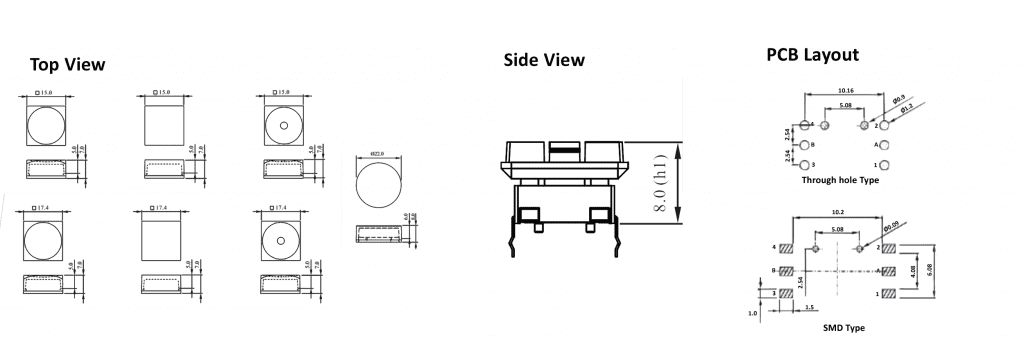

Drawing of pcb led push button switch, rjs electronics ltd
