1M - VS5- DPDT - Toggle Switches, PCB switches. RJS Electronics Ltd

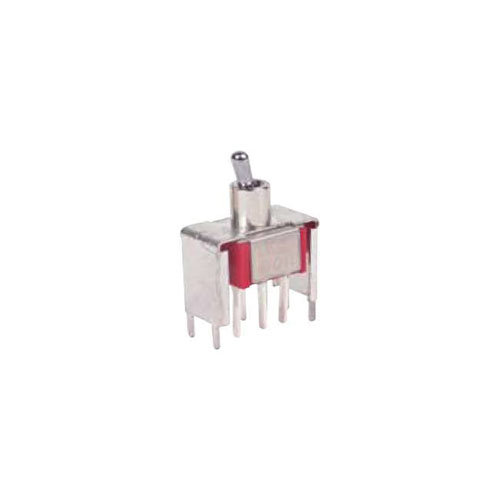

1M-VS5-DPDT

This Miniature PCB Toggle Switch features vertical bracket mounting and DPDT terminals. It is available with bushing and splash-proof options and can have 2 or 3 positions.

Key Features:

Miniature PCB toggle switch
Vertical bracket mounting
2 position or 3 position
DPDT
Contact rating up to 5A
Full 1M Series

Additional information
Specifications

Function	Toggle Switch
IP Rating	IP67 (front)
Mechanical Operations	40,000 make-and-break cycles
Terminal Options	Quick Connect, Wire Wrap, PCB Terminals (THT), Solder Lug
Contact Resistance	10 mΩ max. initial @ 2-4VDC 100mA for both silver and gold plated contacts.
Insulation Resistance	1000 Vrms min. @ sea level.
Product Series	Toggle Series: 1M

Contact Rating	Dependent upon contact material
Mechanical Life	40,000 cycles
Contact Resistance	10 m Ω max. initial @ 2-4VDC 100mA
Insulation Resistance	1000 m Ω min.
Dielectric Strength	1000 vrms min. @ sea level
Operating Temperature	-40°C to 85°C
