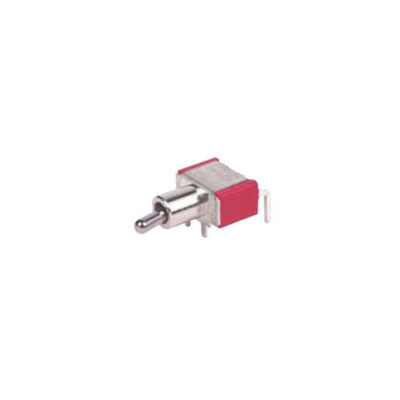

The 1M Toggle switch series is a range of PCB and Panel mount, miniature Toggle switches. These Toggle switches have a lever and housing, available in horizontal, vertical and right-angle position. The 1M Toggle switches available with contact rating up to 5A and available in switch configuration SPDT – 4PDT function. For more mechanical specifications please download the datasheet to find out more about our 1M Toggle switch series. switch range is available with 15-20A and in SPST – 4PDT functions.

What are toggles?

Toggle switches are both PCB and Panel Mount electro-mechanical components used for a wide range of electronic applications and devices. Toggle switches are simple and effective switches that can switch a device on and off or control a function.

A toggle switch is a switch with housing and with a long lever. The lever is designed to pressed/flicked to activate a function. Traditionally, Toggle switches are on-on, on-off, on-off-on and momentary switches.

How do toggle switches work?

Toggle switches are easy to use, the lever is flicked up or down. This indicated when the electronic device or function is operating.

Types of Toggle Switches?

Toggle Switches are available in a range of sizes to suit your device. We have filtered our Toggle switches into the following categories to make it easy to locate the Toggle switch you are looking for.

  • Standard size Toggle Switches
  • Miniature Toggle Switches
  • Sealed Waterproof (IP Rated from the front) Toggle Switches
  • Ultra-miniature Toggle Switches
  • Sub-miniature Toggle Switches

Key features of 1M

  • Miniature Toggle Switch
  • Vertical / Horizontal / Right-angle positioning
  • Contact rating up to 5A

Specifications:

Materials:

Many of our Toggle switches are constructed with conductive materials including brass, copper, silver and often plated with gold and nickel.

Toggle Switch Configuration:

configuration rjs electronics ltd, SPD, DPDT, RJS Electronics Ltd

Our PCB and Panel Mount Toggle switches support a range of poles and throws. Our switches are commonly referred to as single pole and double pole which relates to the number of circuits that are controlled by the switch. The throw defines how many positions the switches poles can be connected to.

SPSP – single pole single throw

SPDT – single pole double throw

DPST – double pole single throw

DPDT – double pole double throw

3PDT – Three poles double throw

4DPDT – Four poles double throw

SPST switches make or break the connection of a single conductor in a single branch circuit. This switch type typically has two terminals and is referred to as a single-pole switch.

SPDT  switches make or break the connection of a single conductor with either of two other single conductors. These switches usually have three terminals and are commonly used in pairs. SPDT switches are sometimes called three-way switches.

DPST  switches make or break the connection of two circuit conductors in a single branch circuit. They usually have four terminals.

DPDT  switches make or break the connection of two conductors to two separate circuits. They usually have six terminals are available in both momentary and maintained contact versions.

normally open (NO)  switch has contacts that are open or disconnected in their unactuated (normal) position. A normally closed (NC) switch has contacts that are closed or connected in their unactuated (normal) position.

The switches are electrical switches available in different configurations including two-position On/Off, three-position, momentary, maintained and more.

Momentary ON – describes contacts that interrupt the circuit when the switch is in the normal, open (NO) position.

Momentary OFF – describes contacts that establish a circuit when the switch is in the normal, closed (NC) position.

Alternate ON/OFF – describes a switch where the first actuation turns the switch ON and the second actuation turns the switch OFF.

Toggle Switch accessories:

Our Toggle Switches are available added accessories if required for your project. Toggle switch accessories are ideal for added protection or simply a mechanism for do-not-press unless emergency.

  • Switch guards

Toggle switch guards are predominantly used for protecting the switch, and preventing the toggle from accidentally being turned off or on. The solid casing covers the toggle, guarding it against accidental movements.

toggle switch accessories - switch guard, rjs electronics ltd

  • Rubber boot

A toggle switch rubber boot is used as protection against dust and moisture. The boot encloses the base creating a dust-tight seal.

toggle switch rubber boot, rjs electronics ltd

Application:

Our Toggle switches are ideal for a range of domestic and commercial applications, tailored for a variety of industries. We have supplied to a range of industries and application used for Audio & Broadcast, Industrial Control units, Beauty and Holistic therapy devices including SPA equipment, Air conditioning units and conveyor belts and vehicles for transporting goods, machinery and medical equipment.
