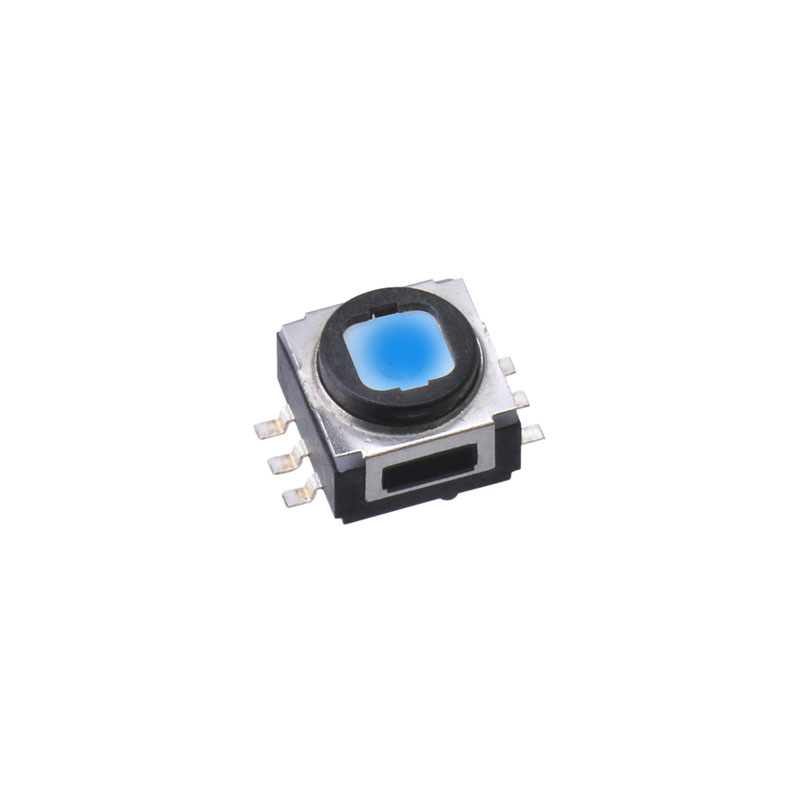

TP621TML led illuminated tactile switch, led switches, tactile switch, rjs electronics ltd

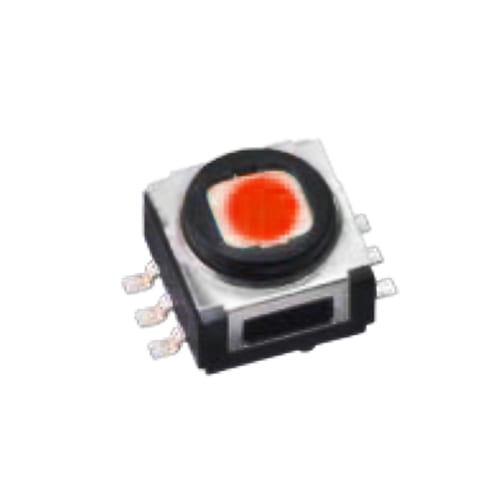

TP621TML - Image 2

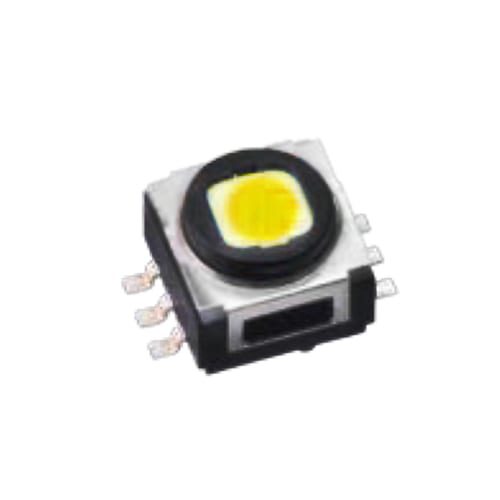

TP621TML - Image 3

Tact switch, tactile push, PCB push button, RJS Electronics LTD.

TP621TML

Tactile LED illuminated button switch. Equipped with a single or bi-colour LED with a rating of 50mA 12VDC. Its compact design allows it to fit seamlessly into many devices.

Key Features:

Switch only (no cap)
Momentary function
Single / bi-colour LED illumination
Tactile switch
Rating: 50mA 12VDC

Product Series	TP621TML
Function	Push Button Switch, Tact Switch
Illumination	Full Illumination
Orientation	Straight (Vertical)
Terminal Options	PCB mount
Single LED options	Pure Green, Amber, Blue, Green, Red, White, Yellow
Multi-Colour LED Options	(BA) Blue/Amber, (WA) White/Amber, (WY) White/Yellow, (YG) Yellow/Green, (RB) Red/Blue, (RG) Red/Green, (RY) Red/Yellow

TP6151 Series Specification
Rating	50mA 12VDC
Insulation Resistance	100MΩ Min (at 500VCD)
Dielectric Strength	AC 250V (50/60 Hz for 1 minute)
Contact Resistance	100mΩ Max. (Initial)
Electrical Life	300,000 Cycles Min
Ambient Temperature	-25°c~ +70°c
Operating force	160 + 50gf
