Non-illuminated metal selector switch, available with 2 postions or 3 positions. SPDT/DPDT, non-illuminated, selector switch without illumination. IP65 / IP67J rated at the front. Stainless steel or annodised aluminium. Voltage varies. RJS Electronics Ltd.

RJS102-16S~67J

Non-illuminated Metal Selector switch

Features:

16 mm round
IP65/IP67 Rated (front)
Non-illuminated
2 Position / 3 Position

Applications:

Audio & Broadcast
Automotive
Boat & Marine building
Home Automation
Industrial Controls

Additional information

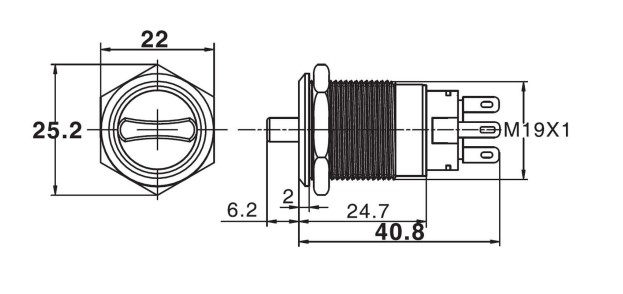

Drawing

Function	Selector Switch
Panel Cut-Out Diameter	Ø 16mm
IP Rating	IP65 (front), IP67 (front)
Illumination	non-illuminated
Electrical Operations	100,000
Mechanical Operations	1000000
Product Series	RJS102 – Metal Selector Switch
