What is a Push Button Switch?
A pushbutton switch (push switches) are devices that are pushed to make or break an electrical circuit. Or to put simply, an object you push to make a device do or stop something. These come in all shapes and sizes, with a multitude of options.

PCB Push button switches?
A PCB switch is a switch that is directly mounted onto a PCB (Printed Circuit Board). Surface mount PCB switches (SMD/SMT) are designed to sit flat, directly on top of a PCB. Through-hole or ‘thru-hole’ PCB switches are inserted into a drilled hole on the printed circuit boards and soldered to pads on the opposite side.

Momentary or Latching function
A momentary switch only works when there is force pressing the button, once this force is removed the switch is no longer engaged. A latching switch maintains the state once pressed, until the push button is pressed again to release the switch.

LED Illumination Options?
RJS supplies both non-illuminated and illuminated push switches. Choosing what type will depend on the function and design of your product. There is a wide range of LED illumination options including single, bi-colour, dual colour or RGB LED illumination. How the illumination is displayed also varies. Variations include;

•Ring illumination
•Dot illumination
•Custom text/symbol illumination
•Full illumination

Push to Make or Push to Break Switch?
A Push to make or ‘Normally Open’ (NO) switch is when an electrical flow is activated in a circuit when the button is pressed. And when the button is released the circuit is then broken and the electrical flow is stopped. This is the most common switch type.
Whereas a Push to Break switch or ‘Normally Closed’ (NC) works in the opposite way, once pressed it stops an existing electrical flow through the circuit.

push button switch circuit, rjs electronics

Poles and Throws
SPST (Single-pole, single-throw) switch has only got one output and one input.

SPDT (Single-pole, double-throw) switches have three terminals, one common pin and two pins which contend for connection to the common. Most suited to devices selecting between two power sources.

DPDT (Double-pole, double-throw) switches are essentially two SPDT switches that control two separate circuits and are switched together by one single actuator.

We operate Monday – Thursday 8 am – 5 pm and Fridays 8 am – 4.30 pm, call us on +44 (0)1234 213600 to speak to our Sales Engineers or e-mail us on [email protected] alternatively, leave us a message using our online contact form.

Download our latest brochure and Product Catalogue. Join our mailing list to get the latest news, read our blog posts and see our latest products.

Read more
  • pcb led illuminated tactile push button switch rjs electronics

    TP6X7ML

    Push Button Switch, Tact Switch
    QuickCode: 1365
  • RJS-K9-9MM PUSH BUTTON SWITCH WITH LED ILLUMINATION, SINGLE LED ILLUMINATION, BI-COLOUR LED ILLUMINATION, 2.0SWITCH TRAVEL, RJS ELECTRONICS LTD.

    RJS-K9

    Push Button Switch, Momentary Switch
    2.0mm travel
    QuickCode: 1363
  • RJS-K2 15mm Push Button Switch Yellow illuminated push button with alternative caps, sigle, bi-colour LED illumination. RJS Electronics LtdRJS-K2 15mm Push Button Switch RED illuminated push button with alternative caps, sigle, bi-colour LED illumination. RJS Electronics Ltd.

    RJS-K2 12mm

    Push Button Switch, Momentary Switch
    4.0mm travel
    QuickCode: 1362
  • RJS-KA-17.4mm-ILLUMINATED-PUSH BUTTON SWITCH - GREEN - RJS ELECTRONICS LTD.RJS-KA-17.4mm- ILLUMINATED-PUSH BUTTON SWITCH - RJS ELECTRONICS LTD.

    RJS-KA 17.4mm

    Push Button Switch, Momentary Switch
    4.0mm travel
    QuickCode: 1361

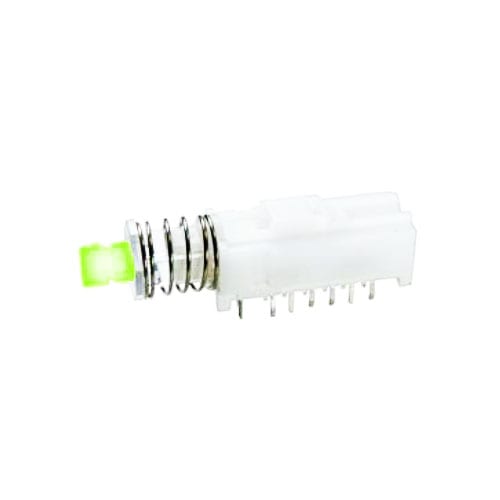

  • ML-4N
