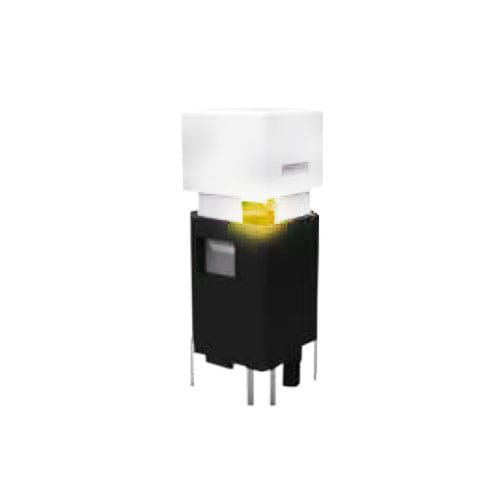

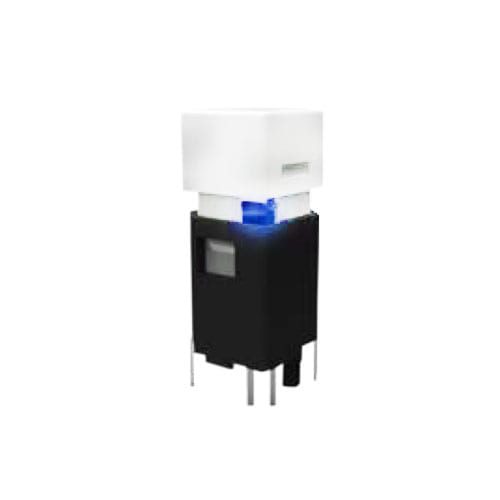

TC011-AS2AW RGB

PCB Push Button switch

Key Features:

  • LED illuminated push button switch
  • Momentary function
  • Single Illumination / Dual Illumination / RGB Illumination
  • 8.6mm switch, square plastic cap

Applications

  • Audio & Visual
  • Broadcast
  • Commercial applications
  • Domestic appliances



Product Series

Configuration

Function

,

Cap Dimensions (mm)

Illumination

Single LED options

, , , , ,

Multi-Colour LED Options

R JS-TC011 Series specifications

Switch specifications
Pole–position Momentary type. SPST with LED
Contact rating MAX: 1mA, 20VDC or 5mA, 5VDC

MIN: 1mA, 5VDC

Contact resistance 200mΩ MAX. 5V DC ; 1mA, by method of voltage DROP
Insulation resistance 100MΩ MIN. 100V DC for 1 minute
Dielectric strength Breakdown is not allowable: 250V AC for 1 minute
Operating force 125 + 35gf
Operating life 300,000 cycles
Operating temperature range -20°C~70°C
Total travel 1.3 + 0.3mm



LED specifications
ATTENTION

LEDs are electrostatic sensitive devices



Unit

Value/LED colour
Blue Green Red Yellow
Forward current (lf) mA 20 20 20 20
Reverse voltage (Vr) V 5.0 5.0 5.0 5.0
Reverse current (lr) µA 10 10 10 10
Forward voltage@20mA (Vf) V 3.3-4.0 2.1-2.5 2.0-2.5 2.0-2.5
Luminous intensity@20mA (lv) mcd 1300 700 900 700

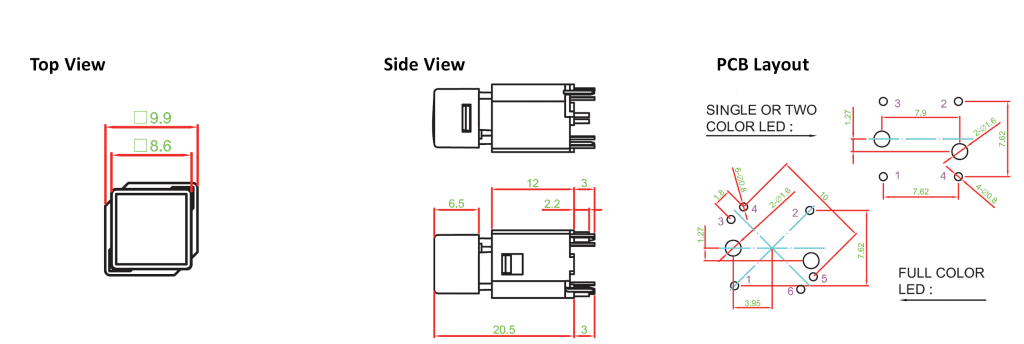

Drawing for pcb button, rjs electronics ltd
