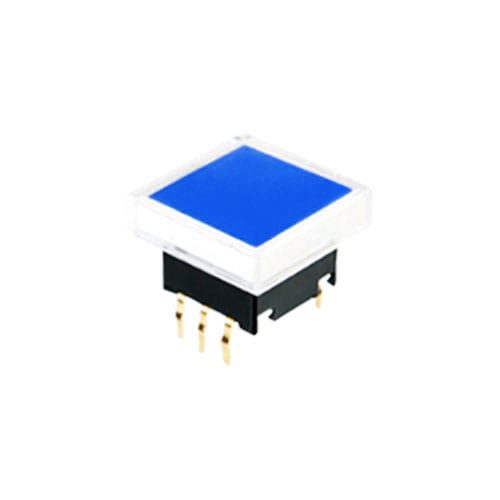

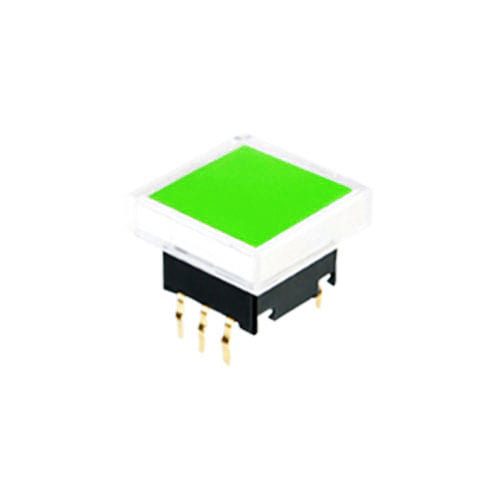

This PCB Push Button Switch has a square cap with a tactile click. It features LED illumination and a momentary function. Choose single, bi-colour or RGB LED and add a custom legend. Compatible with Smart Caps.

Key Features:

  • LED illuminated push button switch
  • Momentary function
  • Single/bi-colour or RGB LED illumination
  • 12mm
  • Tactile click
  • Compatible with Smart Caps
  • Customisable legends
Product Series

Configuration

Single LED options

, , , , ,

Illumination

, , ,

Function

,

Multi-Colour LED Options

Cap / Actuator Shape

Terminal Options



SPD-Z Series Specification



Circuit SPST
Current rating 50mA @ 12VDC
Contact resistance 100mOhm max.(initial)
Insulation resistance 100MOhm min
Operating force 220gf + 50gf (S1~4)
Total travel 0.3mm + 0.1mm
Mechanical life 1,000,000 cycles min
Operating temperature -25deg~+60deg
Solder specifications 250 deg


SPD-Z Series Materials



Cover Polycarbonate (PC)
reflector Polyamide (PA)
Base LCP
Action dome Stainless steel with silver plating
Terminal Phosphor bronze (PBS) with gold plating

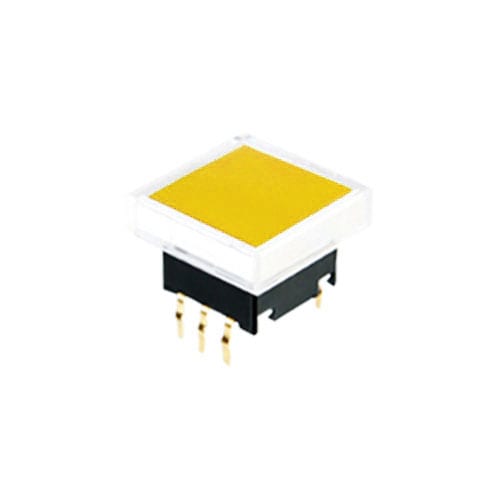

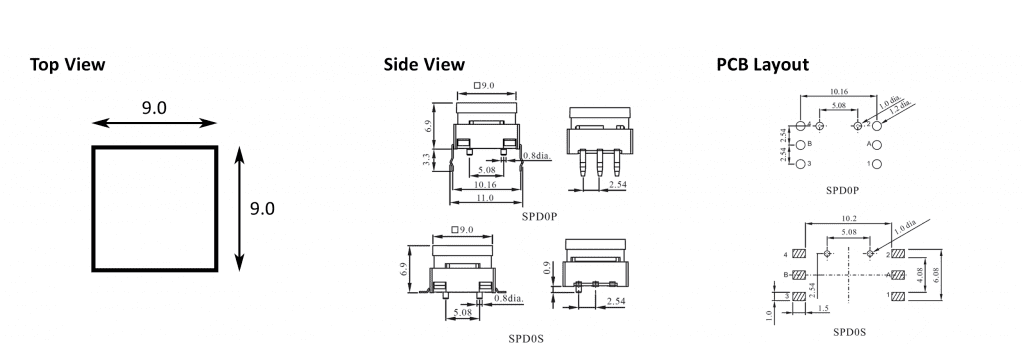

Drawing of SPD0 led illuminated tactile push button switch, custom symbol, rjs electronics ltd
