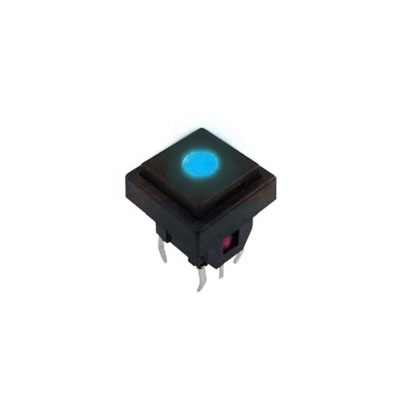

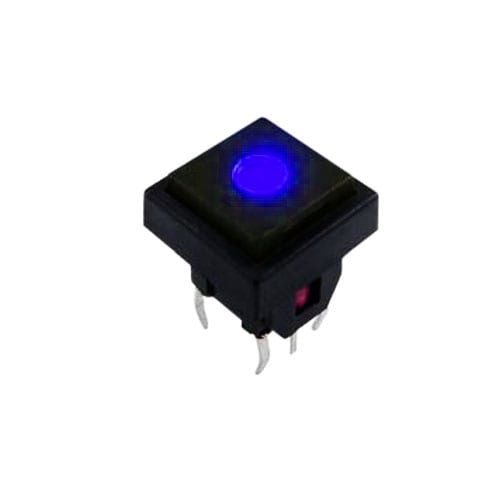

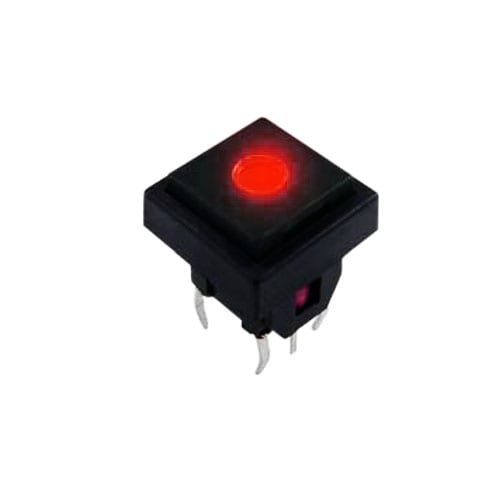

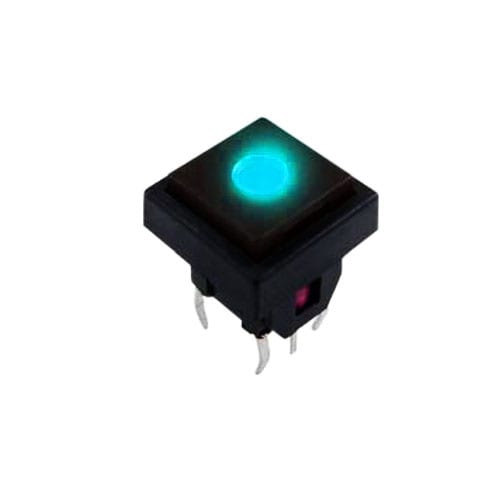

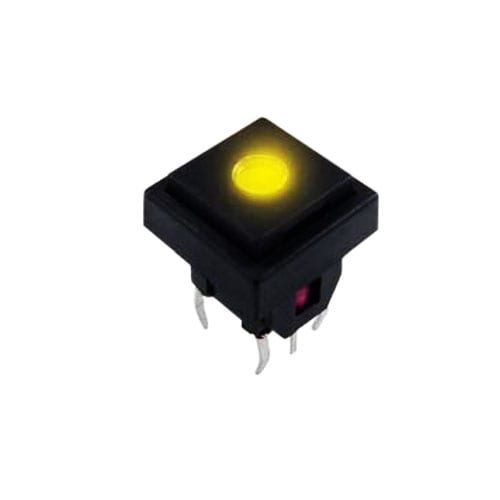

PCB Push Button switch
Key Features:
Applications
.woocommerce-print-products{display:none;}
| Product Series | |
|---|---|
| Function | |
| Cap / Actuator Shape | |
| Illumination | |
| Multi-Colour LED Options | (BB) Blue/Blue, (RB) Red/Blue, (RG) Red/Green, (RR) Red/Red, (RY) Red/Yellow |
| Orientation | |
| Terminal Options |

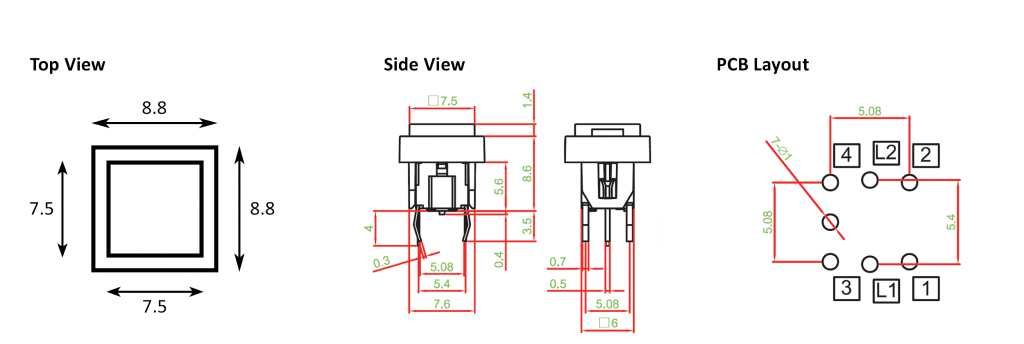

R JS-TC013 Series specifications
| Switch specifications | |
| Pole–position | 1P1T with LED |
| Contact rating | 12V DC, 50mA |
| Contact resistance | 100mΩ MAX. 1.5V DC ; 100mA, by method of voltage DROP |
| Insulation resistance | 100MΩ MIN. 500V DC |
| Dielectric strength | Breakdown is not allowable: 500V AC for 1 minute |
| Operating force | 180 + 50gf |
| Operating life | 500,000 cycles |
| Operating temperature range | -20°C~70°C |
| Total travel | 0.2 + 0.1mm |
| LED specifications | ||||||
| ATTENTION
LEDs are electrostatic sensitive devices |
Unit |
Value/LED colour | ||||
| Blue | Green | Red | White | Yellow | ||
| Forward current (lf) | mA | 10 | 20 | 20 | 2 | 20 |
| Reverse voltage (Vr) | V | 5.0 | 5.0 | 5.0 | 5.0 | 5.0 |
| Reverse current (lr) | µA | 10 | 10 | 10 | 10 | 10 |
| Forward [email protected] (Vf) | V | @10mA
3.0-4.0 |
2.1-2.5 | 2.0-2.5 | @2mA 2.8-4.0 | 2.0-2.5 |
| Luminous [email protected] (lv) | mcd | @10mA 180-245 | 800 | 1800 | @2mA 12 | 1800 |
