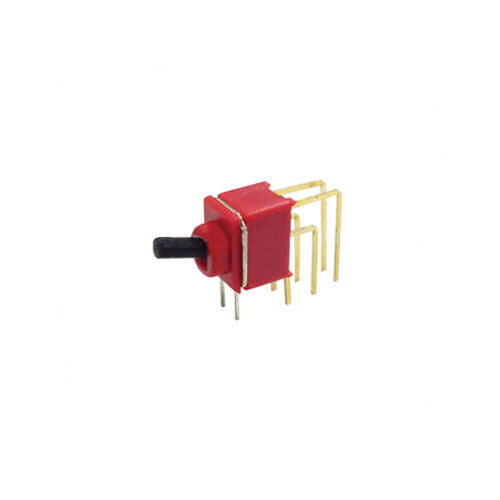

This Ultra-Miniature PCB Toggle Switch features vertical right-angle mounting and DPDT terminals. It is IP67 rated for protection against dust and water and can have 2 or 3 positions.
Key Features:
| Function | |
|---|---|
| IP Rating | |
| Illumination | |
| Mechanical Operations | |
| Contact Rating | 0.4 VA max. @20V AC or DC max. |
| Contact Resistance | Below 100m Ω typ. initial @2-4V DC, 100 mA |
| Insulation resistance: | 500 mΩ min. |
| Product Series |
| Mechanical Life | 40,000 cycles |
| Contact Rating | 0.4 VA max. @ 20 V AC or DC max. |
| Contact Resistance | Below 100 m Ω typ. Initial @ 2-4 V DC, 100 mA |
| Insulation Resistance | 500 M Ω min. |
| Dielectric Strength | 500 vrms min. @ sea level |
| Operating Temperature | -30°C to 85°C |
| Degree of Protection | IP67 rated |
