Bring your project to life.
Bring your project to life.

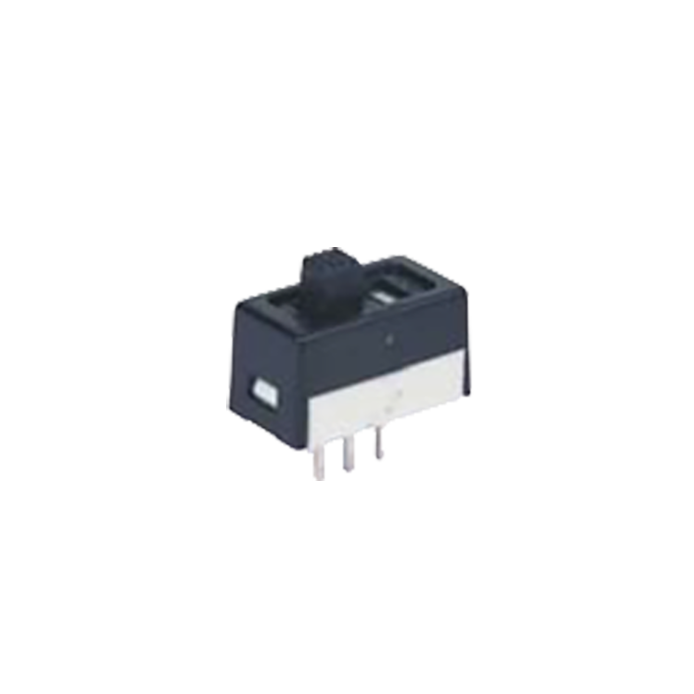

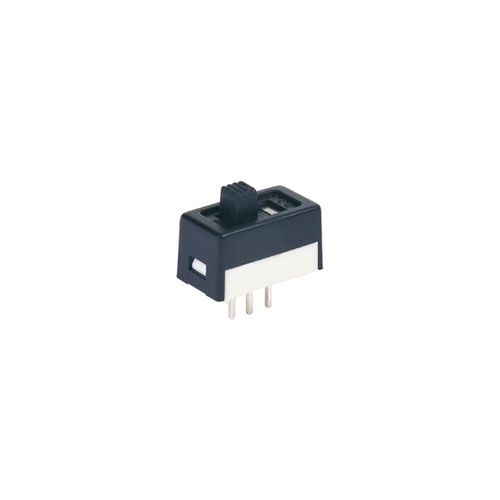

These PCB mount Miniature Slide Switches feature an SPDT or DPDT configuration, with vertical thru-hole mounting. Choose from 2 or 3 positions and a variety of actuator options.
Key Features:
| Product Series | |
|---|---|
| Function | |
| Configuration | |
| Orientation | |
| Terminal Options |
| Contact Resistance | 50mΩmax. initial |
| Mechanical Life | 20,000 cycles |
| Insulation Resistance | 1,000 MΩ min |
| Dielectric Strength | 1,000 vrms min @sea level |
| Operating Temperature | -40°C to 80°C |
