| Product Series | |
|---|---|
| Function | |
| Switch Rating | 150V AC/DC @130mA |
| Terminal Options | |
| IP Rating | |
| Illumination |

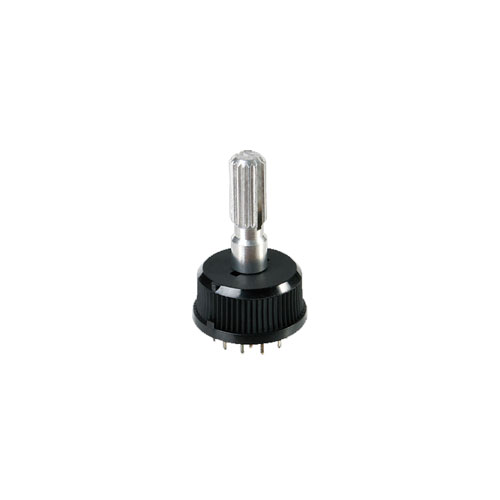

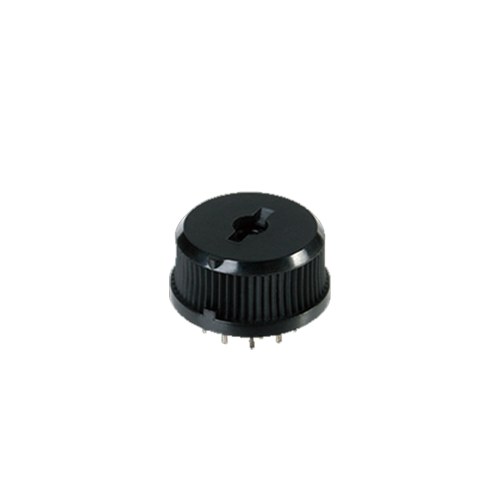

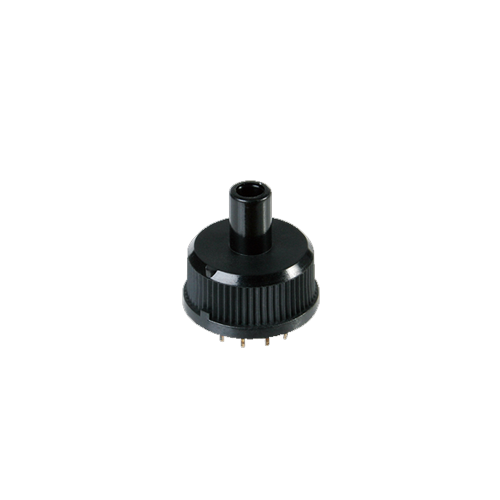

This Rotary Switch has a low profile, with up to 6 poles and 12 positions. It is non-illuminated and has a long operation life.
Key Features:
| Product Series | |
|---|---|
| Function | |
| Switch Rating | 150V AC/DC @130mA |
| Terminal Options | |
| IP Rating | |
| Illumination |
|
SRS5 Series Specification
|
|
| Current rating | 130mA (max) |
| Voltage rating | 150 VDC/AC (max) |
| Switching power | 5 VA (max) |
| Contact resistance | 25m Ohm max.(initial) |
| Insulation resistance | 100m Ohm min |
| Operating force | 1kgf-cm (Max) |
| Indexing angle | 30° |
| Operating life non load | 20,000 CYCLES min |
| Operating life full load | 15,000 CYCLES min |
| Switching load | Shorting and non-shorting |
| Solder specifications | 260 deg for 3 seconds |
| Operating temperature | -10deg~+60deg |
|
SRS5 Series Materials
|
|
| Cap | Polyamide (PA) |
| Movement | Polyamide (PA) |
| Case | Polyamide (PA) |
| Fixed contact | Brass with gold plating |
| Moving contact | Phosphor bronze (PBS) with gold plating |
| Spring | Stainless steel |
