SF25BA 2

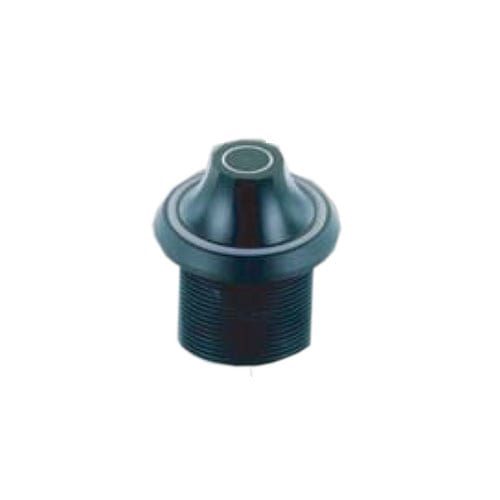

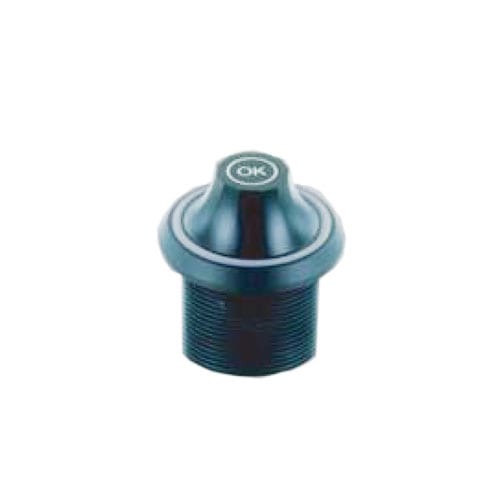

SF25BA

Multifunctional Rotary Encoder with central Push Button

Key Features:

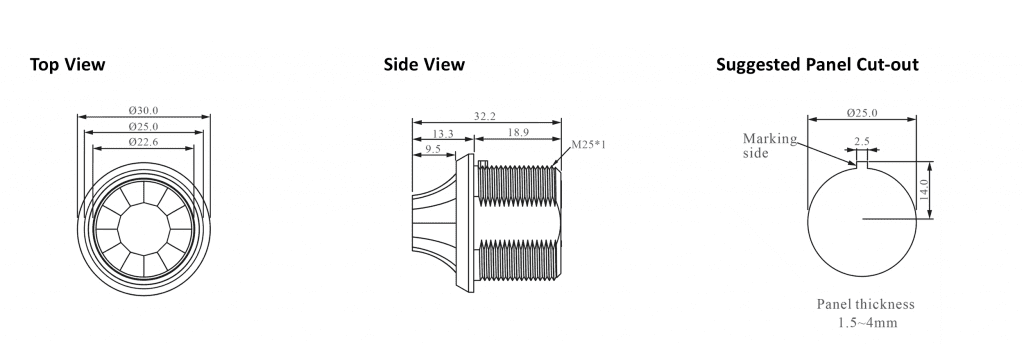

Ø 25mm panel cut out
360° Rotation
Rotary encoder switch with centre button
Momentary function
IP65 rated (front)
10mA @ 5V DC(push)0.5mA @ 5V DC(rotation)
Ring LED Illumination
Dual/RGB LED Illumination

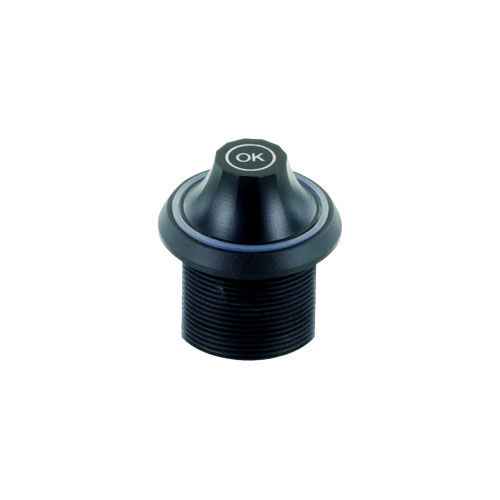

Custom markings available*

Applications:

Audio & Broadcast
Automotive
Boatbuilding & Marine
Home Automation
Industrial Controls

Function	Push Button Switch, Encoder
IP Rating	IP65 (front)
Illumination	Custom symbol, Full Illumination
Multi-Colour LED Options	(2RGB) DUAL – Red/Green/Blue, (RGB) Red/Green/Blue

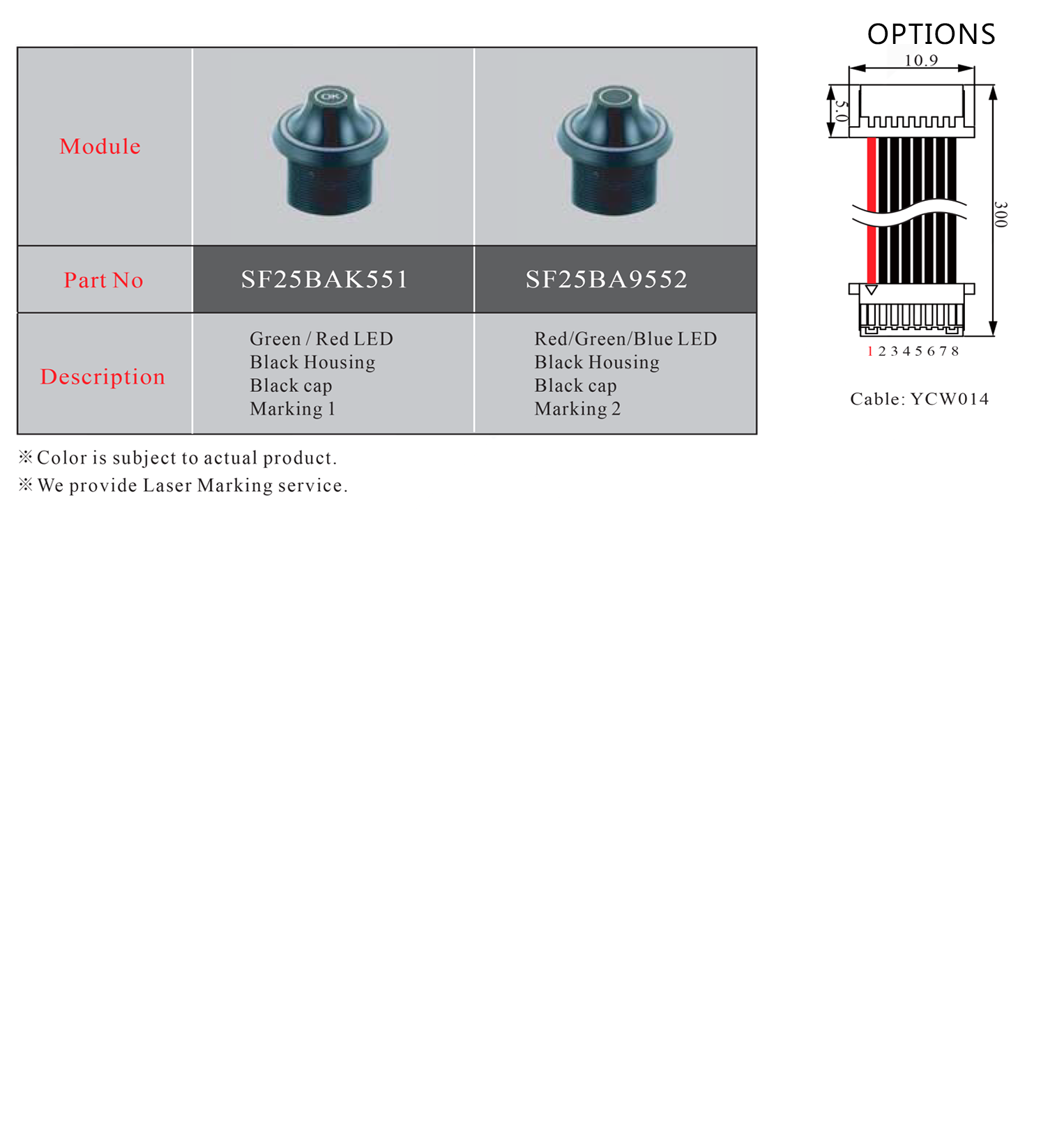

SF25BA Series Specification

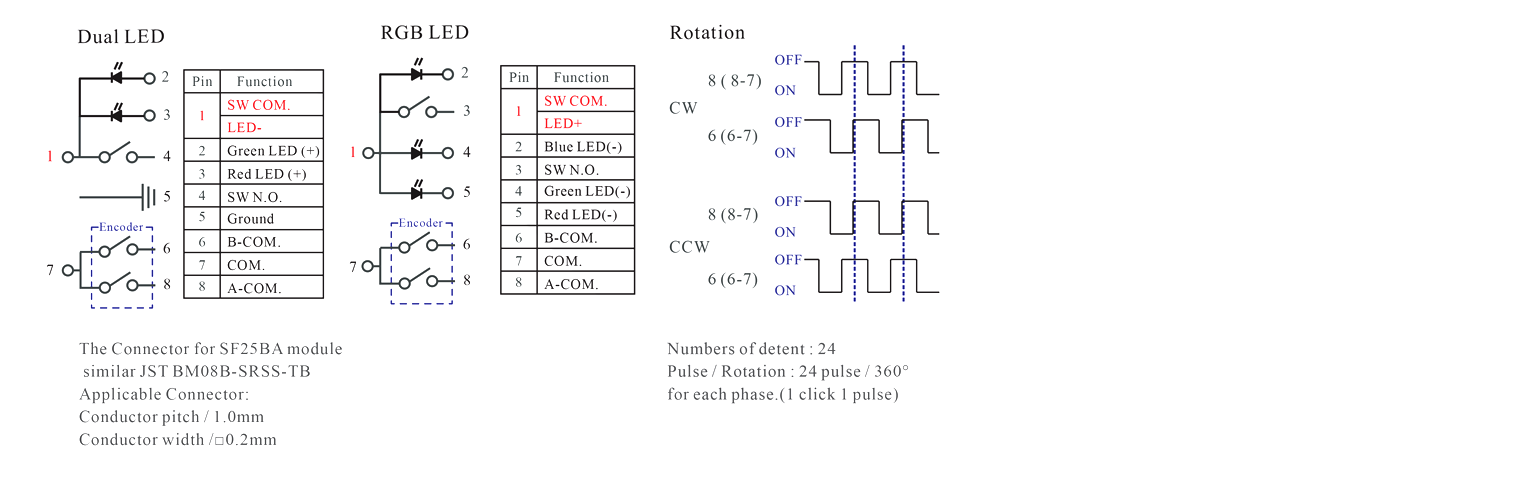

Resolution	24 pulses/360°
Circuit	SPST (push)
Current rating	0.5mA (rotation) 10mA (push)
Voltage rating	500mOmh max. (initial) for push
Contact resistance	500mOhm max(initial)
Insulation resistance	100Mohm min
Operating force	Rotation max. 30~200gf.cm Push max. 450gf+200gf
Switching stroke	0.5(+0/-0.3)mm
Mechanical life	Rotation- 30,000 operations Push- 20,000 operations
Operating temperature	-10deg.C~+70deg.C

SF25BA Series Materials
Housing	Polyamide (PA)
Cap	Polycarbonate (PC)
Waterproof part	Silicone rubber
Nuts	Polyamide (PA)
Washer	Rubber
