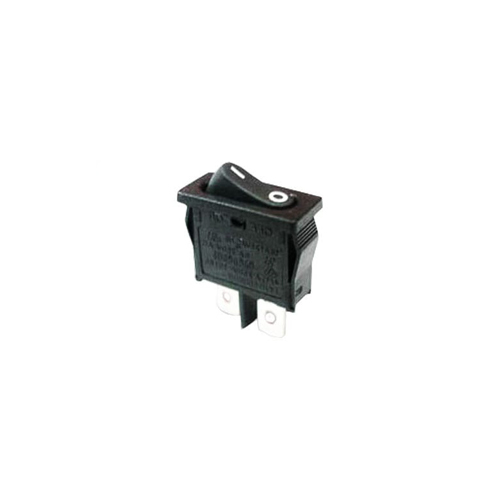

This small Rocker Switch features an SPST configuration, with vertical mounting and dimensions of 6.6mm x 19.2mm. It is non-illuminated and is available with on/off symbols.

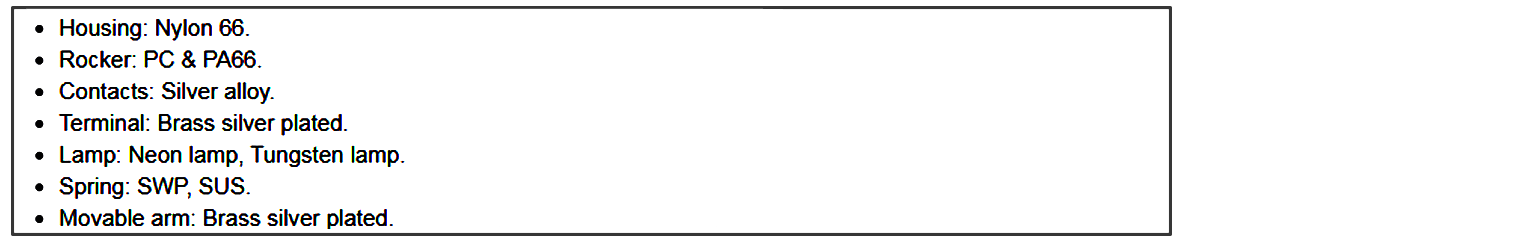

Key Features:
| Function | |
|---|---|
| Mechanical Operations | |
| Electrical Operations | |
| Contact resistance: | < 20mΩ |
| Insulation resistance: | >1, 000MΩ. |
| High voltage resistance: | >1, 500V 1 min. |
| Actuating force: | 4N. |
| Illumination | |
| Product Series |
|
Electrical Rating |
6A 250VAC/10A 125VAC (UL), 4(1)A 250VAC (VDE) |
|
Mechanical Life |
Over 30,000 cycles |
|
Electrical Life |
Over 10,000 cycles |
|
Contact Resistance |
<20 m Ω |
|
Insulation Resistance |
>1000 M Ω |
|
High Voltage Resistance |
>1500V 1 min. |
|
Ambient Temperature |
Terminal side -20°C to 85°C Actuating side -20°C to 55°C |
|
Storage Temperature |
-30°C to 85°C max |
|
Atmospheric Humidity |
Max 85% |
|
Actuating Force |
4N |
|
Flammability |
UL94 V-2 |
|
Temperature Rise at the Terminal |
Max 30°C (UL1054) |
|
Solderability of Terminal |
Max 350°C, 3s |
