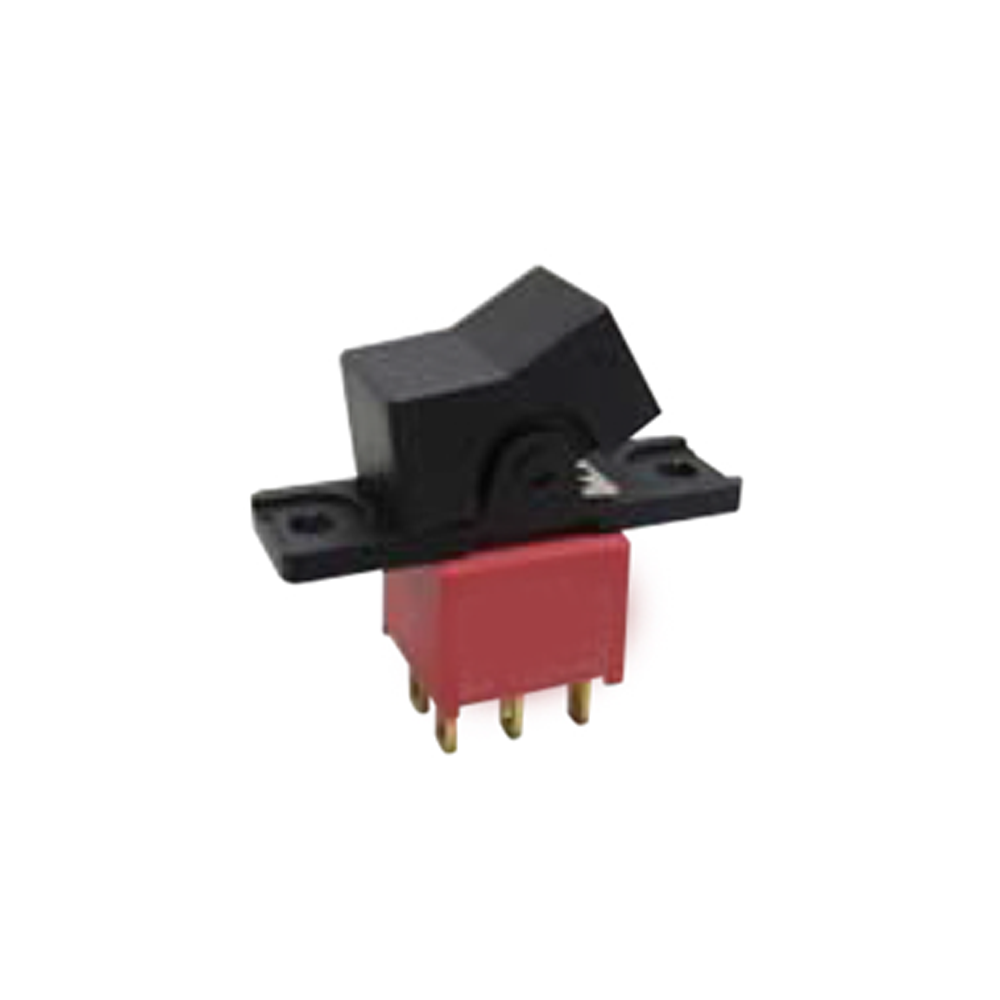

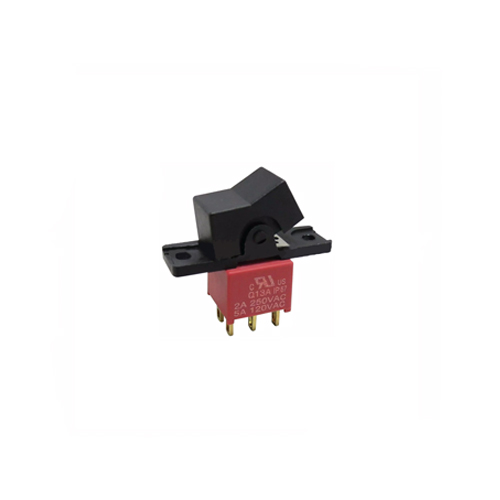

3A-DPDT

  • Rocker Switch
  • 3A-DPDT
  • Sealed Miniature Paddle Switches
  • SPDT, DPDT, 3PDT functions
  • Contact rating up to 5A.
Function

IP Rating

Mechanical Operations

Insulation Resistance:

1,000 MΩ min.

Dielectric Strength:

1,000 Vrms [email protected] level.

Contact Resistance:

10 m Ω max. initial @ 2-4VDC
1 00mA for both silver and gold plated contacts.

Product Series

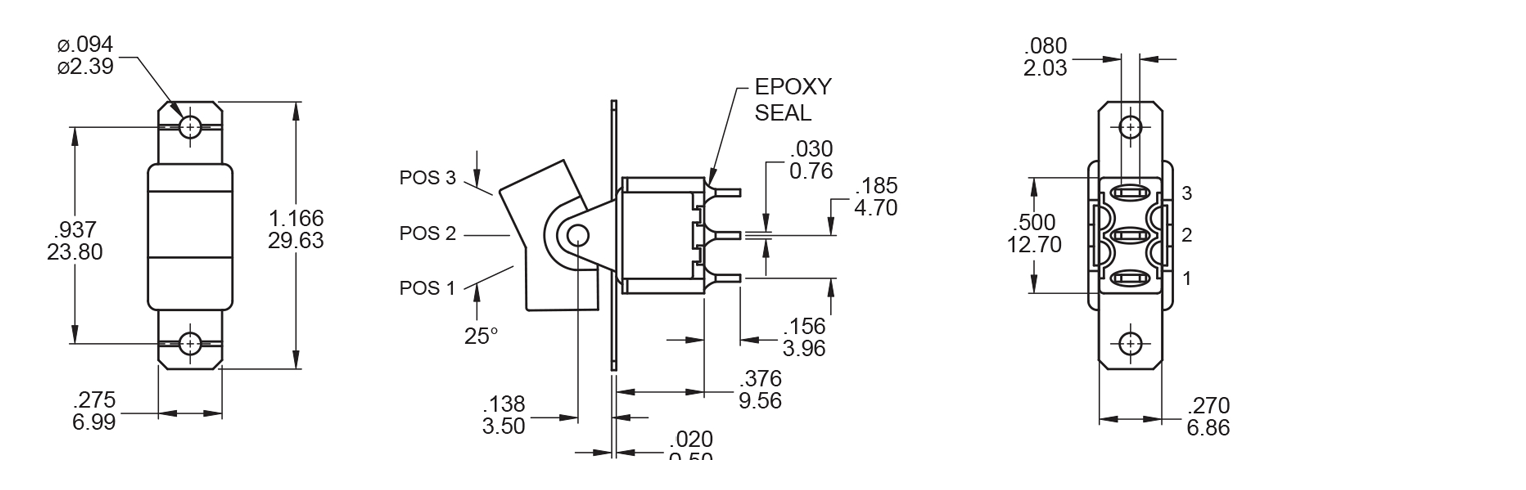

Drawing

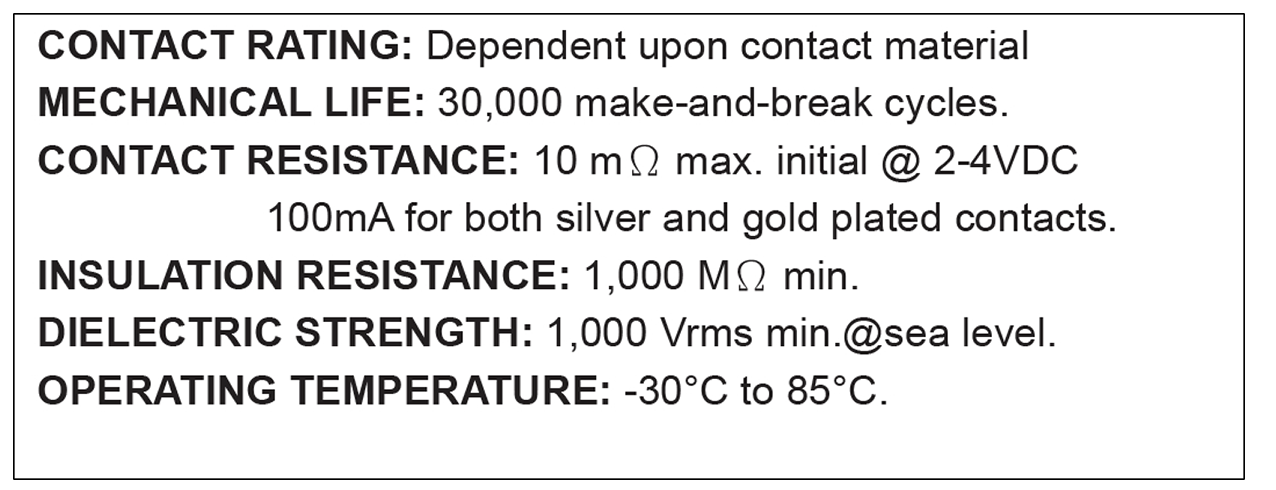

Mechanical & Electrical Specs

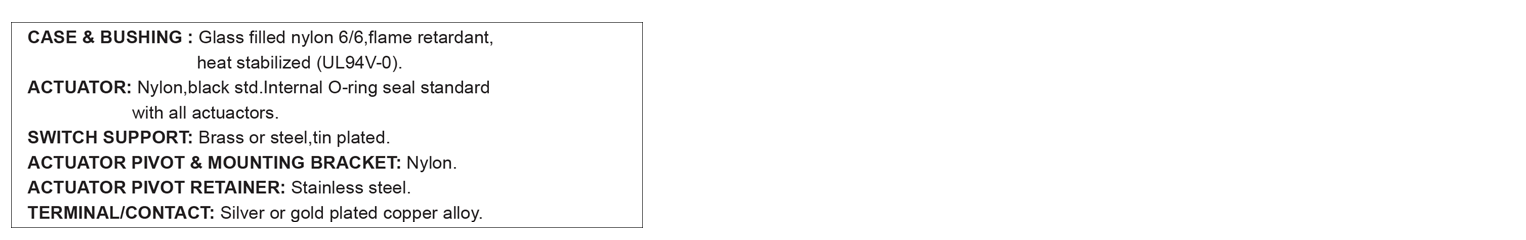

Materials
