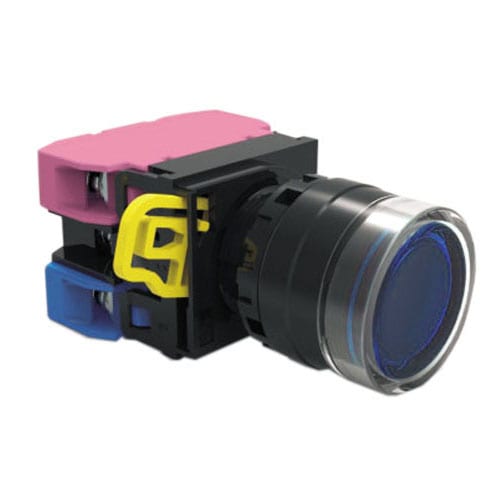

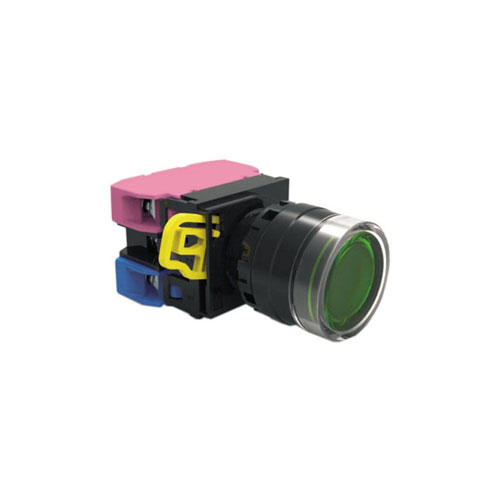

This 22mm Lamp Head Push Button Switch features a flat plastic head with full LED illumination. It has a momentary or latching function and is IP65 rated (from the front).
Key Features:
| Product Series | |
|---|---|
| Function | Plastic Push Button Switch, Momentary Switch, Latching Switch |
| Cap / Actuator Shape | |
| Illumination | |
| Orientation | |
| Terminal Options | |
| Configuration | |

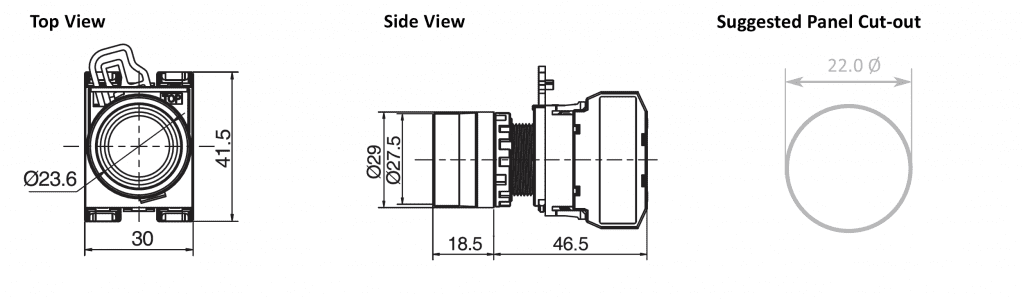

| Panel Cut-Out Diameter | |
| Single LED options | |
| IP Rating |
|
Operating Temperature |
-20°C to +55°C |
|
Storage Temperature |
-45°C to +80°C |
|
Operating Humidity |
45-85% RH |
|
Storage Humidity |
95% RH |
|
Degree of Protection |
IP20 / IP65 |
|
Rated Insulation Voltage |
600V |
|
Rated Current |
10A |
|
Shock Resistance |
100m/s2 150m/s2 1000m/s2 |
|
Insulation Resistance |
100MΩ |
|
Dielectric Strength |
2000VAC 2500VAC |
|
Vibration Resistance |
10~500Hz – 0.35mm 50m/s2 5~55Hz 0.5mm 30Hz 1.5mm |
|
Mechanical Life |
100,000 / 250,000 / 1,000,000 / 5,000,000 |
|
Electrical Life |
50,000 / 100,000 |
