IP Rating | |
---|---|
Configuration | |
Terminal Options | |
Illumination | |
Cap / Actuator Shape | |
Function | |
# NC Contacts | |
# NO Contacts | |
Product Series |
30mm antivandal switch with dot LED illumination.
Key Features:
- Ø 30mm Panel cut out
- Momentary / Latching
- Dot LED illuminated
- Single/Bi-colour/RGB LED options
- 3V-24V DC LED
- IP67 rated (from the front)
- SPDT / DPDT
Applications
- Automotive
- Boat building & Marine
- Security
- Door entry
- Medical

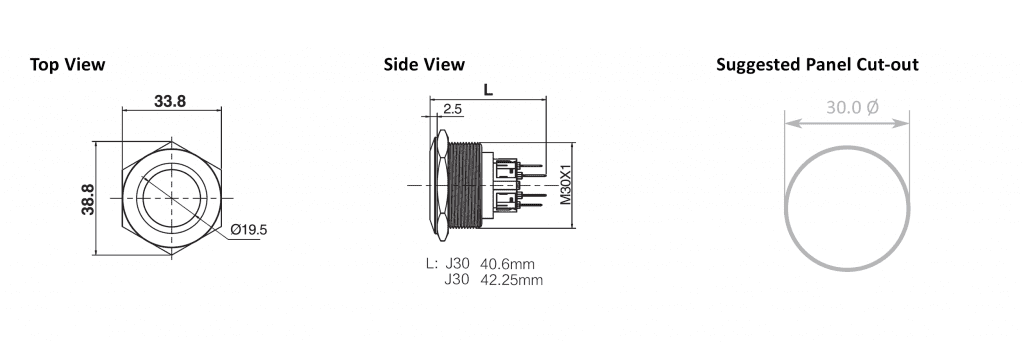

Drawing
