| Function | |
|---|---|
| IP Rating | |
| Cap / Actuator Shape | |
| Interface Type | CAN BUS ISO 11898 |
| Product Material Options | |
| Product Series |

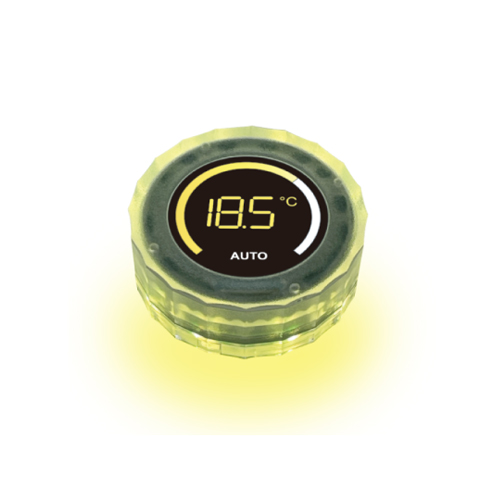

This multifunctional Programmable Navigation Switch features a 1.28″ full circle LCD display with a dimmable white LED backlight, plus a rotary encoder and push button switch. It has CAN BUS compatibility and an IP65 rating (from the front).
Key Features:
| Function | |
|---|---|
| IP Rating | |
| Cap / Actuator Shape | |
| Interface Type | CAN BUS ISO 11898 |
| Product Material Options | |
| Product Series |
| Communication Interface | CAN BUS ISO 11898 |
| CAN BUS Speed | 1 Mbps |
| CAN ID | 0x0588 |
| DLC | 8 Bytes |
| Power Supply | 5V |
| Operation Current | 250mA (max) |
| Operation Temperature | -20°C ~ 70°C |
| Enclosure Protection | IP65 (front) |
| Operating Life (Encoder) | C.W. 100,000 cycles min
C.C.W 100,000 cycles min |
| Operating Force (Encoder) | 1.5Kgf-cm (Max.) |
| Operating Life (Switch) | 100,000 cycles min |
| Operating Force (Switch) | 800gf±300gf |
| Backlight | RGB LED |
| Display | |
| Size | 1.28 inch Circle TFT |
| Resolution | 240RGB(H) x 240(V) |
| Display Colour | Full Colour, 262K (max) |
| Luminance (cd/m2) | 400 (cd/m2) |
| Backlight | White LED |
