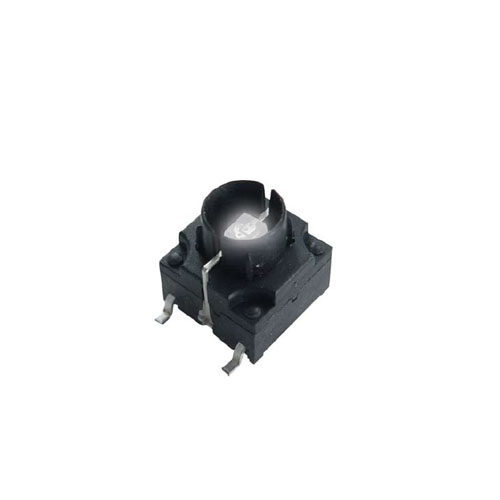

TC018-N11B

Tactile switch with IP67 rating. Equipped with an momentary function, available with single or bi-colour LED illumination.

Key Features:

  • Tact push button switch
  • Momentary function
  • Single / bi-colour LED
  • Rating: 24VDC, 50mA
  • IP67 rated
  • Switch without cap



Full list of TC018 series



Product Series

Configuration

Illumination

Single LED options

, , , ,

Terminal Options

Orientation

Function

IP Rating

R JS-TC018 Series specifications

Switch specifications
Pole–position 1P1T with LED
Contact rating 24V DC, 50mA
Contact resistance 50mΩ MAX. 1.5V DC ; 100mA, by method of voltage DROP
Insulation resistance 100MΩ MIN. 500V DC
Dielectric strength Breakdown is not allowable: 500V AC for 1 minute
Operating force 300 + 100gf
Operating life 1,500,000 cycles
Operating temperature range -30°C~85°C
Total travel 1.0 + 0.3mm
Sealing IP67



LED specifications
ATTENTION

LEDs are electrostatic sensitive devices



Unit

Value/LED colour
Blue Green Red White Yellow
Forward current (lf) mA 30 30 15 30 20
Reverse voltage (Vr) V 5.0 5.0 5.0 5.0 5.0
Reverse current (lr) µA 10 10 10 10 10
Forward voltage@20mA (Vf) V 3.5-4.0 1.7-2.8 1.7-2.8 3.3-3.8 1.7-2.8
Luminous intensity@20mA (lv) mcd @20mA 180-245 24-40 4.0-7.0 @20mA 145 18-30

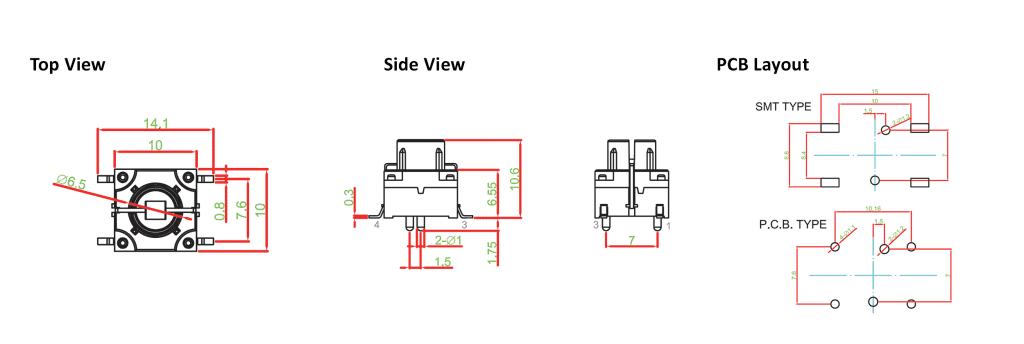

tc018 led switch drawing, rjs electronics ltd
