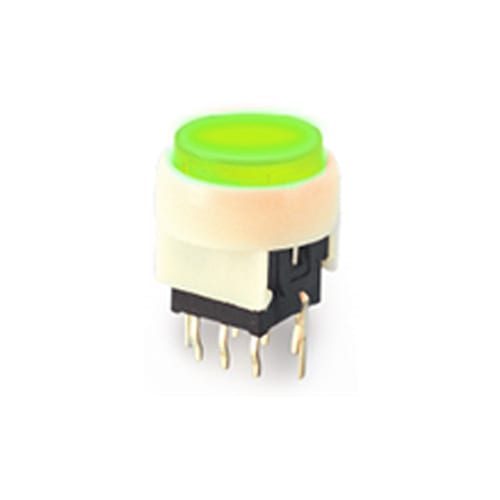

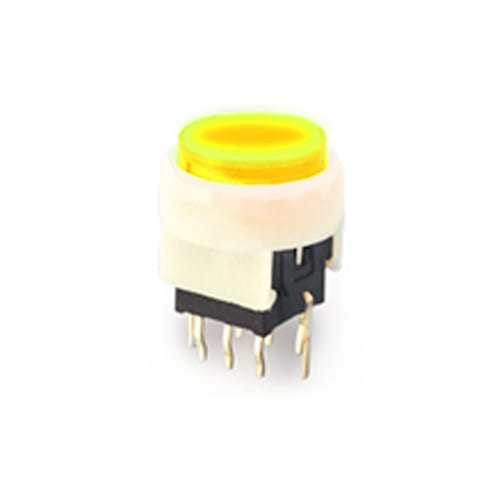

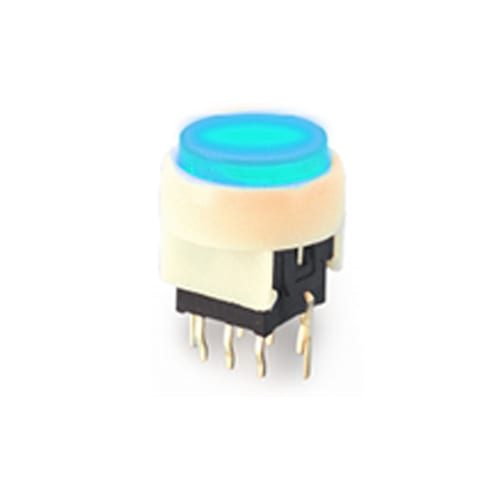

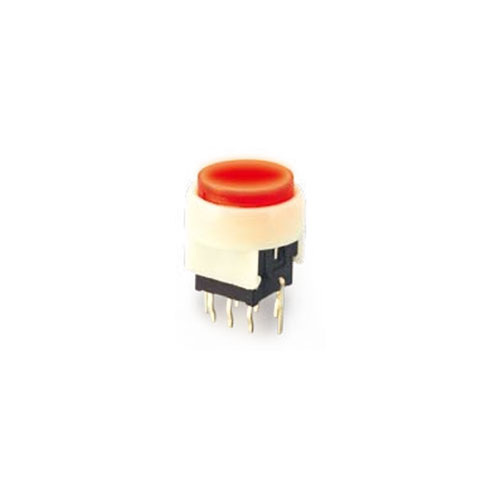

Small PCB illuminated push button switch, designed for use in a variety of applications. The switch comes with a round cap, with both momentary or latching function options available.
Key Features:
| Product Series | |
|---|---|
| Function | Push Button Switch, Momentary Switch, Tact Switch, Latching Switch |
| Orientation | |
| Terminal Options | |
| Illumination | |
| Product Material Options | |
| Single LED options | Blue Green, Pink, Pure Green, Purple, Amber, Blue, Green, Red, White, Yellow |
| Multi-Colour LED Options | (BA) Blue/Amber, (WA) White/Amber, (WY) White/Yellow, (YG) Yellow/Green, (RB) Red/Blue, (RG) Red/Green, (RY) Red/Yellow |
|
PB613 Series Specification
|
|
| Rating | 0.1A 30VDC |
| Insulation Resistance | 100MΩ Min (at 500VDC) |
| Dielectric Strength | AC 500V (50/60 Hz for 1 minute) |
| Contact Resistance | 50mΩ Max. (Initial) |
| Electrical Life | 10,000 Cycles Min |
| Ambient Temperature | -10°c~ +80°c |
| Operating Force | 150 + 100gf (Momentary) |
| 250 + 100gf (Alternate) | |
| 200 + 100gf (Momentary with click) | |
