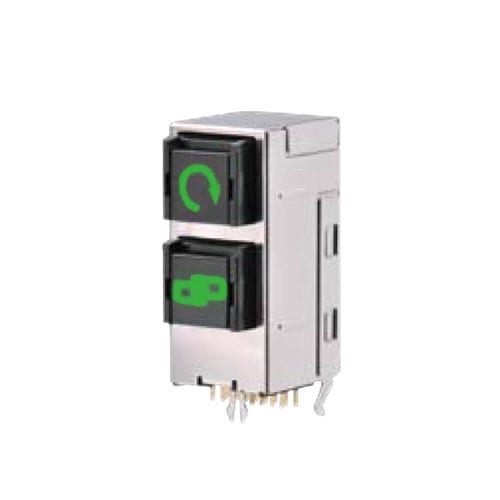

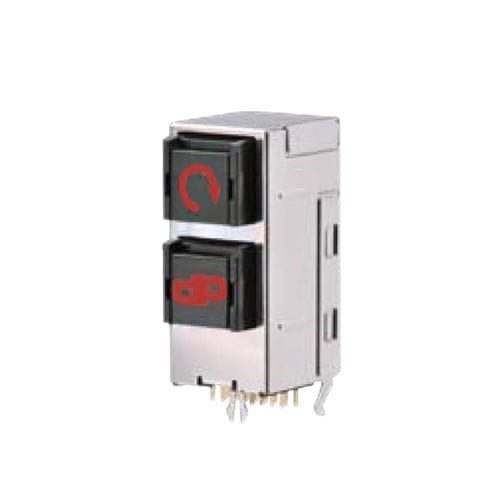

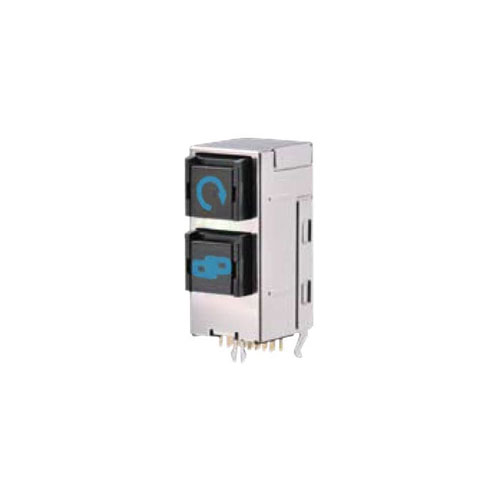

This PCB Push Button Switch features a double-layer design with two switches in the one unit. Choose single or bi-colour LED illumination, upper & lower cap colours, and laser etched symbols.
Key Features:
| Product Series | |
|---|---|
| Function | Push Button Switch, Double Layer Push Button Switch, Momentary Switch, Latching Switch |
| Illumination | |
| Orientation | |
| Terminal Options | |
| Product Material Options | |
| Single LED options | Blue Green, Pink, Pure Green, Purple, Amber, Blue, Green, Red, White, Yellow |
| Multi-Colour LED Options | (BA) Blue/Amber, (WA) White/Amber, (WY) White/Yellow, (YG) Yellow/Green, (RB) Red/Blue, (RG) Red/Green, (RY) Red/Yellow |
| Item | Standard |
| Rating | 0.1A 30VDC |
| Insulation Resistance | 100MΩ Min (at 500 VDC) |
| Dielectric Strength | AC 500V (50/60 Hz for 1 minute) |
| Contact Resistance | 50mΩ Max. (Initial) |
| Electrically Life | 10,000 Cycles Min |
| Ambient Temperature | -10°C~ +80°C |
| Operating Force | 150 ± 100gf(Momentary) 250 ± 100gf(Alternate) 200 ± 100gf(Momentary With Click) |
