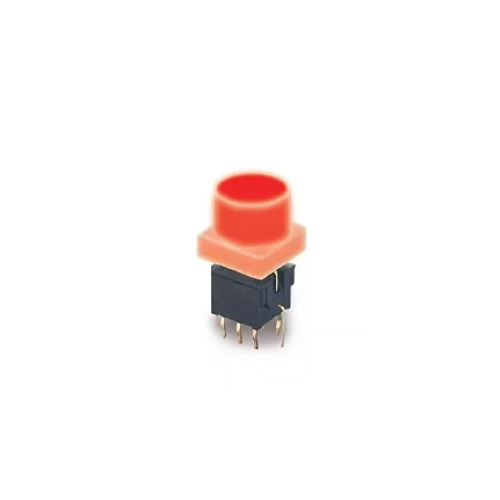

This switch comes with a round cap and an LED feature that illuminates when pressed. The switch has a latching function and offers single or bi-colour LED illumination options.

For those interested in the RGB illuminated with the same cap style, check out our PB615302 model.

Key Features:

  • Switch height – 19.8mm
  • PCB mounting – THT
  • Switch circuit – DPDT (8 pin)
  • Latching function
  • Illuminated & non-illuminated options
  • Round button shape

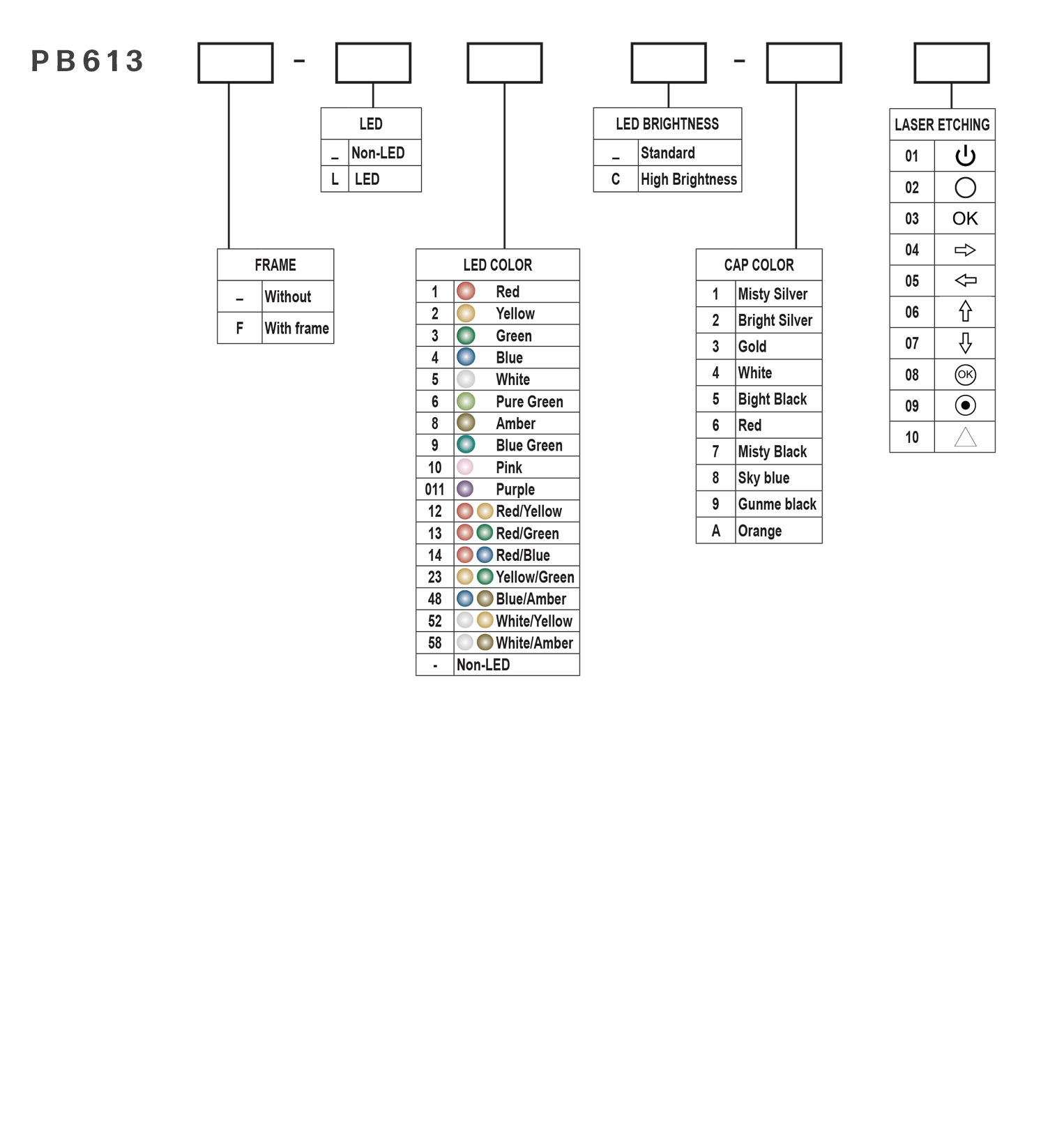

Product Series

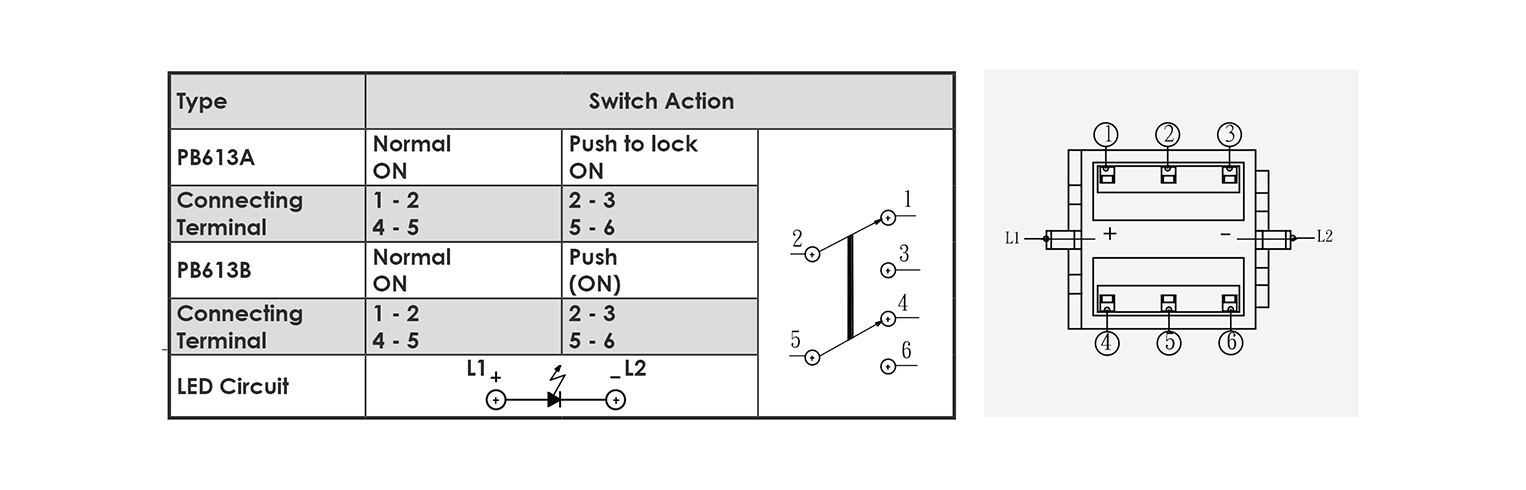

Switch Circuit


, ,

Switch Action

, ,


PB613 Series Specification


Rating 0.1A 30VDC
Insulation Resistance 100MΩ Min (at 500VDC)
Dielectric Strength AC 500V (50/60 Hz for 1 minute)
Contact Resistance 50mΩ Max. (Initial)
Electrical Life 10,000 Cycles Min
Ambient Temperature -10°c~ +80°c
Operating Force 150 + 100gf (Momentary)
250 + 100gf (Alternate)
200 + 100gf (Momentary with click)
