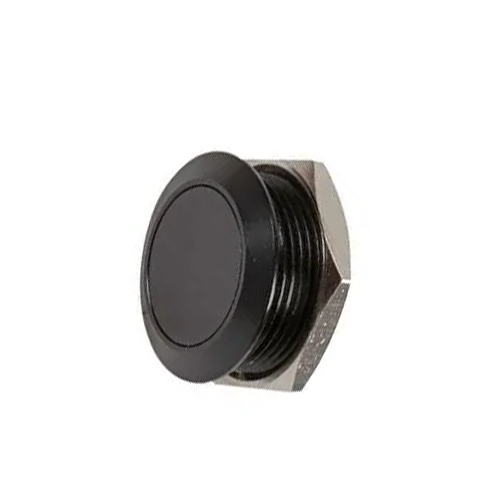

19mm metal anti vandal push button switch, black finish, low profile, rjs electronics ltd
19mm low profile push button switch, anti vandal proof, led illuminated, antivandal, metal push button switch, non- illumination, high head, flat head, ball head, push button switch, Single LED illumination, Bi-colour LED Illumination, RGB Illumination, ring LED illumination, dot illumination, dual illumination, power symbol, custom options available RJS Electronics Ltd.
19mm low profile push button switch, anti vandal proof, led illuminated, antivandal, metal push button switch, non- illumination, high head, flat head, ball head, push button switch, Single LED illumination, Bi-colour LED Illumination, RGB Illumination, ring LED illumination, dot illumination, dual illumination, power symbol, custom options available RJS Electronics Ltd.
19mm low profile push button switch, anti vandal proof, led illuminated, antivandal, metal push button switch, non- illumination, high head, flat head, ball head, push button switch, Single LED illumination, Bi-colour LED Illumination, RGB Illumination, ring LED illumination, dot illumination, dual illumination, power symbol, custom options available RJS Electronics Ltd.

RJS1N1LP-19M-F-R~67J

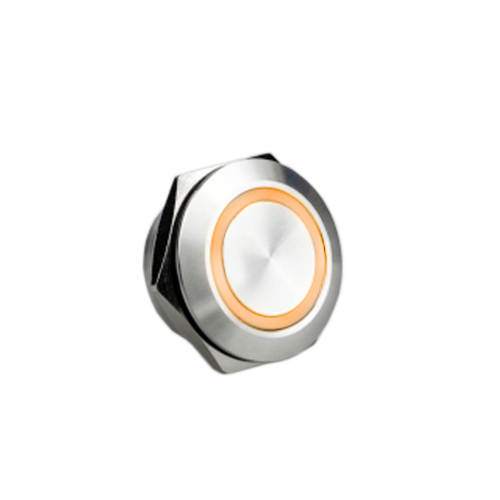

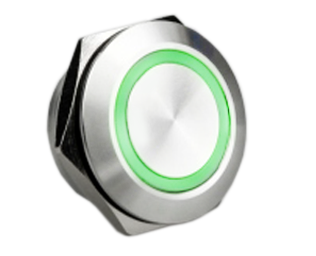

Ø 19mm ultra-low-profile metal push button switch, with a total depth of 14mm, creating added space behind the panel. Equipped with micro travel and a rating of IP67 (from the front). Single, bi-colour or RGB LED options available.

Key Features:

  • Ø 19mm Panel cut out
  • Low profile switch with micro travel
  • Momentary function
  • Ring LED illumination
  • Single / Bi-colour / RGB LED options
  • IP67 (from the front)
  • SPST
Data Sheet
Product Series

IP Rating

Configuration

Mechanical Operations

Cap / Actuator Shape

,

Bezel Shape

,

Illumination

Single LED options

, , , , ,

Function

,

Panel Cut-Out Diameter

Multi-Colour LED Options

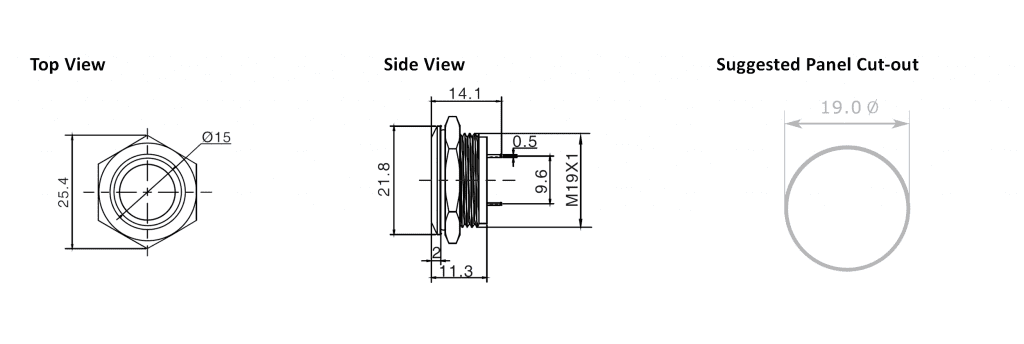

Drawing for 19mm antivandal switch, rjs electronics ltd
