SPF Square

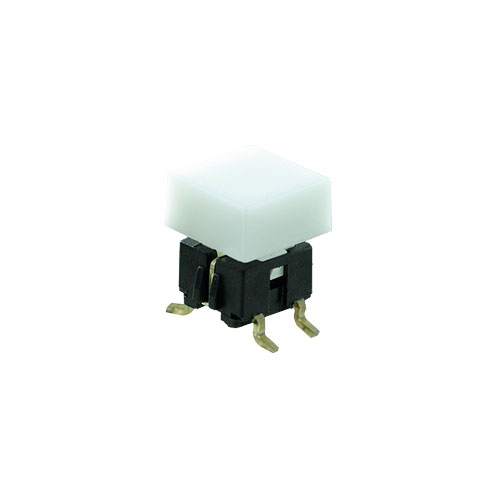

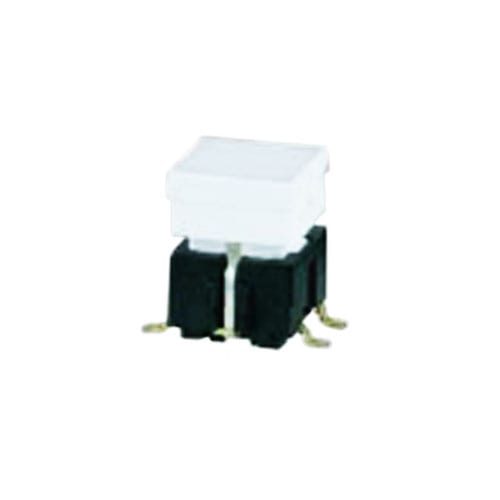

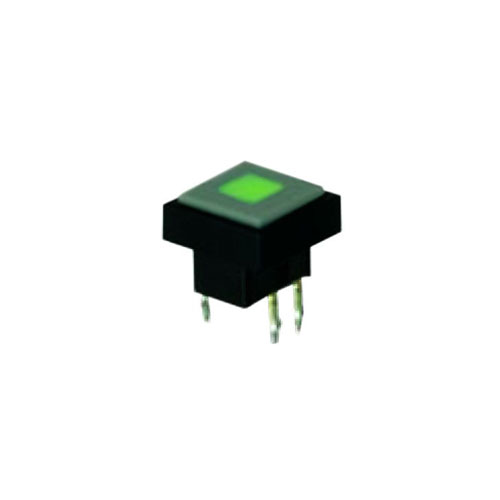

This square PCB Push Button Switch features full face single LED illumination, momentary function and a tactile ‘clicky’ feel. Compatible with Smart Caps.

Key Features:

  • LED illuminated push button switch
  • Momentary function
  • Single LED Illumination
  • Square cap
  • Compatible with Smart Caps.
  • Tactile switch
Product Series

Configuration

Terminal Options

,

Illumination

Single LED options

, , , ,

Cap / Actuator Shape

Function

,



SPF-Z Series Specification



Circuit SP5T
Current rating 50mA
Voltage rating 12VDC
Dielectric withstanding voltage 250VAC for 1 minute
Contact resistance 100mOhm max(initial)
Insulation resistance 100Mohm min
Operating force 200gf+50gf
Total travel 0.25mm+0.2mm
Mechanical life 100,000 cycles min
Function Momentary
Operating temperature -10deg~+60deg


SPF-Z Series Materials



Cap Polycarbonate (PC)

Polyamide (PA)

Diffuser Polycarbonate (PC)
Housing Polyamide (PA)

Acrylonitrile butadine styrene (ABS)

Stem Polyamide (PA)
Base Polyamide (PA)
Terminal Bronze with gold plating

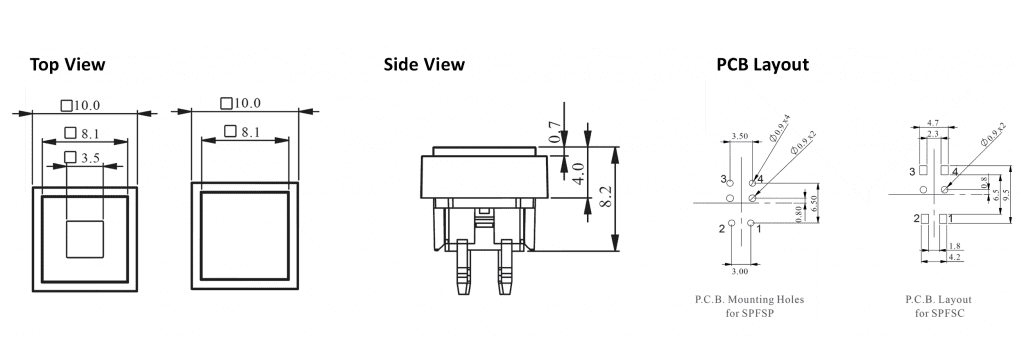

Drawing of SPF Square led illuminated tactile pcb push button switch, rjs electronics ltd
