SPF Round

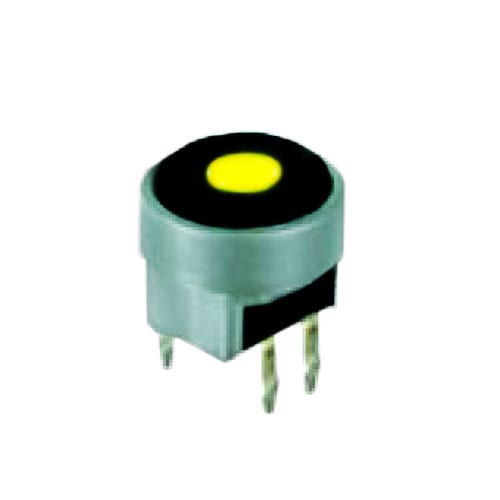

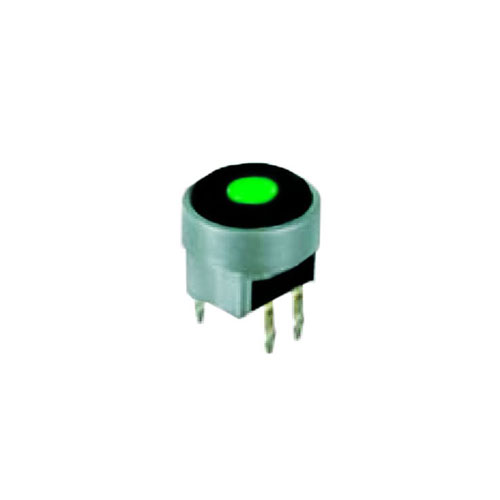

This round PCB Push Button Switch features single LED illumination, momentary function and a tactile ‘clicky’ feel. Compatible with Smart Caps.

Key Features:

  • LED illuminated tactile push button switch
  • Momentary function
  • Single/bi-colour LED illumination
  • Round cap
  • Tactile switch

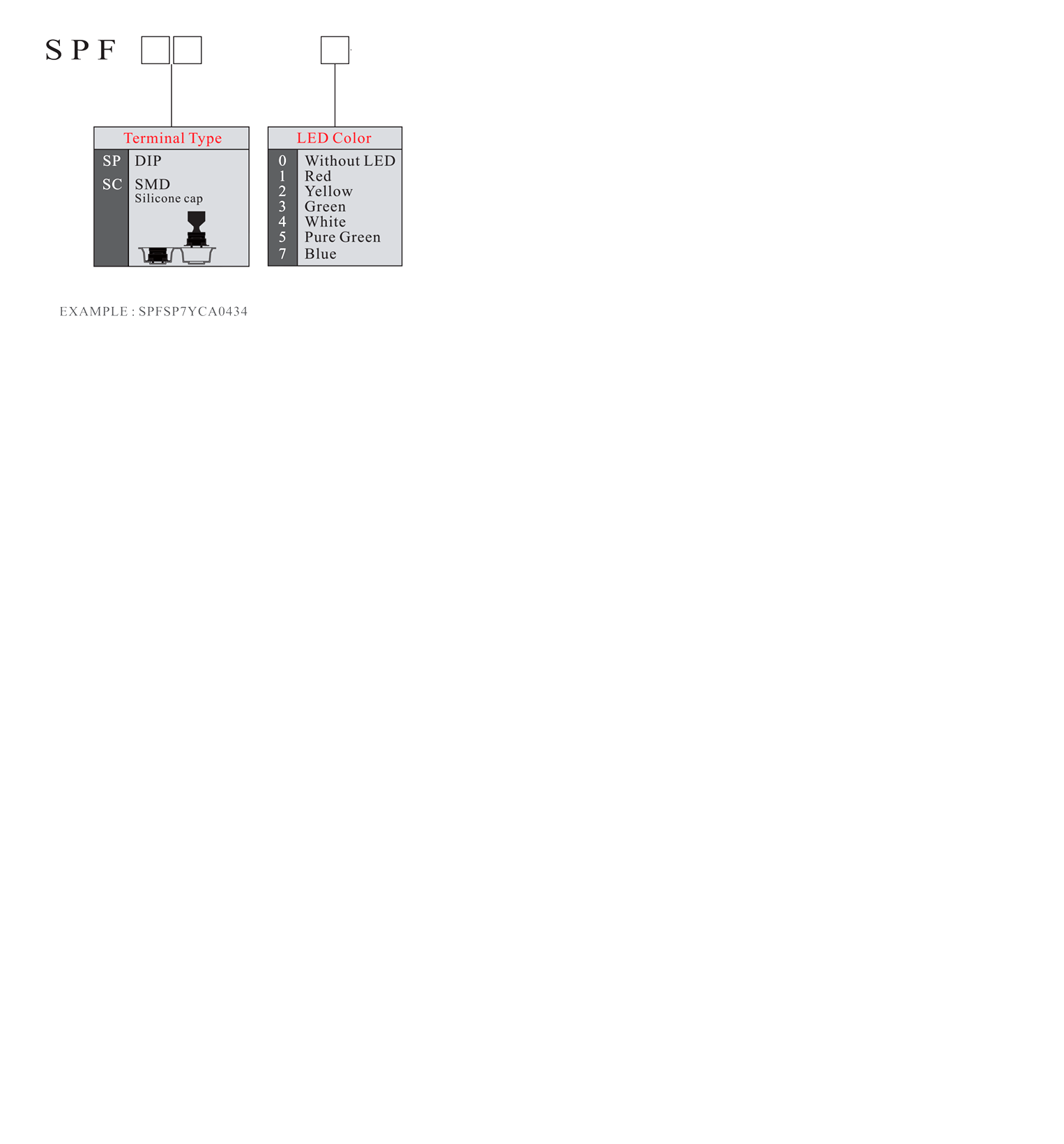

Product Series

Configuration

Terminal Options

,

Illumination

Single LED options

, , , ,

Cap / Actuator Shape

Function

,

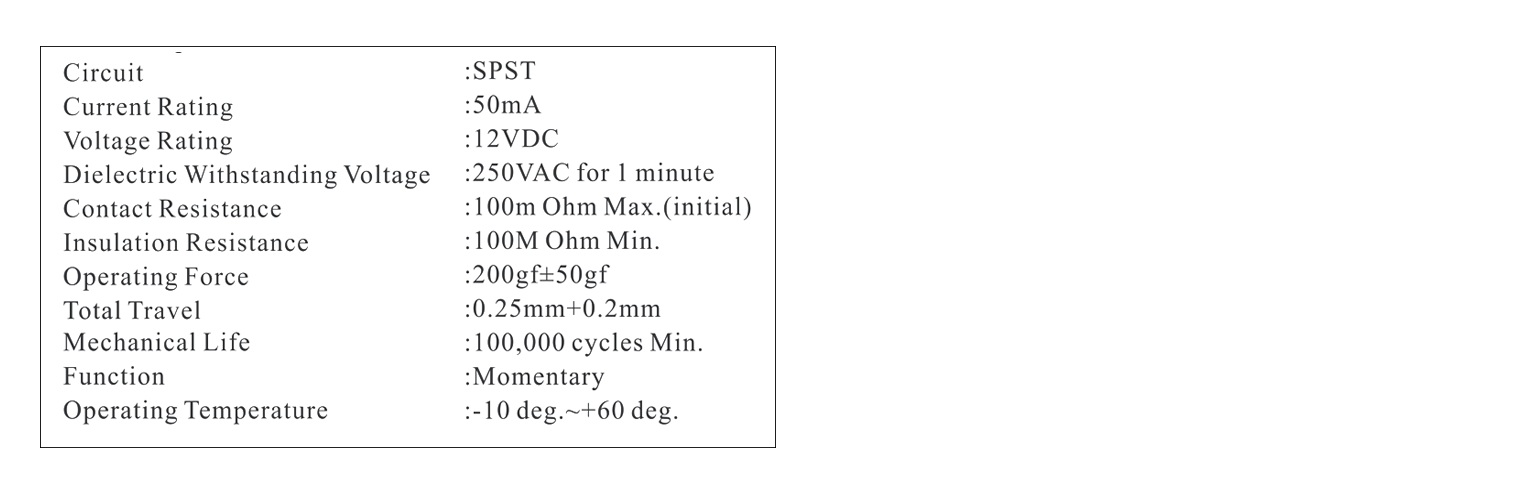

SPF-Z Series Specification



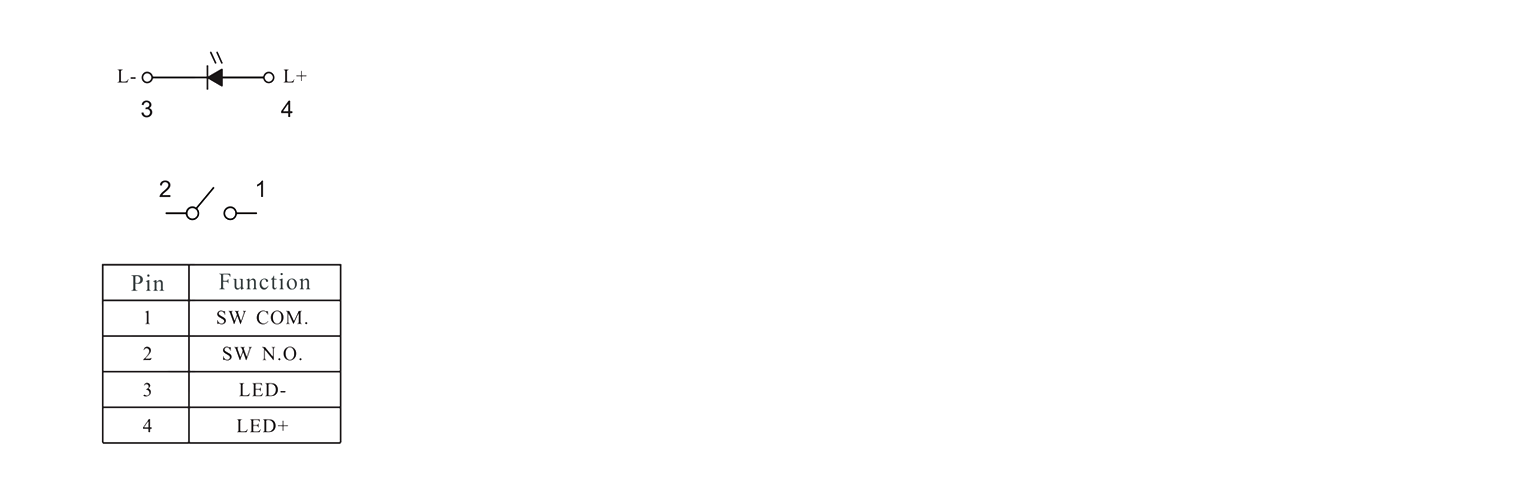

Circuit SP5T
Current rating 50mA
Voltage rating 12VDC
Dielectric withstanding voltage 250VAC for 1 minute
Contact resistance 100mOhm max(initial)
Insulation resistance 100Mohm min
Operating force 200gf+50gf
Total travel 0.25mm+0.2mm
Mechanical life 100,000 cycles min
Function Momentary
Operating temperature -10deg~+60deg

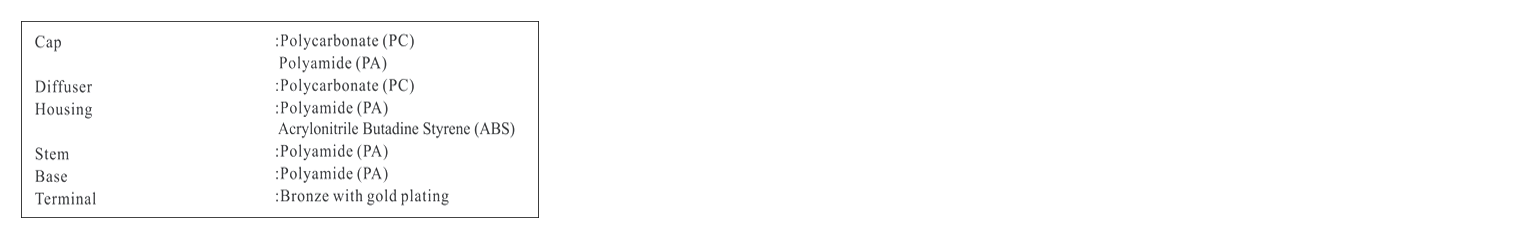

SPF-Z Series Materials



Cap Polycarbonate (PC)

Polyamide (PA)

Diffuser Polycarbonate (PC)
Housing Polyamide (PA)

Acrylonitrile butadine styrene (ABS)

Stem Polyamide (PA)
Base Polyamide (PA)
Terminal Bronze with gold plating

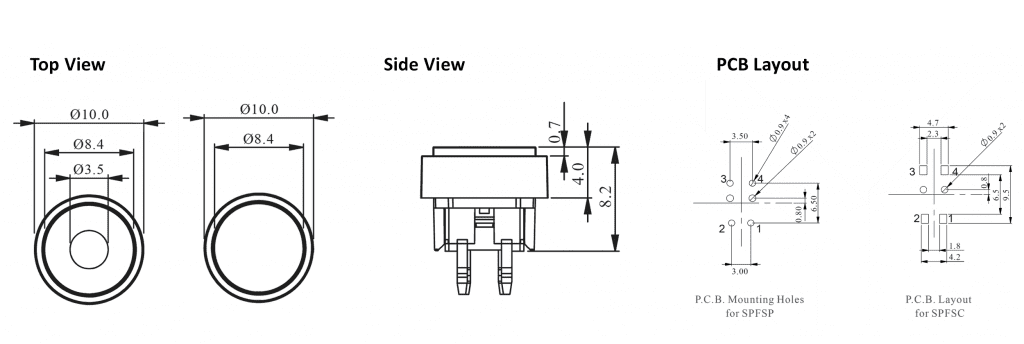

illuminated pcb switch drawing, rjs electronics ltd
