KS01-HVL

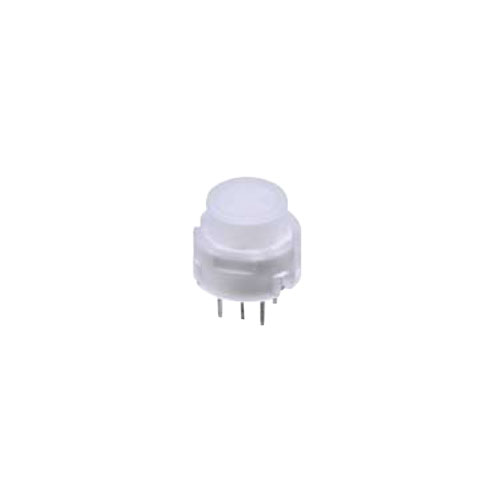

PCB Illuminated Tact Switch

Key Features:

Round LED illuminated tact switch
THT push button switch
Momentary function with a tactile click
Single/bi-colour LED illumination
Tactile switch

Applications

Audio & Visual
Broadcast
Commercial applications
Automotive
Domestic appliances

Illumination	Full Illumination
Single LED options	Blue Green, Pink, Pure Green, Purple, Blue, Green, Orange (Amber), Red, White, Yellow

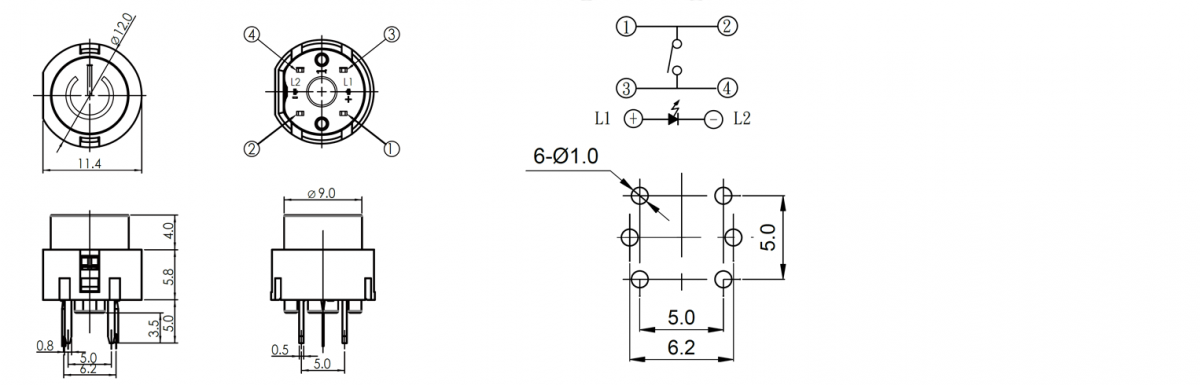

Cap Dimensions (mm)	9
Cap / Actuator Shape	Round
Terminal Options	PCB Terminals (THT)
Function	Push Button Switch, Tact Switch
Product Series	KS01 SERIES

Rating	10mA 35VDC
Insulation Resistance	100MΩ Min at 250 VDC
Dielectric Strength	AC 250V (50/60 Hz for 1 minute)
Contact Resistance	30mΩ Max. (initial)
Electrically Life	V:130gf 100,000 Cycles Min M:250gf 30,000 Cycles Min
Ambient Temperature	-20°C~ +60°C
Operating Force	V: 130 + 50gf M: 250 + 50gf
Travel	1.0 + 0.2 mm

Color	VR	IF	Recommended Operating Current	VF Nor	VF Max
Red	DC 5V	20mA	20mA	1.7V	2.4V
Green	DC 5V	20mA	20mA	1.9V	2.4V
Yellow	DC 5V	20mA	20mA	1.9V	2.4V
Blue	DC 5V	20mA	20mA	3.0V	3.6V
White	DC 5V	20mA	20mA	3.0V	3.6V
