RJSPS1622D ROUND SELECTOR

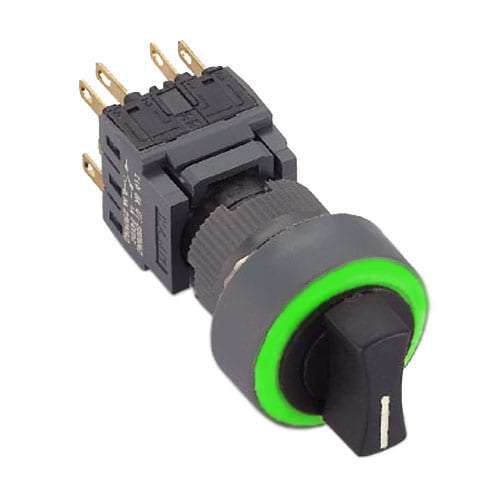

RJSPS1622D Round Selector green

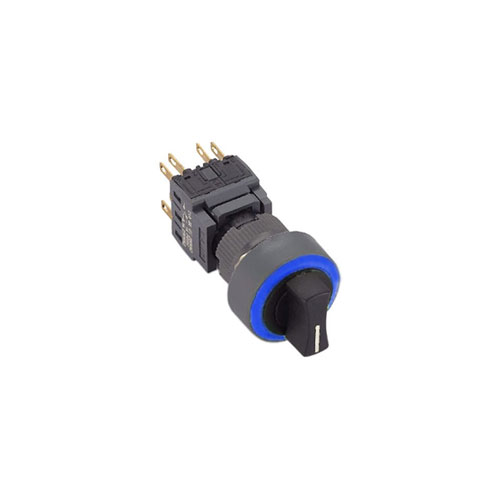

RJSPS1622D Round Selector

Non-Illuminated Selector switch

Features:

16mm round
90 ° 2 Positions / 3 Positions
Momentary / Maintained
SPDT/DPDT
Solder-lug terminals

Applications:

Audio & Broadcast
Automotive
Boat & Marine building
Home Automation
Industrial Controls

Additional information

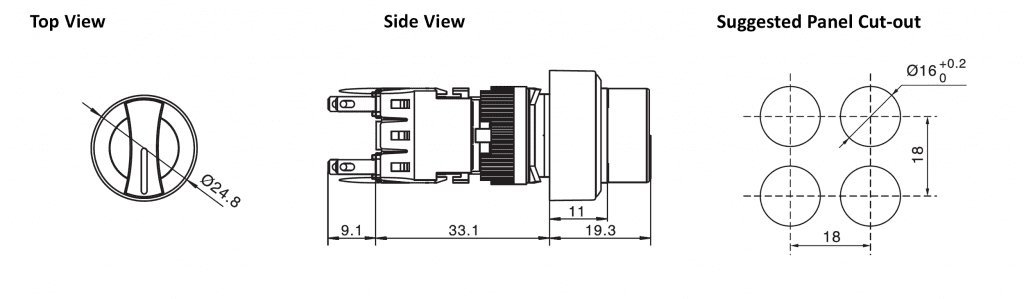

Drawings

Product Series	Selector Switch – RJSPS1622D
Terminal Options	Solder Lug Terminals
Illumination	non-illuminated
Cap / Actuator Shape	Round
Function	Selector Switch
IP Rating	IP65 (front)
Configuration	DPDT, SPDT
Single LED options	Blue, Green, Red, White, Yellow
Bezel Shape	Round
Mechanical Operations	250,000
Electrical Operations	100,000
Panel Cut-Out Diameter	Ø 16mm, Ø 22mm
