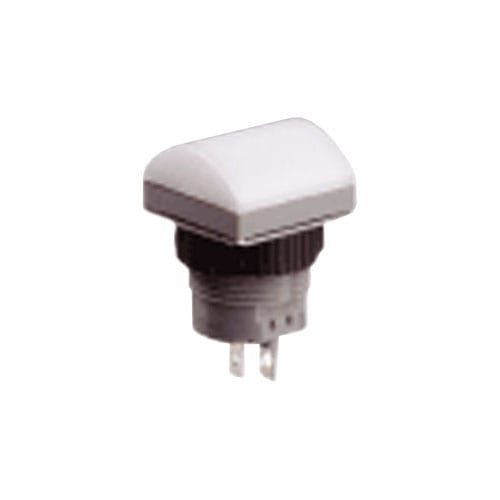

ML Square, Domed Indicator, Industrial controls LED indicator

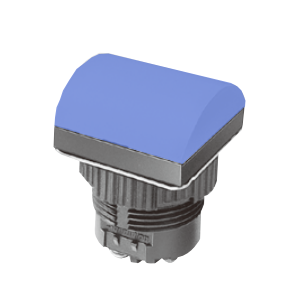

ML - Domed Square Type - Blue -LED Indicator Panel - RJS Electronics Ltd.

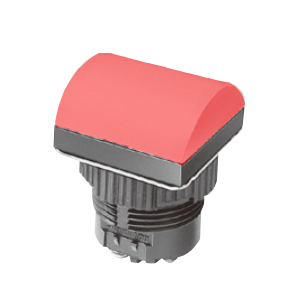

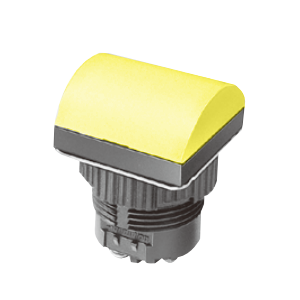

Square domed, LED Indicator

Ø 25mm panel cut out
30mm
29mm panel depth
Plastic
Round
LED Illuminated
Single/Bi-Colour LED illumination options
Connector type
Full ML series

Application:

Home automation
Industrial Controls
Audio & Broadcasting
Automotive

SKU: 1401 Categories: Indicators & Pilot Lights, Industrial Controls, LED Panel Indicator, Panel Mount

Function	LED Indicator
Illumination	Full Illumination
Bezel Shape	Square
Depth (mm)	29mm
Terminal Options	Connector type, Solder Lug Terminals
Panel Cut-Out Diameter	Ø 25mm
Single LED options	Blue, Green, Red, White, Yellow
Insulation Resistance	More than 100MΩ at 500V DC
Dielectric Strength	1500V AC RMS between terminals and ground (50/60Hz for 60sec. at normal ambiet temperature and humidity)
Multi-Colour LED Options	Red, Green, Yellow, Blue, White, Green
Product Series	ML – LED Indicator Panel

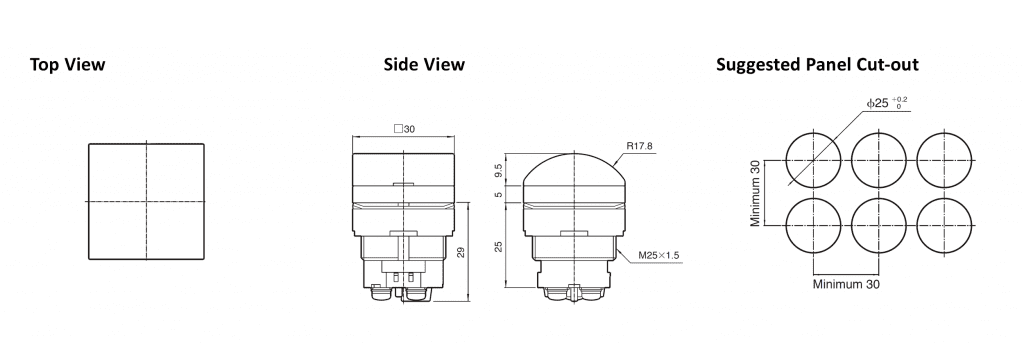

Drawing

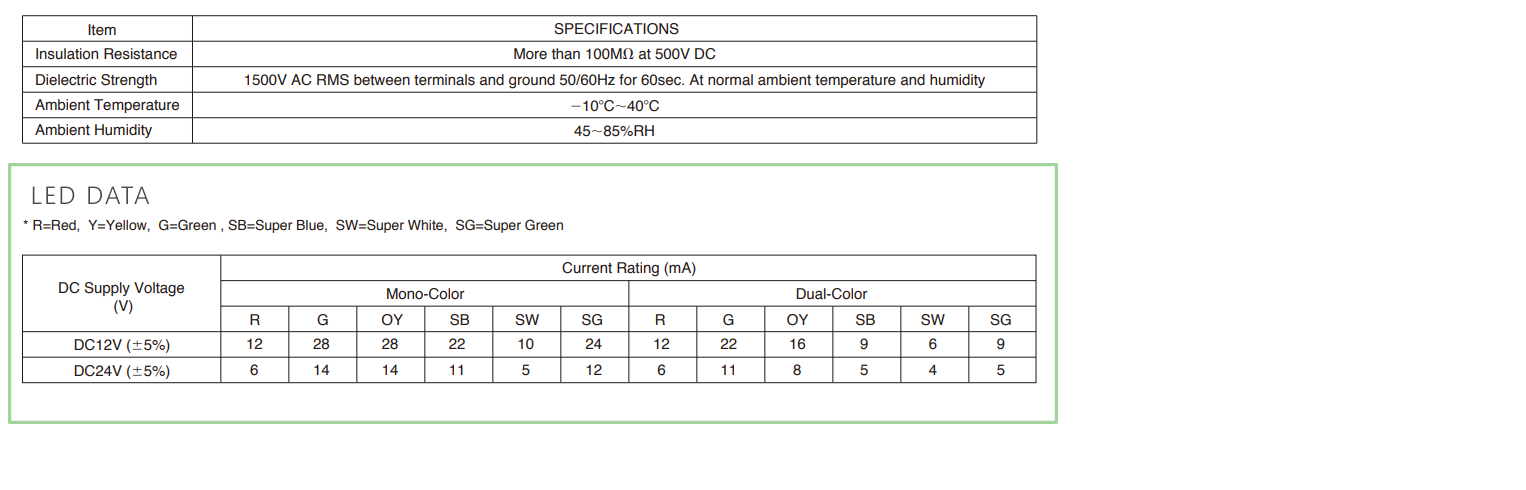

Mechanical & Electrical Specs

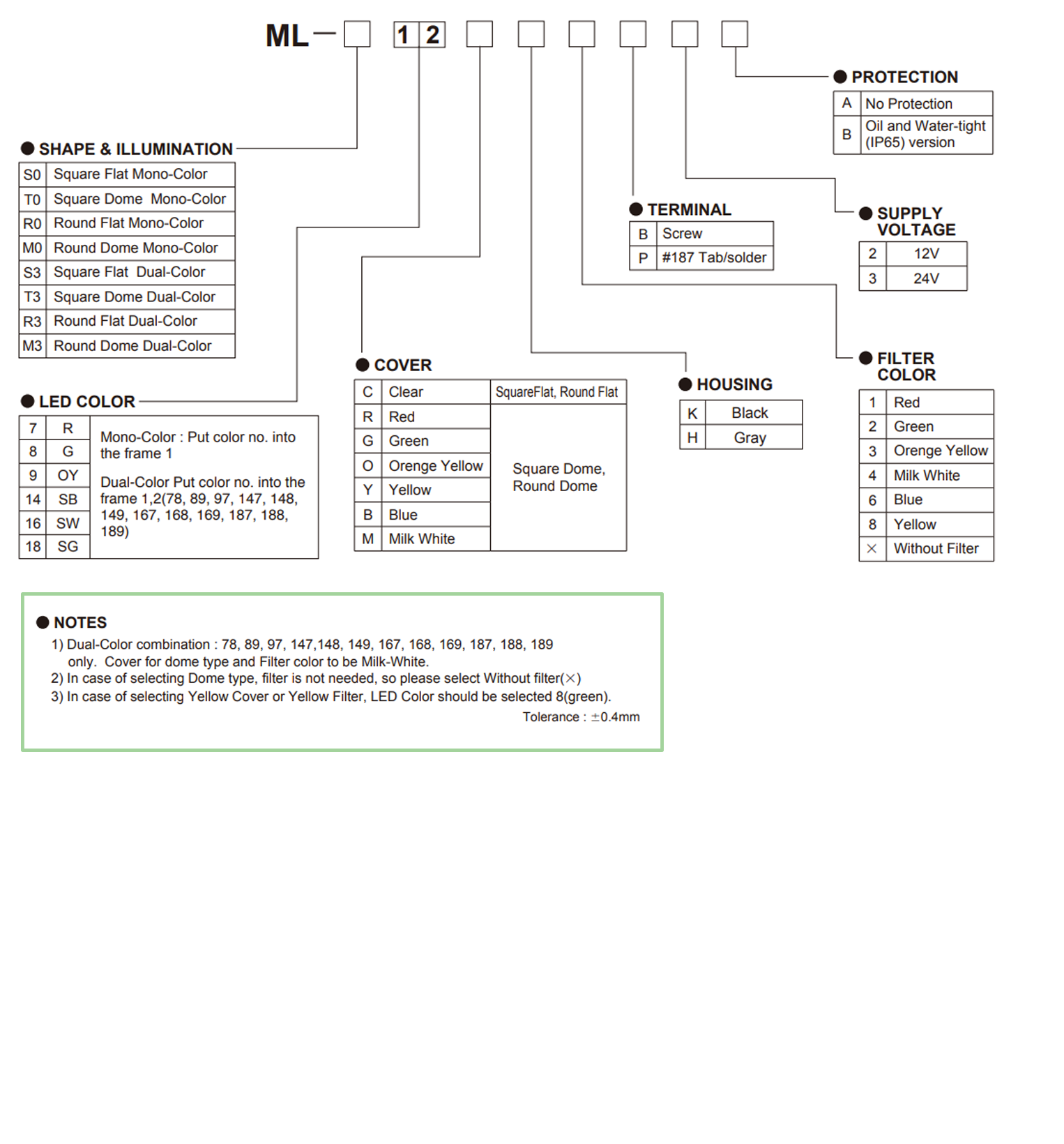

How to order
