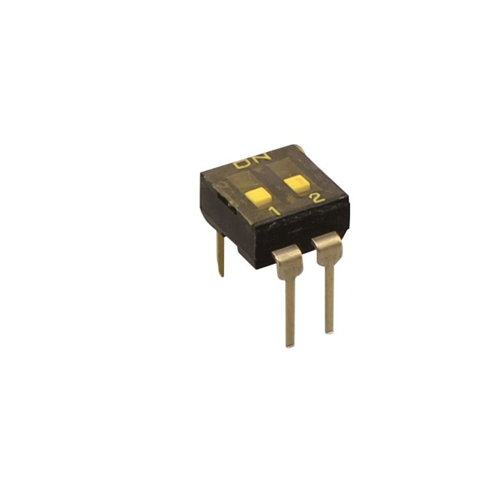

Dip Switch: RJS-DI-F01

DIP Switch

Key Features:

  • Piano type
  • Contact rating: 100mA 50vDC
  • Standard base seal
  • From 1 Pole to 12 Poles


  • Audio & Broadcast
  • Automotive
  • Boatbuilding & Marine
  • Home Automation
  • Industrial Controls

Full Drawing


Contact Rating

100mA 50VDC


Brass with gold plated

Dielectric strength

500VAC 1 minute

Insulation Resistance

100mΩ min (500VDC)

Electrical Life

2,000 cycles per position

Contact Resistance

500mΩ max

Mechanical Life

≥ 100,000 Cycles

Operating Temperature
