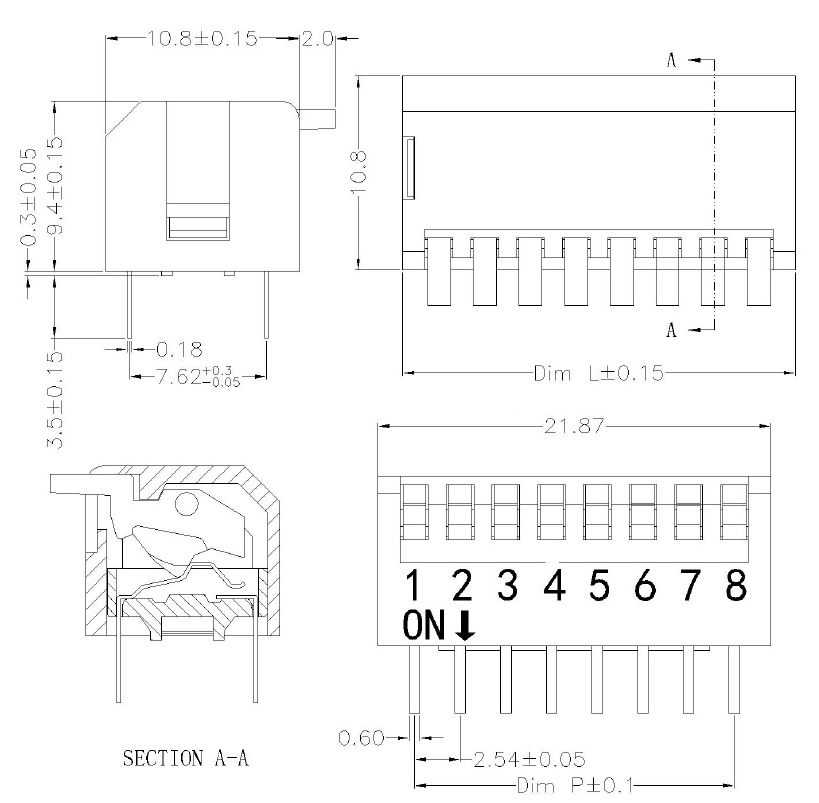

Dip Switch: RJS-DP-02

DIP Switch

Key Features:

  • SMD Type / Through Hole Type / Right Angle Type
  • From 1 Pole to 12 Poles

Applications:

  • Audio & Broadcast
  • Automotive
  • Boatbuilding & Marine
  • Home Automation
  • Industrial Controls
Function

Contact Rating:

100mA 50VDC

Terminal:

Brass with gold plated

Dielectric strength:

500VAC 1 minute

Insulation Resistance:

100mΩ min (500VDC)

Electrical Life:

2,000 cycles per position

Contact Resistance:

500mΩ max

Mechanical Life:

≥ 100,000 Cycles

Operating Temperature:

-25℃~+85℃
