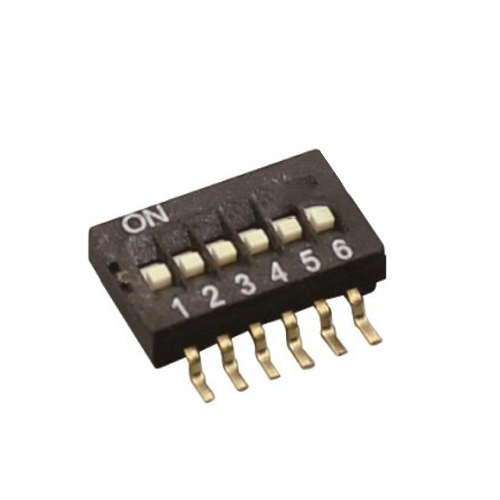

Dip Switch: RJS-DM-1.27.02

DIP Switch

Key Features:

  • Dip Switch calculator has 2 positions
  • From 1 Pole to 12 Poles


  • Audio & Broadcast
  • Automotive
  • Boatbuilding & Marine
  • Home Automation
  • Industrial Controls

Full Drawing


Mechanical Operations

Electrical Operations

Terminal Options

Contact Resistance

500mΩ max

Dielectric strength

500VAC 1 minute

Insulation Resistance

100mΩ min (500VDC)

Operating Temperature


Contact Rating

100mA 50VDC
