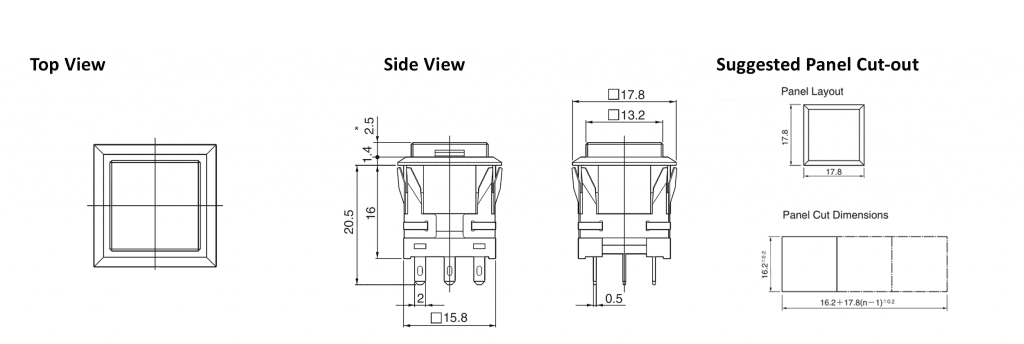

This Super Miniature Illuminated Push Button Switch features a square plastic actuator with LED illumination. It is available with full-face, split-face or dual-colour illumination and accessories can also be added.
Key Features:
| Function | Plastic Push Button Switch, Momentary Switch, Latching Switch |
|---|---|
| Illumination | Dual Colour Illumination, Split Face Illumination, Full Illumination |
| Single LED options | |
| Depth (mm) | |
| Terminal Options | |
| Mechanical Life (Momentary) | 1,000000 |
| Mechanical Life (Latching) | 2,000000 |
| Electrical Operations | |
| Dielectric Strength | 600V AC RMS between NC and NO terminal |
| Product Series |

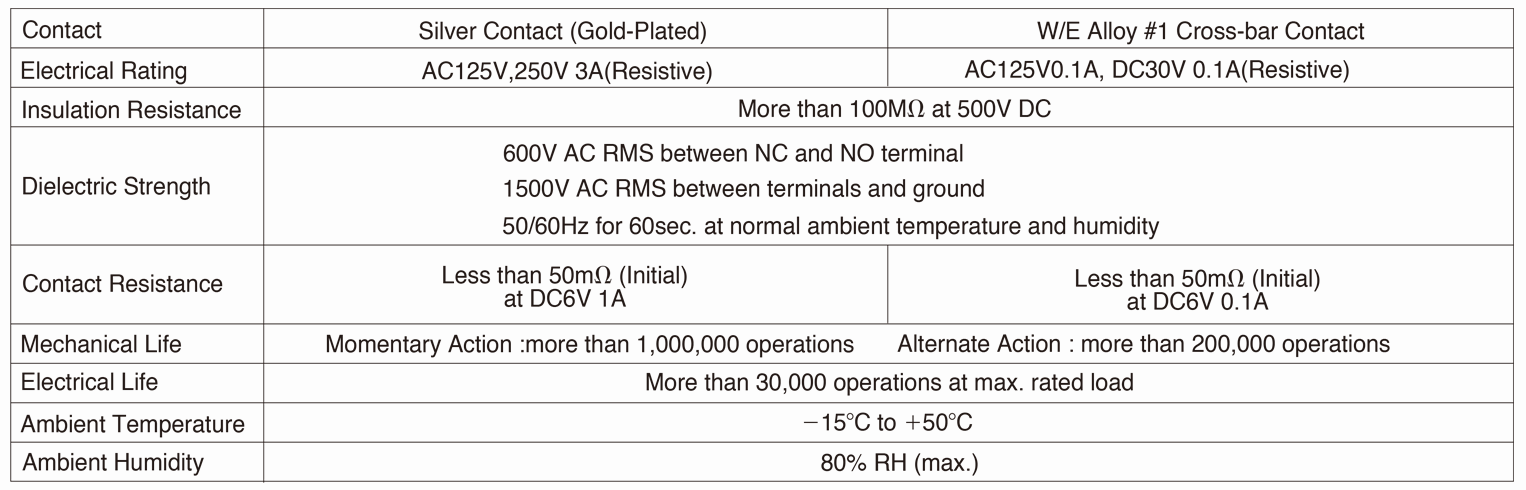

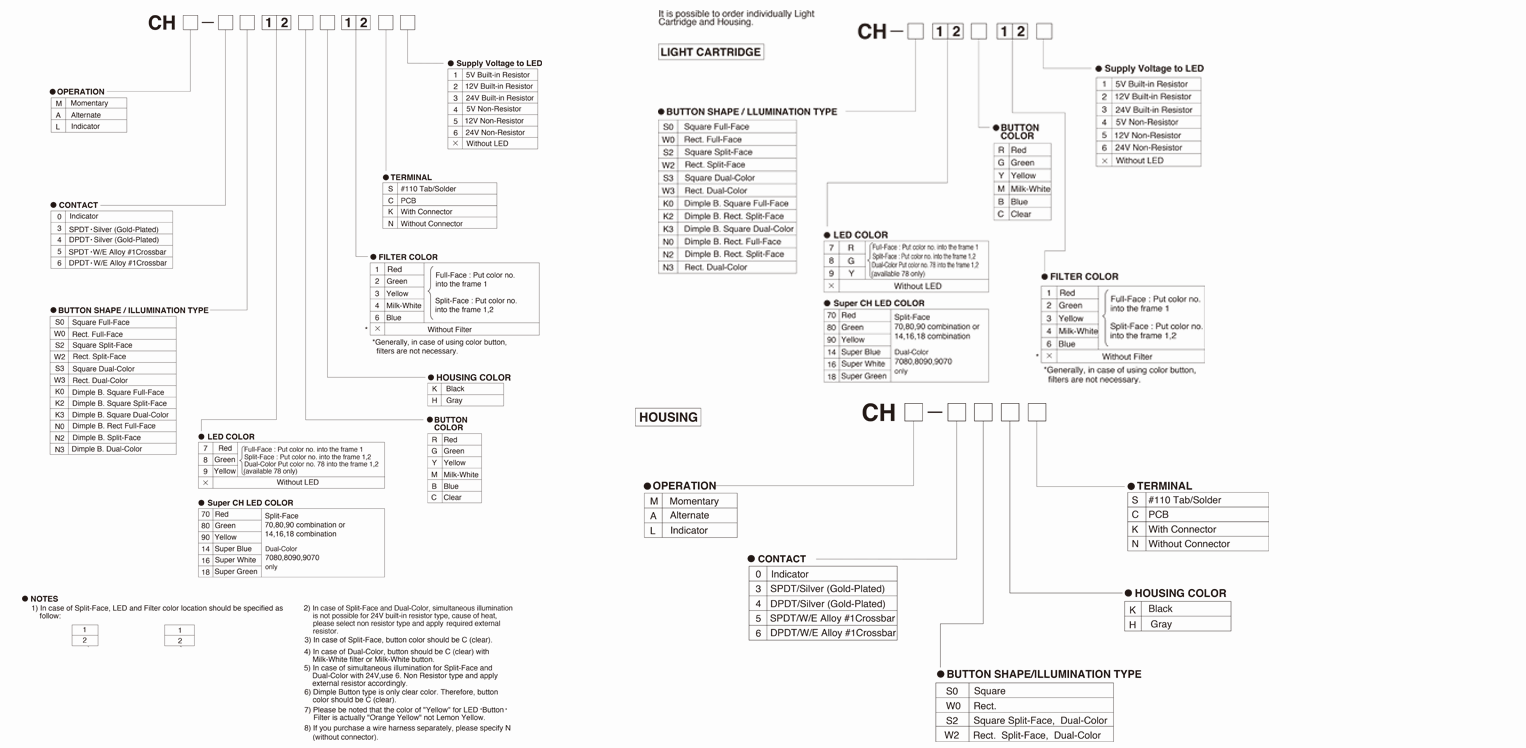

CH Series specifications
| Contact | Silver contact (gold-plated) | W/E alloy #1 cross-bar contact |
| Electrical rating | AC 125V, 250V 3A (resistive) | AC125V0.1A, DC30V 0.1A (resistive) |
| Insulation resistance | More than 100MΩ at 500V DC | |
| Dielectric strength | 600V AC RMS between NC and NO terminal
1500V AC RMS between terminals and ground 50/60Hz for 60sec. at normal ambient temperature and humidity |
|
| Contact resistance | Less than 50mΩ (initial) at DC6V 1A | Less than 50mΩ (initial) at DC6V 0.1A |
| Mechanical life | Momentary Action: more than 1,000,000 operations
Alternate Action: more than 200,000 operations |
|
| Electrical life | More than 30,000 operations at max. rated load | |
| Ambient temperature | -15°C~+50°C | |
| Ambient humidity | 80% RH (max) | |
