| Function | |
|---|---|
| Electrical Operations | |
| Illumination | |
| Insulation Resistance: | 100MΩ min @500 VDC |
| Contact resistance: | 100mΩ max |
| Dielectric Strength | 500 VAC/ 1minute. |
| Product Series | |
| Mechanical Operations |

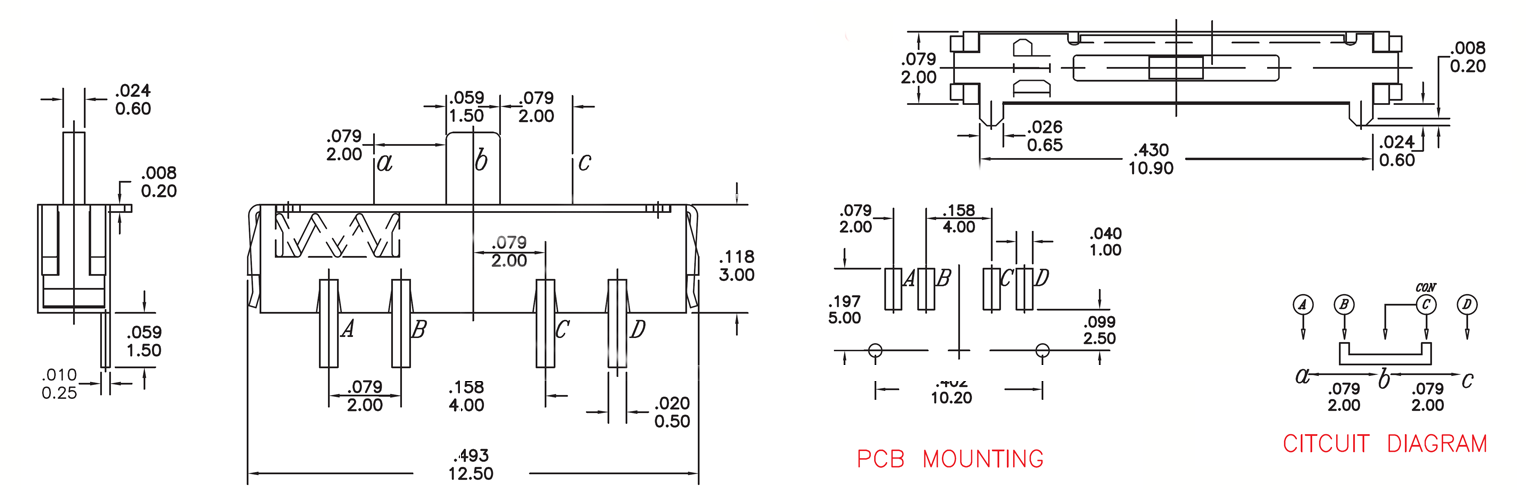

This Ultra-miniature Slide Switch has vertical PCB mounting and an SPDT configuration. It has a rating of DC 12V 100mA and a height of 2mm.
Key Features:
| Function | |
|---|---|
| Electrical Operations | |
| Illumination | |
| Insulation Resistance: | 100MΩ min @500 VDC |
| Contact resistance: | 100mΩ max |
| Dielectric Strength | 500 VAC/ 1minute. |
| Product Series | |
| Mechanical Operations |
| Contact rating | DC 12V 100mA |
| Function | 1P2T |
| Contact resistance | 100 mΩ max. |
| Insulation resistance | 50 MΩ min |
| Operation force | 150+50gf |
| Travel to closure | 1.3mm+0.2mm |
| Practical temperature range | -10°C to +50°C. |
