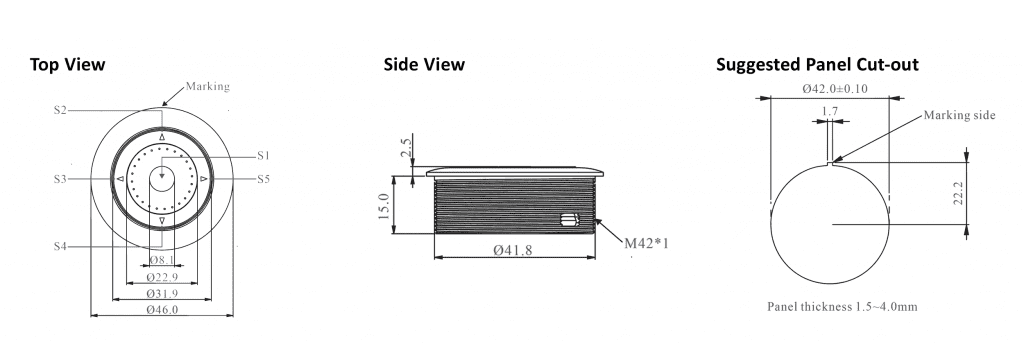

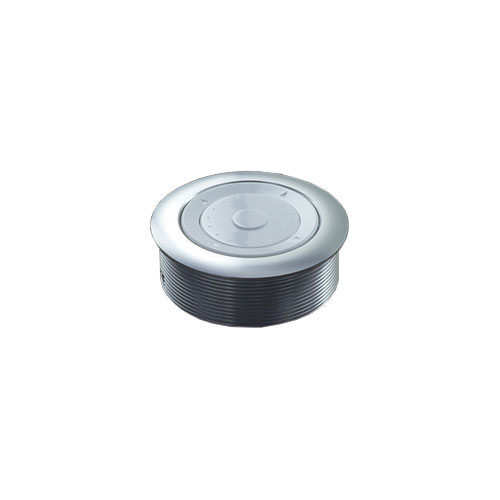

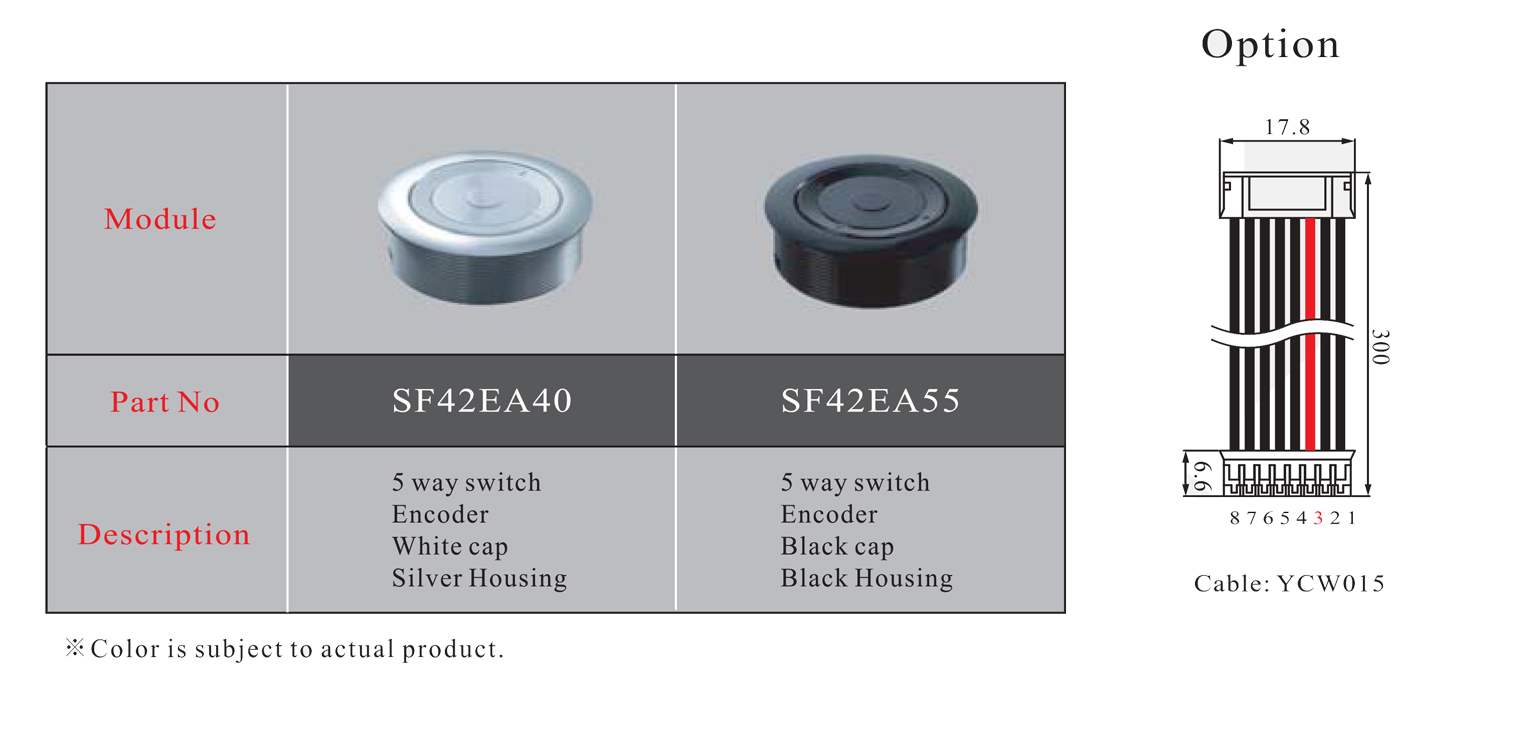

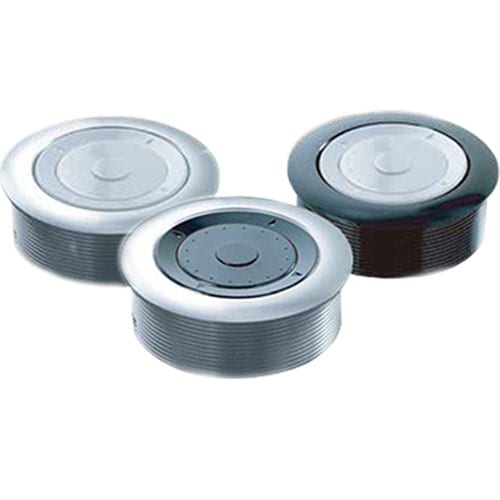

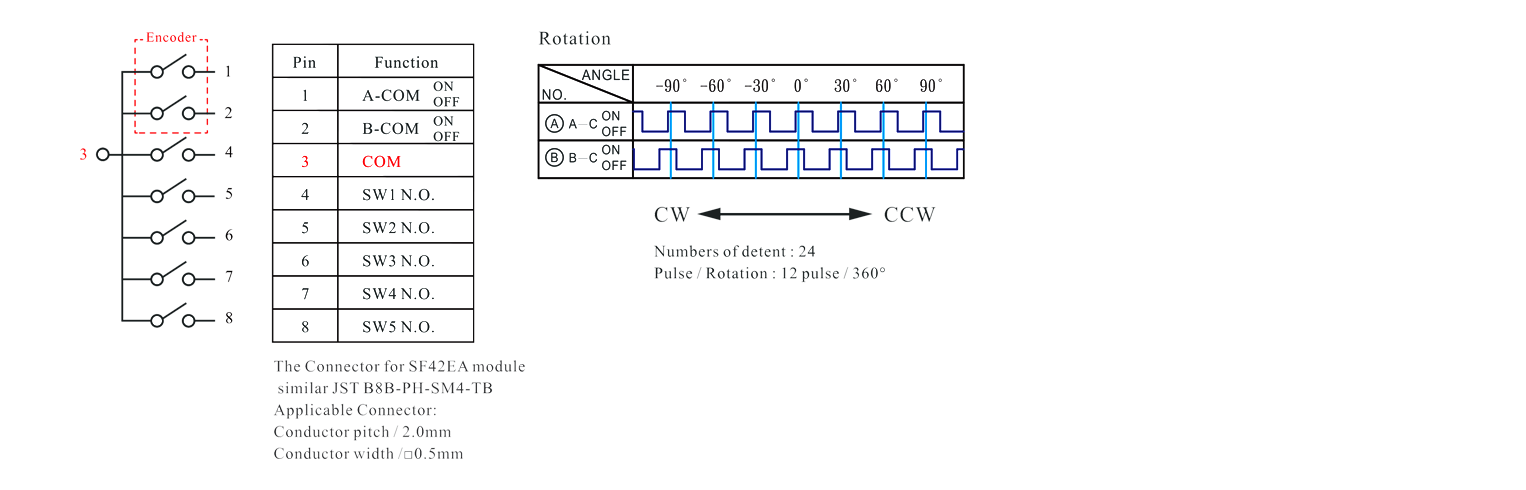

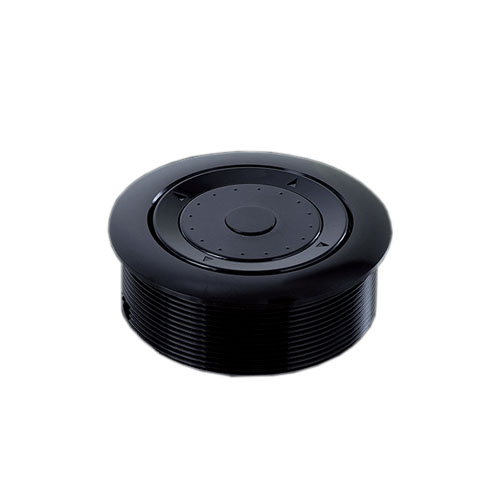

This Multifunctional Rotary Encoder Navigation Switch features 360° rotation and a 5-way tactile switch function. It is non-illuminated and has 24 detents.
Key Features:
| Product Series | |
|---|---|
| Function | |
| Panel Cut-Out Diameter | |
| Configuration | |
| Illumination | |
| Terminal Options | |
| Switch Travel | |
| Mechanical Operations |
|
SF42EA-Z Series Specification
|
|
| Current rating | 1mA |
| Voltage rating | 10VDC with resistive load |
| Vibration resistance | 10-55Hz, displacement 0.75mm(p-p) |
| Contact resistance | Max. 300mΩ (measured by ohm meter- open voltage <1 VDC |
| Insulation resistance | Min 100MΩ (100VDC/minute) |
| Operating force | 5-way switch max. 300gf
Encode torque max. 60gf-sm |
| Mechanical life | Rotation -min 2,000,000 operations
(C.W 1,000,000 & C.C.W 1,000,000 operations) |
| Operating frequency | Rotation -max 30 operations per minute
Push -max 120 operations per minute |
| Operating temperature | 0deg~+40deg |
|

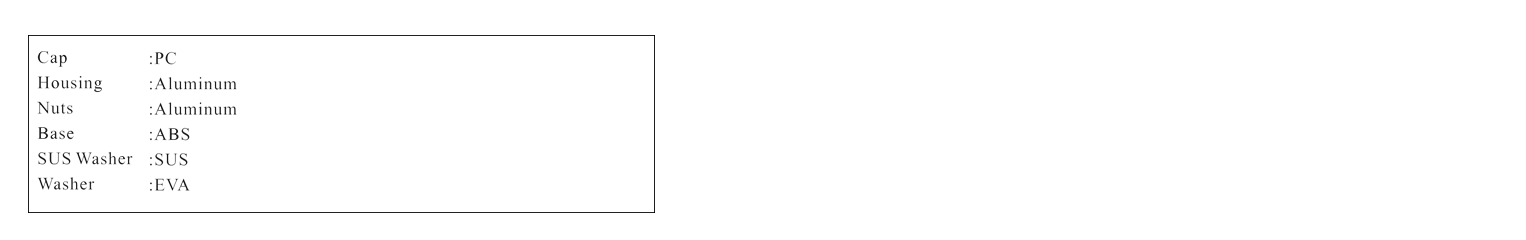

SF42EA-Z Series Materials
|
|
| Cap | PC |
| Housing | Aluminium |
| Nuts | Aluminium |
| Base | ABS |
| SUS washer | SUS |
| Washer | EVA |
