3MSeries - 3A - M7 - DPDT - HORIZONTAL - Rocker Switches, Panel Mount switches. Panel Mount, momentary functioning Rocker switches by RJS Electronics Ltd, Rocker Switches, on off switch, plastic, metal, PCB, panel mount switch, available with and without LED illumination, IP rated, miniature sealed rocker and paddle switch, SPDT – 3PDT. RJS Electronics Ltd.

Rocker Switch: 3M-M7-DPDT

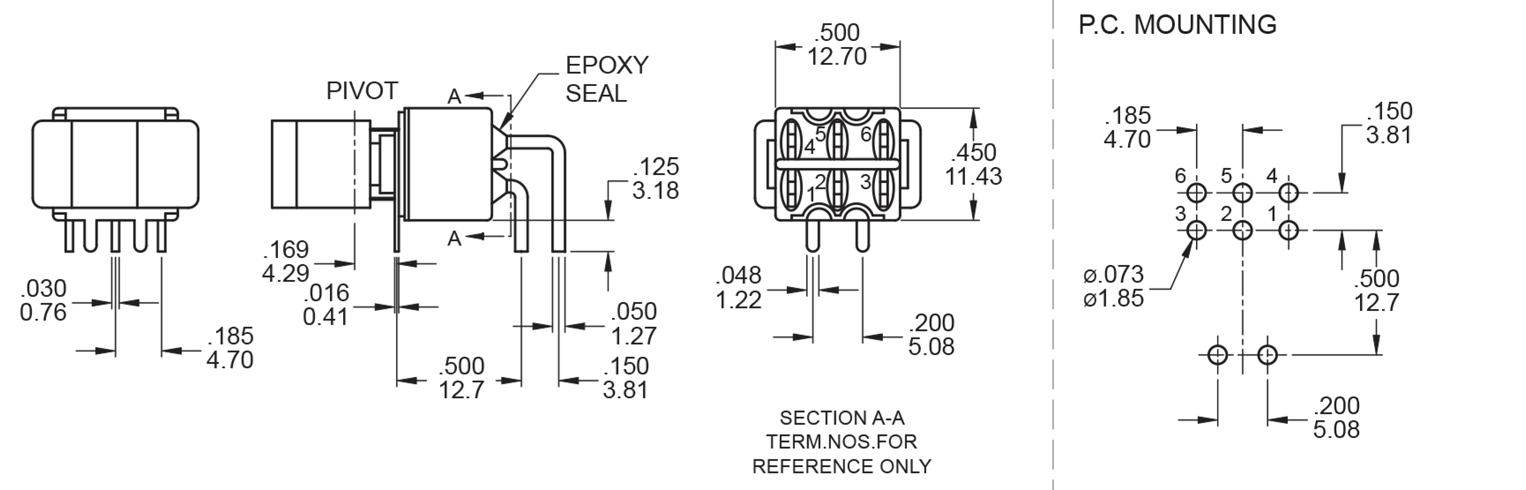

This PCB Rocker Switch features a horizontal actuator, with right angle mounting and a DPDT configuration. Momentary or latching function is available, in 2 or 3 positions.

Key Features:

  • Rocker switch
  • Right angle mount
  • 2 or 3 positions
  • Momentary or latching
  • DPDT
  • Contact rating up to 5A
  • Full 3M series
Data Sheet
Function

Illumination

Mechanical Operations

Product Series

Dielectric Strength:

1,000 Vrms min.@sea level.
Contact Resistance:

10 m Ω max. initial @ 2-4VDC, 1 00mA for both silver and gold plated contacts.
Insulation Resistance:

1,000 MΩ min.
