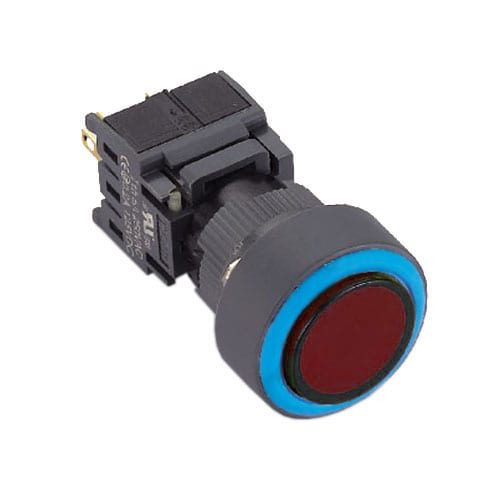

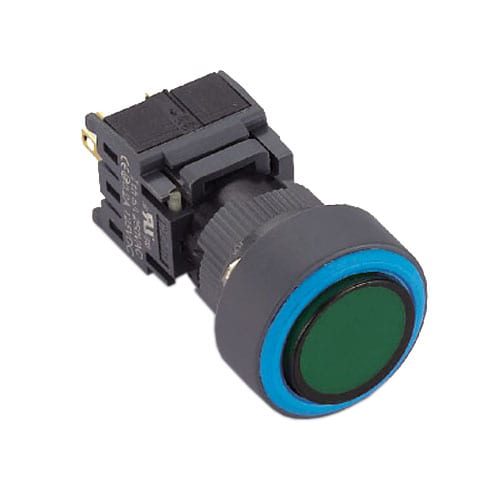

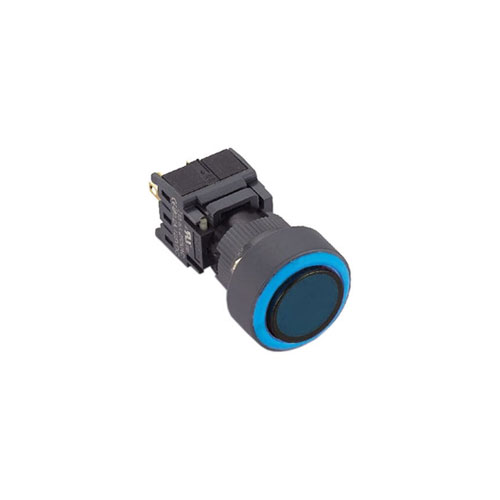

RJSPS1622D Round Push Button

This Round Push Button Switch features a plastic actuator with a plastic frame and a 16mm panel cut out.

Key Features:

Product Series	RJSPS1622D
Function	Push Button Switch, Momentary Switch, Latching Switch
Cap / Actuator Shape	Round
Illumination	Full Illumination
Orientation	Straight (Vertical)
Terminal Options	Solder Lug Terminals
Configuration	DPDT, SPDT, 3NO3NC (3PDT)

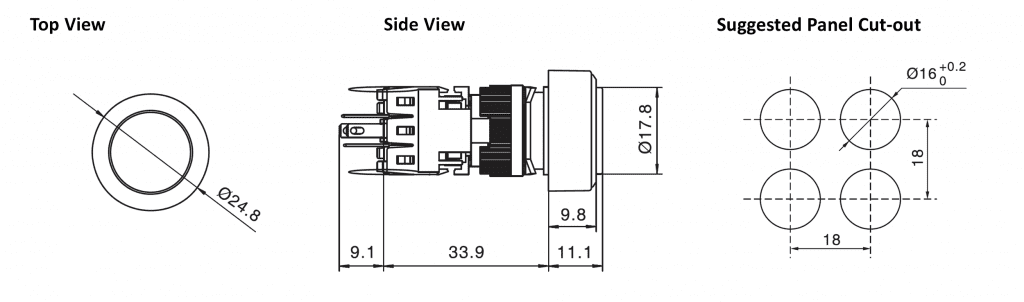

Panel Cut-Out Diameter	Ø 16mm, Ø 22mm
Single LED options	Blue, Green, Red, White, Yellow
IP Rating	IP65 (front)
