RJSPS12A Round Switch 12mm Plastic Push Button Switch, panel mount switch with illumination. Single LED Illumination: Red, Green, Yellow, Blue, Orange and White. Plastic Push Button switch with LED illumination, choose from momentary or latching switch, Led Switches, RJS Electronics Ltd
RJSPS12A Round Switch - Image 2
RJSPS12A Round Switch - Image 3
RJSPS12A Round Switch - Image 4

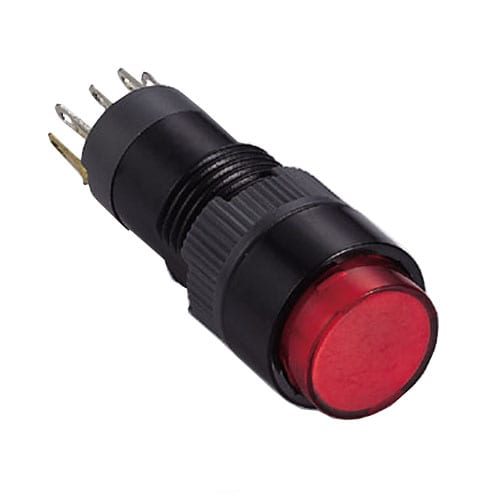

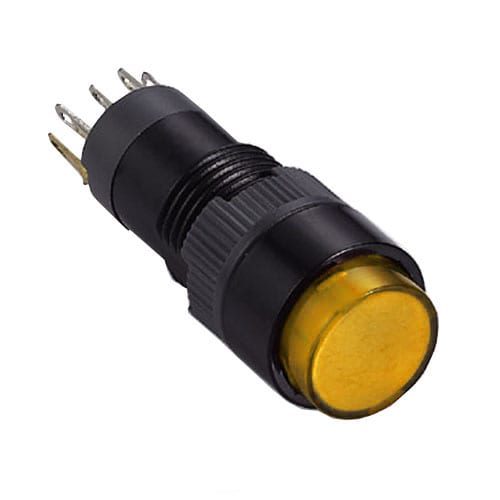

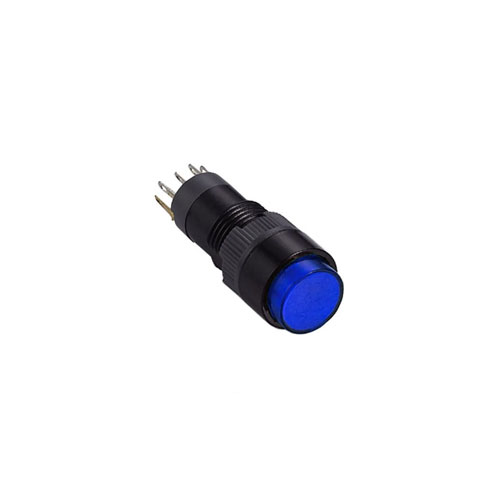

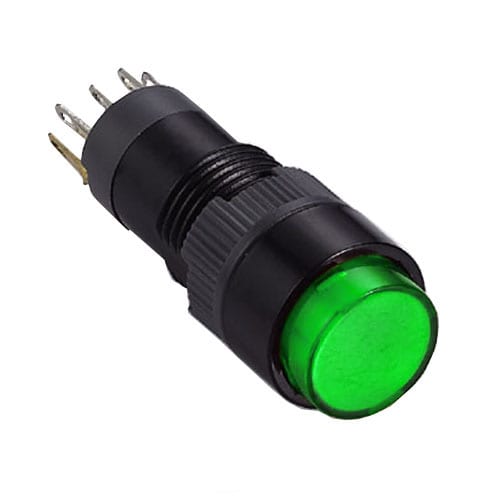

RJSPS12A Round Switch

This 12mm Round Push Button Switch features a plastic actuator and full LED illumination. It has a momentary or latching function and is IP40 rated (from the front).

Key Features:

  • Ø 12mm
  • Plastic round
  • SPDT
  • LED illuminated
  • Solder-lug terminals
Data Sheet
Terminal Options

Illumination

Cap / Actuator Shape

Function

IP Rating

Single LED options

, , , , ,

Panel Cut-Out Diameter

Product Series

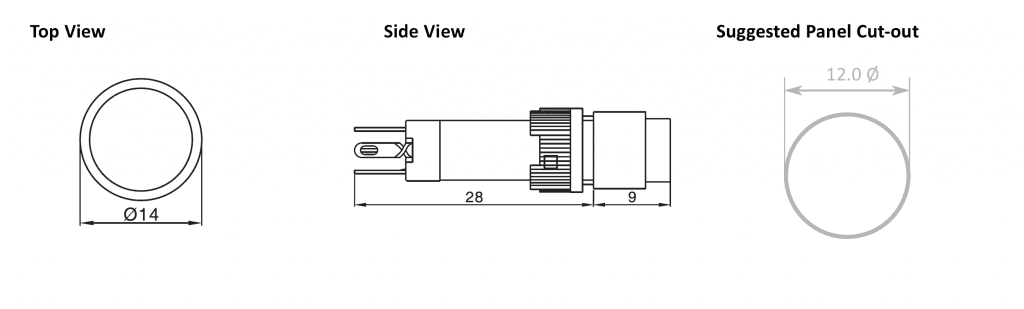

Drawing of RJSPS12A Round Switch, plastic push button switch, rjs electronics ltd
