SPG3 (12mm Flat)

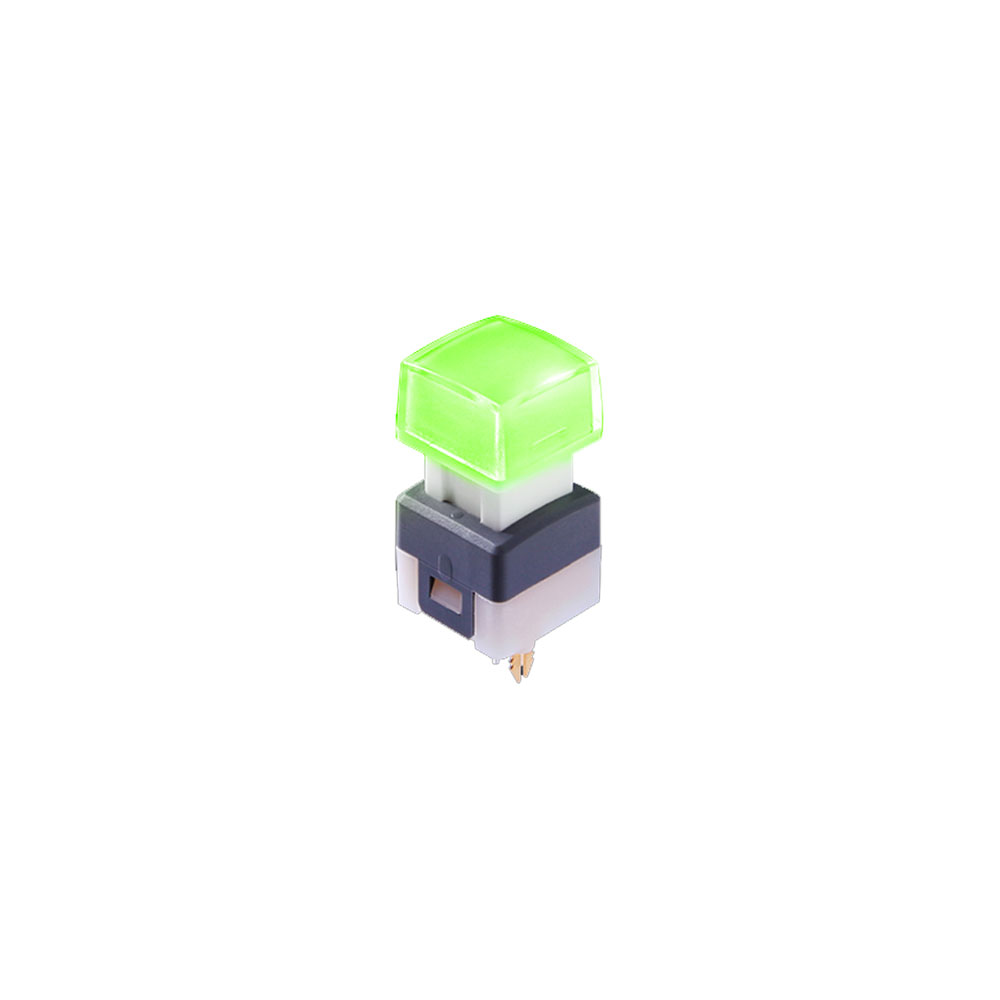

This PCB Push Button Broadcast Switch features full face LED illumination, momentary function and a silent push. Choose single, bi-colour or RGB illumination. Compatible with Smart Caps.

Key Features:

  • LED illuminated push button switch
  • Momentary function
  • Single / bi-colour or RGB LED Illumination
  • 12mm flat cap
  • Silent push
Product Series

Configuration

Illumination

, ,

Single LED options

, , , ,

Multi-Colour LED Options

,

Cap / Actuator Shape

,

Cap Dimensions (mm)

Orientation

Function

,



SPG-Z Series Specification



Current rating 50mA
Voltage rating 48VDC
Contact resistance 100mOhm max.(initial)
Insulation resistance 100MOhm min
Operating force 250gf + 50gf (S1~4)
Total travel 4.5mm + 0.20mm
Mechanical life 5,000,000 cycles min
Solder specifications 260 deg for 3 seconds
Function Momentary (SPST)
Operating temperature -25deg~+70deg


SPG-Z Series Materials



Cover Polycarbonate (PC)
Cap Polycarbonate (PC)
Reflector Polyoxymethylene (POM)
Base cap Polyamide (PA)
Moving contact Phosphor bronze with gold plating
Base Polyamide (PA)
Terminal Brass with gold plating
Spring Piano wires
Rubber washer NBR

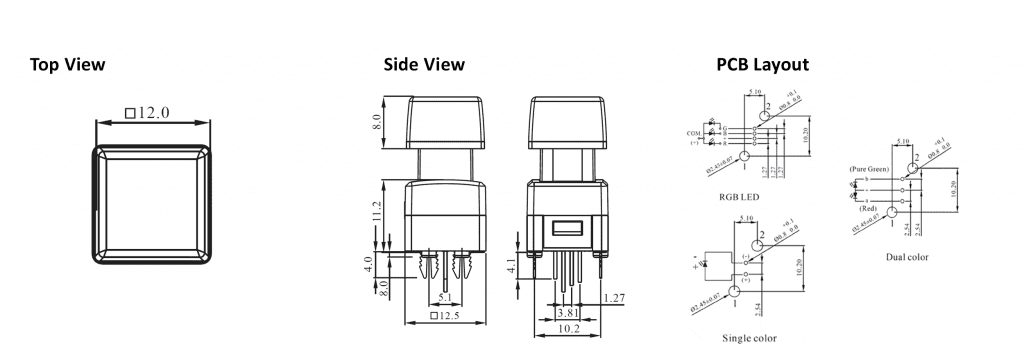

Drawing of SPG3 (12mm Flat) LED illuminated PCB Push Button Broadcast switch, rjs electronics ltd
