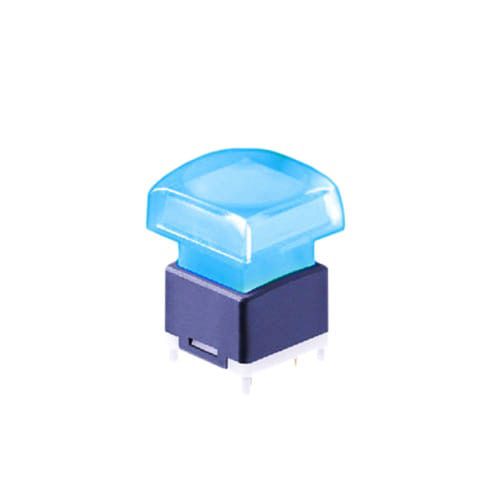

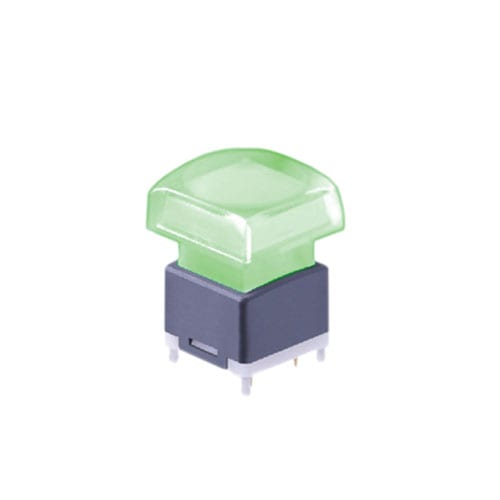

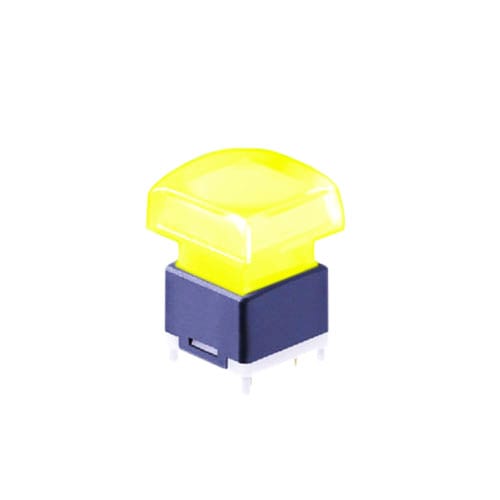

SPG1 SPG2 Square 15mm Push Button Switch BLUE

SPG1 / SPG2 Square

PCB Push Button Broadcast switch

Key Features:

LED illuminated broadcast switch
Momentary function
Single/Dual/RGB LED illumination
15mm square cap

Applications

Audio & Visual
Broadcast
Commercial applications

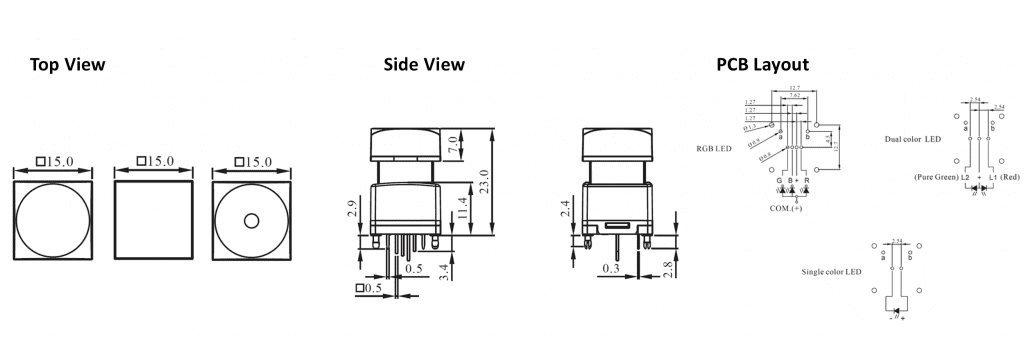

Product Series	SPG
Configuration	1NO (SPST) [push to make]
Single LED options	Blue, Green, Red, White, Yellow
Cap / Actuator Shape	Concave, Flat
Cap Dimensions (mm)	15
Function	Push Button Switch, Momentary Switch
Multi-Colour LED Options	(RGB) Red/Green/Blue

SPG-Z Series Specification
Current rating	50mA
Voltage rating	48VDC
Contact resistance	100mOhm max.(initial)
Insulation resistance	100MOhm min
Operating force	250gf + 50gf (S1~4)
Total travel	4.5mm + 0.20mm
Mechanical life	5,000,000 cycles min
Solder specifications	260 deg for 3 seconds
Function	Momentary (SPST)
Operating temperature	-25deg~+70deg

SPG-Z Series Materials
Cover	Polycarbonate (PC)
Cap	Polycarbonate (PC)
Reflector	Polyoxymethylene (POM)
Base cap	Polyamide (PA)
Moving contact	Phosphor bronze with gold plating
Base	Polyamide (PA)
Terminal	Brass with gold plating
Spring	Piano wires
Rubber washer	NBR
