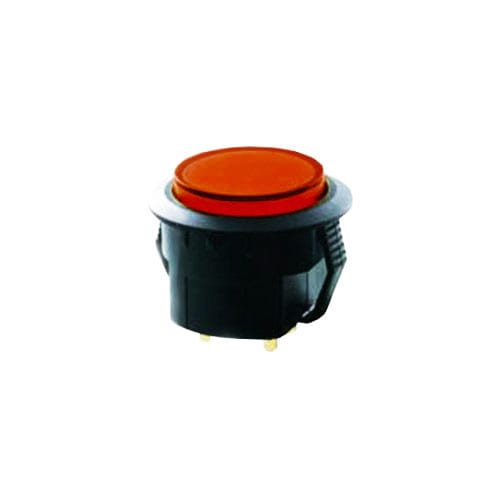

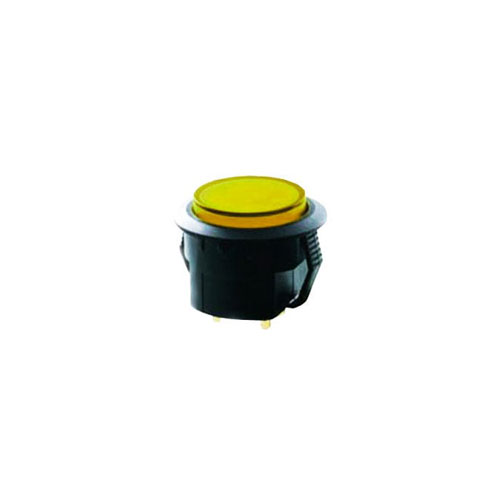

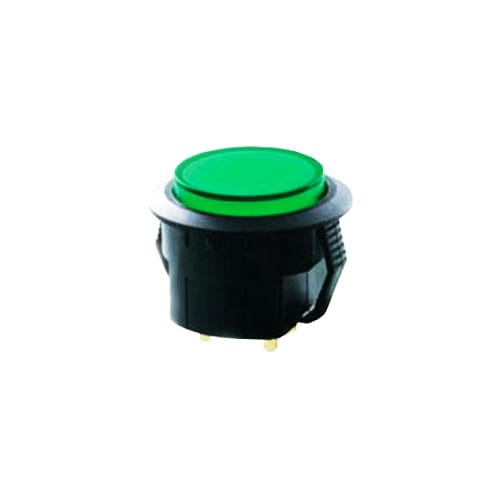

This round PCB Push Button Switch features full face LED illumination and can have a momentary or latching function. Choose from single colour or RGB illumination. Compatible with Smart Caps.

Key Features:

  • LED illuminated push button switch
  • Momentary/latching function
  • Single/bi-colour or RGB LED Illumination
  • 11.8mm² square or 11.8mm x 16.9mm
  • Compatible with Smart Caps.
  • Through hole or panel mount style
Product Series

Configuration

,

Function

, ,

Illumination

Multi-Colour LED Options

Cap / Actuator Shape

,

Switch Travel

Single LED options

, , , ,



SPC Series Specification



Circuit SPDT or DPDT
Rating 3A. 125/250 V AC or 3A@30 VDC
Contact resistance 50mOhm max.(initial)
Insulation resistance 200MOhm min
Operating force Single pole: 190gf+50gf

Double pole: 200gf+50gf

Total travel 2.3mm+0.5mm
Mechanical life 1,000,000 cycles min. for Momentary

200,000 cycles min. for Alternate

Electrical life 10,000 cycles min. for silver alloy contact
Operating temperature -25deg~+50deg
Function Momentary or alternate


SPC Series Materials



Cap Polycarbonate (PC)
Housing Polyamide (PA)
Snap-in frame Stainless steel
Switch/LED terminal Phosphor bronze (PBS) with gold plating
Movable contacts Silver alloy
Spring Piano wire
Base Polyamide (PA)
LED Surface type LED

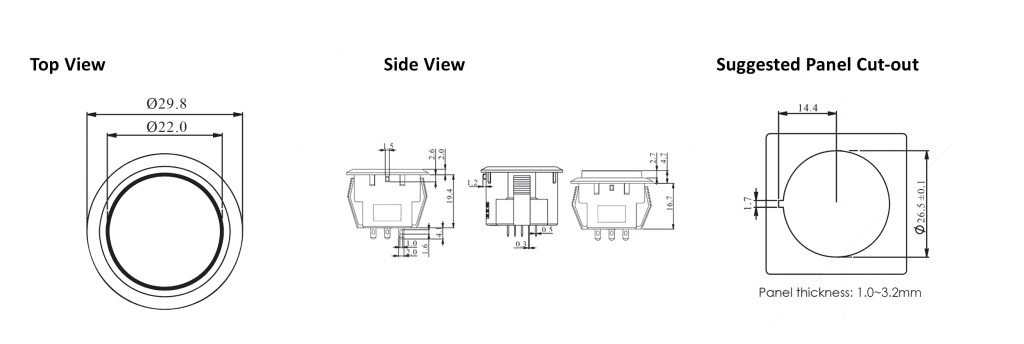

Drawing of SPCGSB LED illuminated push button switch, pcb broadcast switch, rjs electronics ltd
