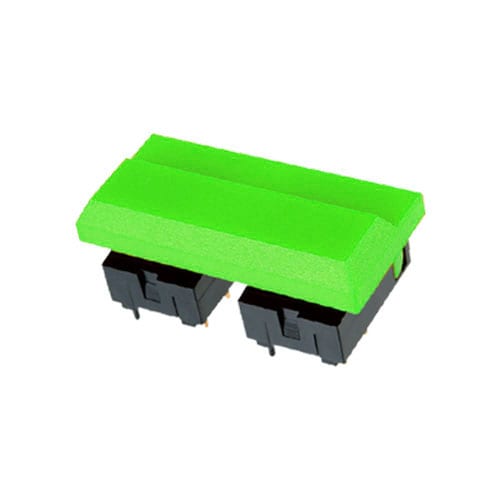

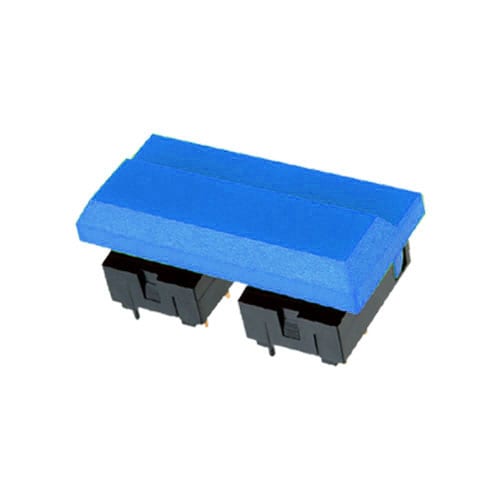

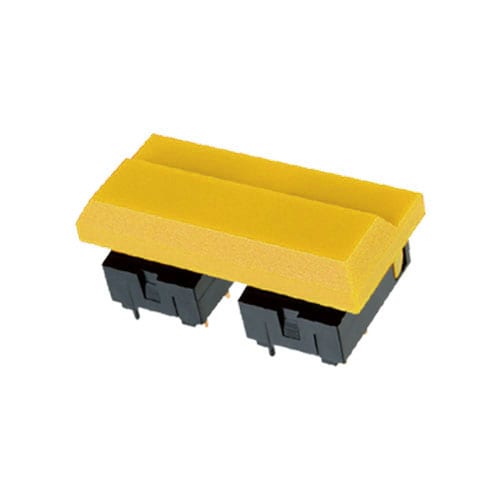

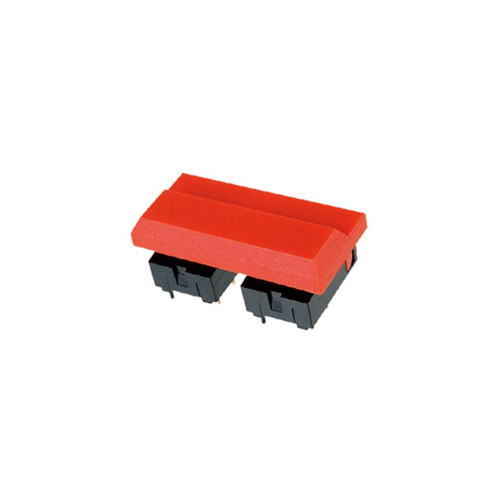

This PCB Push Button Switch features a double-wide piano style cap with single or dual LED illuminated lamps, and a tactile ‘clicky’ feel. Cap available in 8 different colours.

Key Features:

  • LED illuminated rocker switch
  • Momentary function
  • Up to 2 large (3mm), LED’s per switch
  • Three sizes, 12.4mm/17.3mm/35mm (width) x 17.2mm (length)
  • Standard, wide or double width caps are available

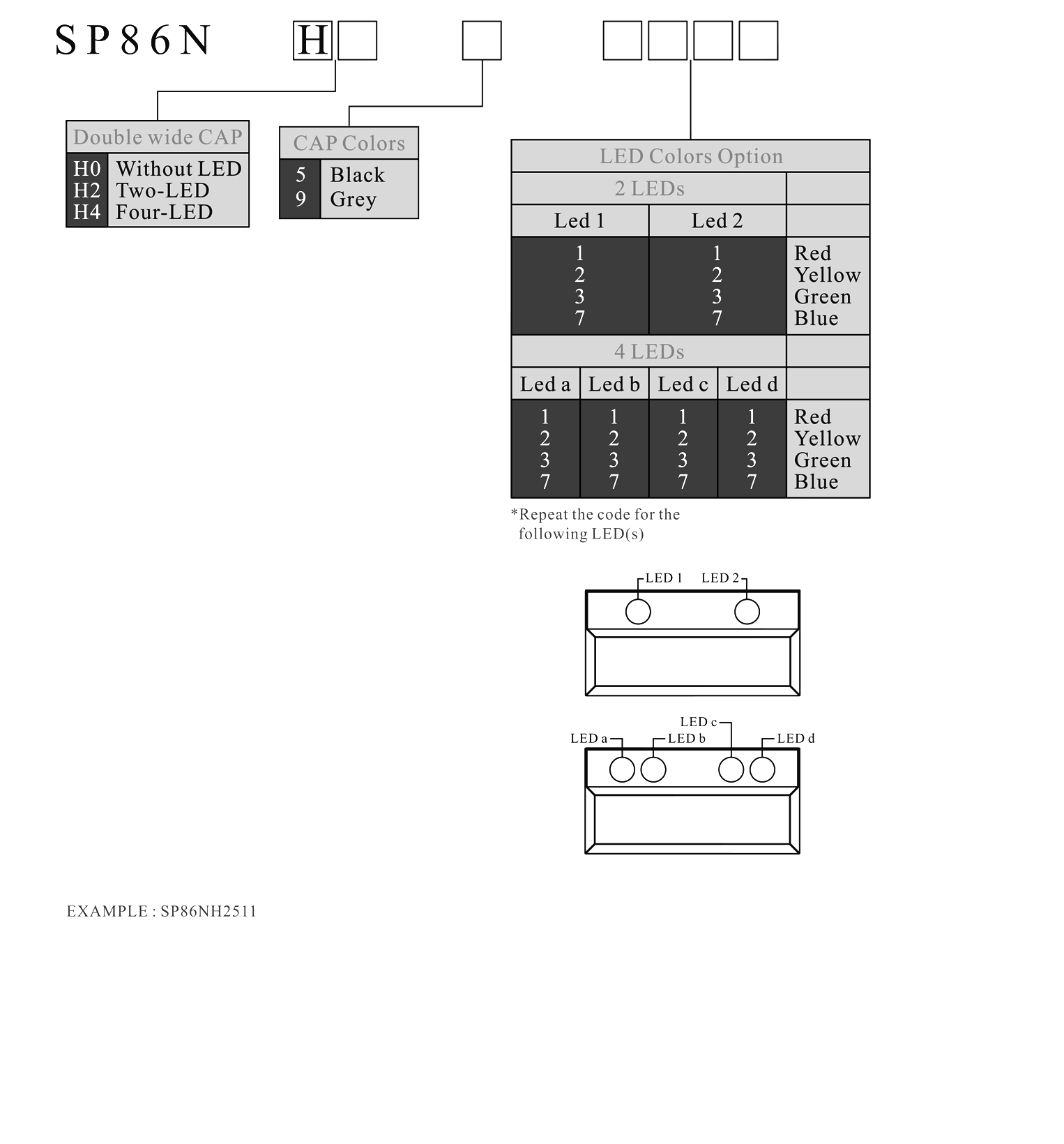

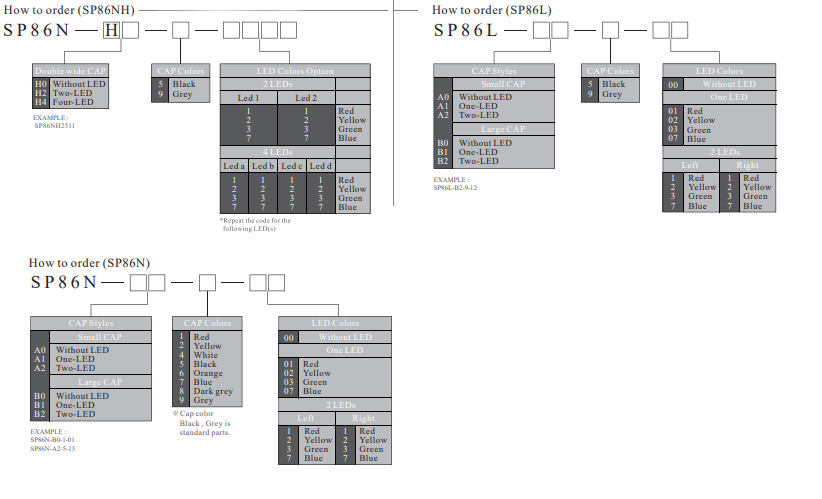

Product Series

Configuration

Single LED options

, , , , ,

Function

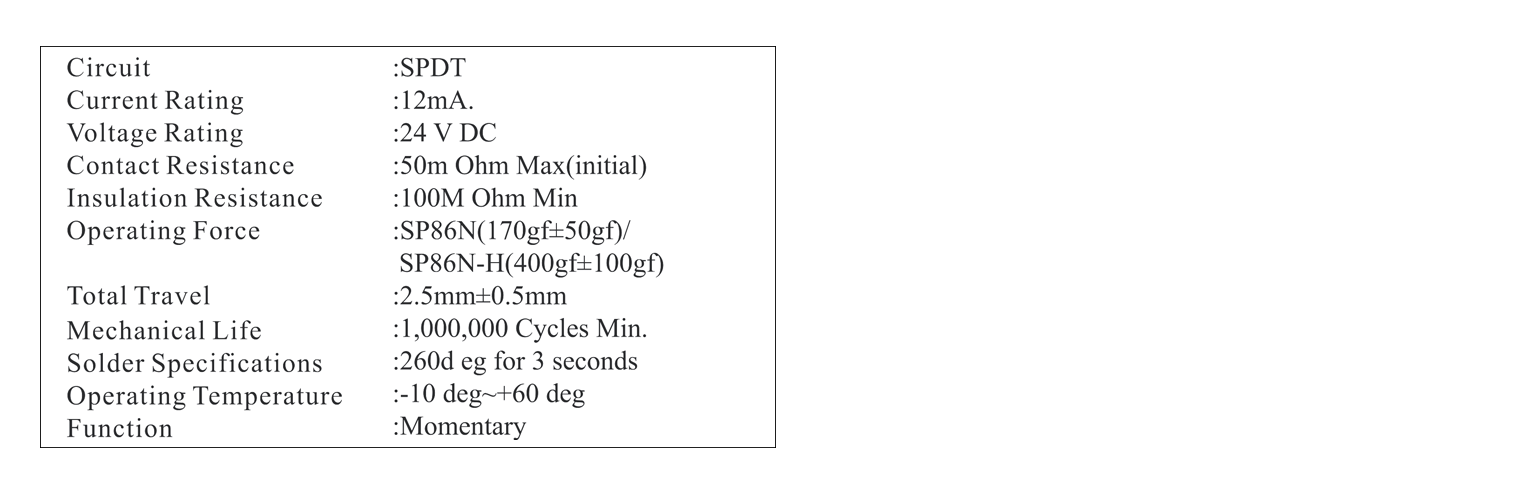

SP86N Series Specification

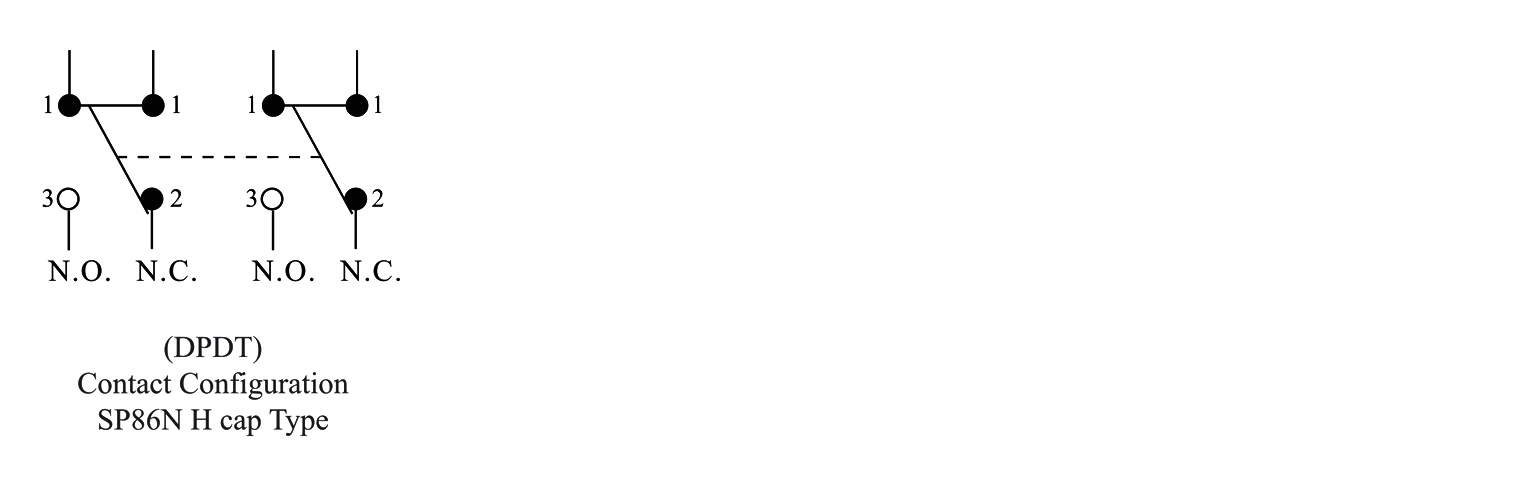

Circuit SPDT
Current rating 12mA
Voltage rating 24 VDC
Contact resistance 50mOhm max.(initial)
Insulation resistance 100MOhm min
Operating force SP86N(170gf+50gf)/SP86N-H(400gf+100gf)
Total travel 2.3mm+0.5mm
Mechanical life 1,000,000 cycles min
Solder specifications 260deg for 3 seconds
Operating temperature -10deg~+60deg
Function Momentary

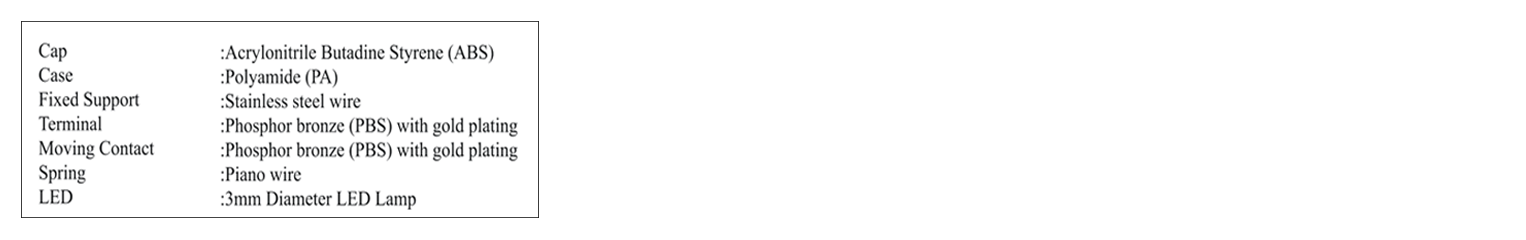

SP86N Series Materials



Cap Acrylonitrile Butadine Styrene (ABS)
Case Polyamide (PA)
Fixed support Stainless steel wire
Terminal Phosphor bronze (PBS) with gold plating
Movable contacts Phosphor bronze (PBS) with gold plating
Spring Piano wire
LED 3mm diameter LED lamp

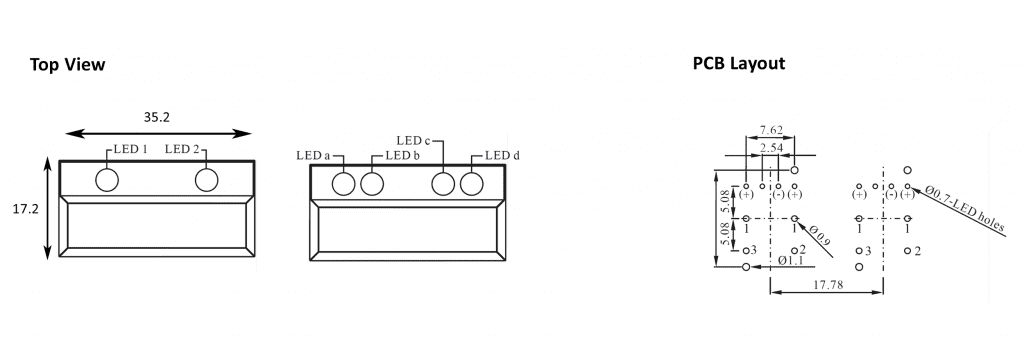

Drawing for illuminated push button switches, rjs electronics ltd
